CCE-04604-S15 (Each)

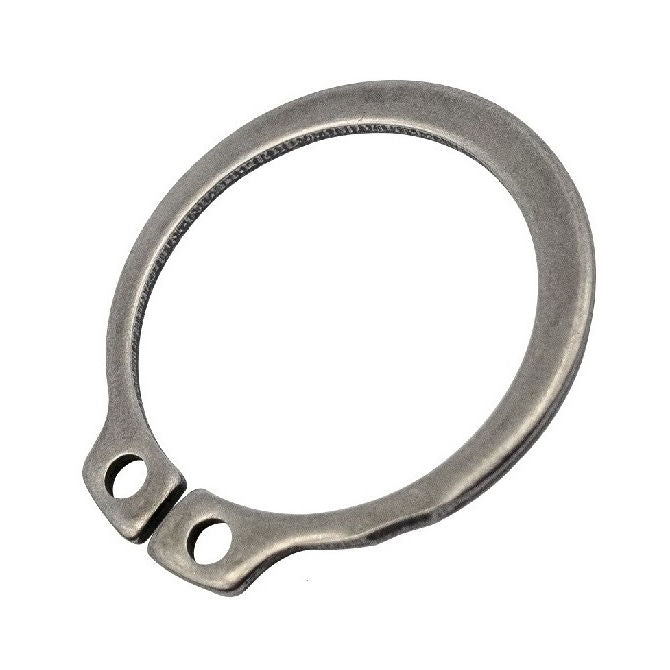

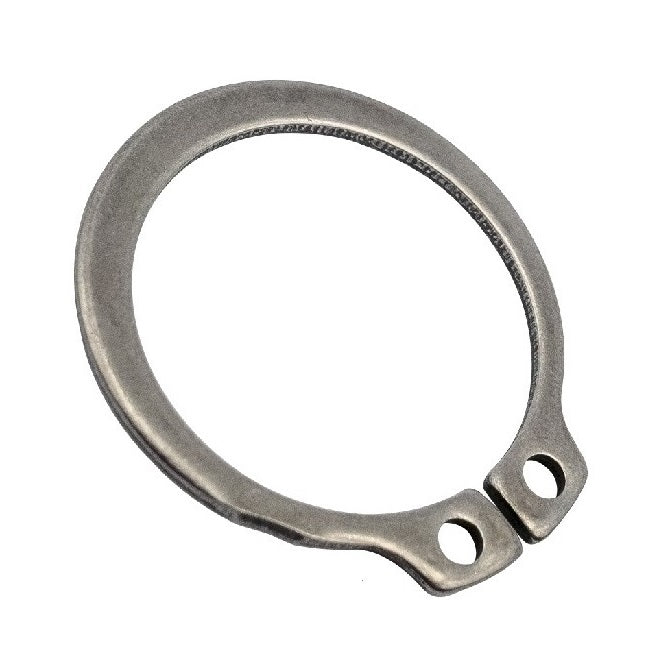

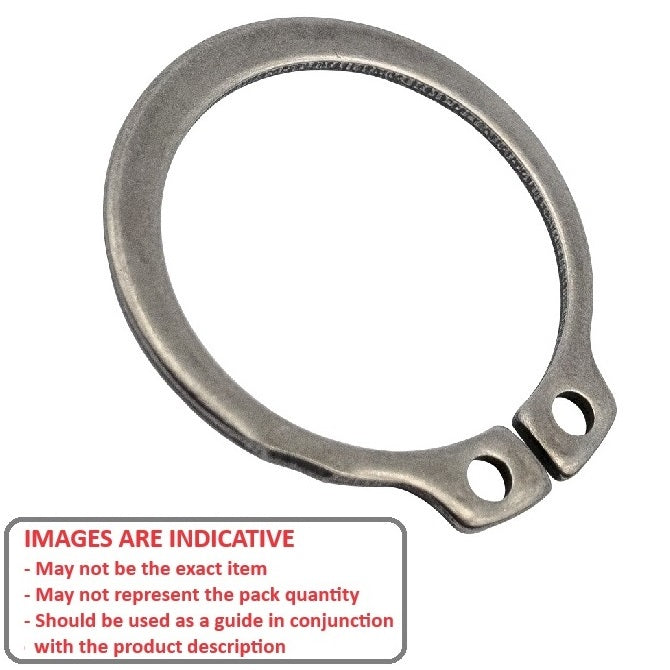

External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more
for $15.91 AUD Each
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Product Details
Additional stock available from USA subject to Prior Sale = 271
Shaft Diameter (Ds): 46.04mm
(46.04mm is 1.813 in.)
Stainless Steel Grade PH15-7 Mo
- Shaft Diameter (Ds): 46.04mm
(46.04mm is 1.813 in.)
- Clip Thickness (T): 1.57mm
+/- 0.076
(1.57mm is 0.062 in.)
- Groove Dia. (Dg): 43.40mm
+/- 0.127
(43.40mm is 1.709 in.)
- Approx. Loose Circlip ID (A): 42.60mm
- Groove Width (W): 1.70mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91590A143
- Huyett® SH-181-SS
- NoCor® SH-181-SS
- SH181SS
- N14000181KSF
- N1400-0181KSF
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE04604S15, CCE04604
