Collection: Retaining Rings - External - Circlips - Standard - Carbon Steel

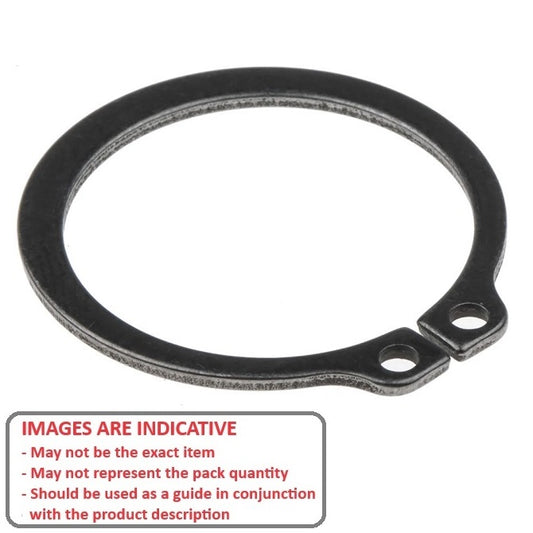

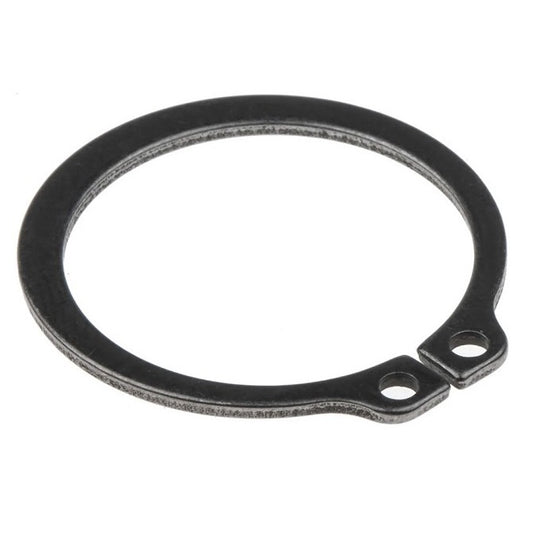

Retaining Rings -> External -> Circlips -> Standard -> Carbon Steel

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm		Groove Width (W) 1.85 mm
Material: Carbon Steel Clearance on Shaft (C1): 59.10 mm Clearance in Groove (C1): 55.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-C (5 Pcs) External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Steel Circlip 36 units (180 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.93 AUD~~ Sale price $4.23 AUD Unit price per Per 5 Quantity Required 36 units (180 pcs) Available Now. Backorder if more than 36.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm
Material: Carbon Steel Groove Width (W): 1.85 mm Clearance on Shaft (C1): 59.10 mm Clearance in Groove (C1): 55.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-C (5 Pcs) External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Steel Circlip 36 units (180 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.93 AUD~~ Sale price $4.23 AUD Unit price per Per 5 Quantity Required 36 units (180 pcs) Available Now. Backorder if more than 36.
CCE-04500-C (5 Pcs) --- External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Steel Circlip Sale CCE-04500-C (5 Pcs) --- External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Steel Circlip Regular price $4.23 AUD Regular price ~~$7.93 AUD~~ Sale price $4.23 AUD Unit price per 36 Available Now Sale
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.25} (Equiv. 0.098 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.07} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm		Groove Width (W) 2.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 61.00 mm Clearance in Groove (C1): 57.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-04500H-C (5 Pcs) External Retaining Rings - 45x2.5x42.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.25} (Equiv. 0.098 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.07} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm
Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 61.00 mm Clearance in Groove (C1): 57.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-04500H-C (5 Pcs) External Retaining Rings - 45x2.5x42.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCE-04500H-C (5 Pcs) --- External Retaining Rings - 45x2.5x42.5 mm Circlips - Carbon Steel Circlip Sale CCE-04500H-C (5 Pcs) --- External Retaining Rings - 45x2.5x42.5 mm Circlips - Carbon Steel Circlip Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.39 mm _{+/- 0.076} (Equiv. 1.669 in.)	Approx. Loose Circlip ID (A) 41.58 mm		Groove Width (W) 1.73 mm
Material: Carbon Steel Clearance on Shaft (C1): 55.63 mm Clearance in Groove (C1): 53.09 mm Min. Lug Diameter (h): 2.54 mm Min. Extension (n): 4.12 Standard: MIL-16624
Part Number: CCE-04501-C (5 Pcs) External Retaining Rings - 45.01x1.57x42.39 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.39 mm _{+/- 0.076} (Equiv. 1.669 in.)	Approx. Loose Circlip ID (A) 41.58 mm
Material: Carbon Steel Groove Width (W): 1.73 mm Clearance on Shaft (C1): 55.63 mm Clearance in Groove (C1): 53.09 mm Min. Lug Diameter (h): 2.54 mm Min. Extension (n): 4.12 Standard: MIL-16624
Part Number: CCE-04501-C (5 Pcs) External Retaining Rings - 45.01x1.57x42.39 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCE-04501-C (5 Pcs) --- External Retaining Rings - 45.01x1.57x42.39 mm Circlips - Carbon Steel Circlip Sale CCE-04501-C (5 Pcs) --- External Retaining Rings - 45.01x1.57x42.39 mm Circlips - Carbon Steel Circlip Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 46.00 mm (Equiv. 1.811 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 43.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.713 in.)	Approx. Loose Circlip ID (A) 42.50 mm		Groove Width (W) 1.85 mm
Material: Carbon Steel Clearance on Shaft (C1): 60.10 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04600-C (50 Pcs) External Retaining Rings - 46x1.75x43.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $52.95 AUD Regular price ~~$63.55 AUD~~ Sale price $52.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 46.00 mm (Equiv. 1.811 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 43.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.713 in.)	Approx. Loose Circlip ID (A) 42.50 mm
Material: Carbon Steel Groove Width (W): 1.85 mm Clearance on Shaft (C1): 60.10 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04600-C (50 Pcs) External Retaining Rings - 46x1.75x43.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $52.95 AUD Regular price ~~$63.55 AUD~~ Sale price $52.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCE-04600-C (50 Pcs) --- External Retaining Rings - 46x1.75x43.5 mm Circlips - Carbon Steel Circlip Sale CCE-04600-C (50 Pcs) --- External Retaining Rings - 46x1.75x43.5 mm Circlips - Carbon Steel Circlip Regular price $52.95 AUD Regular price ~~$63.55 AUD~~ Sale price $52.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 47.00 mm (Equiv. 1.85 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 44.45 mm _{+ 0.00 / - 0.06} (Equiv. 1.75 in.)	Approx. Loose Circlip ID (A) 43.50 mm		Groove Width (W) 1.85 mm
Material: Carbon Steel Clearance on Shaft (C1): 61.30 mm Clearance in Groove (C1): 58.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04700-C (2 Pcs) External Retaining Rings - 47x1.75x44.45 mm Circlips - Carbon Steel Circlip 50 units (100 pcs) Available Now \| Further orders can be expected around Wed, Oct 15, 2025 Regular price $1.86 AUD Regular price ~~$3.48 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 50 units (100 pcs) Available Now. Backorder if more than 50.
Shaft Diameter (Ds) 47.00 mm (Equiv. 1.85 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 44.45 mm _{+ 0.00 / - 0.06} (Equiv. 1.75 in.)	Approx. Loose Circlip ID (A) 43.50 mm
Material: Carbon Steel Groove Width (W): 1.85 mm Clearance on Shaft (C1): 61.30 mm Clearance in Groove (C1): 58.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04700-C (2 Pcs) External Retaining Rings - 47x1.75x44.45 mm Circlips - Carbon Steel Circlip 50 units (100 pcs) Available Now \| Further orders can be expected around Wed, Oct 15, 2025 Regular price $1.86 AUD Regular price ~~$3.48 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 50 units (100 pcs) Available Now. Backorder if more than 50.
CCE-04700-C (2 Pcs) --- External Retaining Rings - 47x1.75x44.45 mm Circlips - Carbon Steel Circlip Sale CCE-04700-C (2 Pcs) --- External Retaining Rings - 47x1.75x44.45 mm Circlips - Carbon Steel Circlip Regular price $1.86 AUD Regular price ~~$3.48 AUD~~ Sale price $1.86 AUD Unit price per 50 Available Now Sale
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.40 mm _{+/- 0.076} (Equiv. 1.709 in.)	Approx. Loose Circlip ID (A) 42.60 mm		Groove Width (W) 1.70 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-04604-C (7 Pcs) External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.40 mm _{+/- 0.076} (Equiv. 1.709 in.)	Approx. Loose Circlip ID (A) 42.60 mm
Material: Carbon Steel Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04604-C (7 Pcs) External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
CCE-04604-C (7 Pcs) --- External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Carbon Steel Circlip Sale CCE-04604-C (7 Pcs) --- External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Carbon Steel Circlip Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.93 mm _{+/- 0.076} (Equiv. 1.769 in.)	Approx. Loose Circlip ID (A) 44.07 mm		Groove Width (W) 1.73 mm
Material: Carbon Steel Clearance on Shaft (C1): 58.17 mm Clearance in Groove (C1): 55.63 mm Min. Lug Diameter (h): 2.54 mm Min. Extension (n): 4.22 Standard: MIL-16624
Part Number: CCE-04763-C (6 Pcs) External Retaining Rings - 47.63x1.57x44.93 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.93 mm _{+/- 0.076} (Equiv. 1.769 in.)	Approx. Loose Circlip ID (A) 44.07 mm
Material: Carbon Steel Groove Width (W): 1.73 mm Clearance on Shaft (C1): 58.17 mm Clearance in Groove (C1): 55.63 mm Min. Lug Diameter (h): 2.54 mm Min. Extension (n): 4.22 Standard: MIL-16624
Part Number: CCE-04763-C (6 Pcs) External Retaining Rings - 47.63x1.57x44.93 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Per 6 Quantity Required Backorder: Out of Stock.
CCE-04763-C (6 Pcs) --- External Retaining Rings - 47.63x1.57x44.93 mm Circlips - Carbon Steel Circlip Sale CCE-04763-C (6 Pcs) --- External Retaining Rings - 47.63x1.57x44.93 mm Circlips - Carbon Steel Circlip Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 48.00 mm (Equiv. 1.89 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 45.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.791 in.)	Approx. Loose Circlip ID (A) 44.50 mm		Groove Width (W) 1.85 mm
Material: Carbon Steel Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-C (5 Pcs) External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Steel Circlip 20 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price ~~$8.68 AUD~~ Sale price $4.59 AUD Unit price per Per 5 Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
Shaft Diameter (Ds) 48.00 mm (Equiv. 1.89 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 45.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.791 in.)	Approx. Loose Circlip ID (A) 44.50 mm
Material: Carbon Steel Groove Width (W): 1.85 mm Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-C (5 Pcs) External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Steel Circlip 20 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price ~~$8.68 AUD~~ Sale price $4.59 AUD Unit price per Per 5 Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
CCE-04800-C (5 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Steel Circlip Sale CCE-04800-C (5 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Steel Circlip Regular price $4.59 AUD Regular price ~~$8.68 AUD~~ Sale price $4.59 AUD Unit price per 20 Available Now Sale
Shaft Diameter (Ds) 49.23 mm (Equiv. 1.938 in.)	Clip Thickness (T) 3.18 mm _{+ 0.076 / - 0.102} (Equiv. 0.125 in.)	Groove Dia. (Dg) 46.38 mm _{+/- 0.102} (Equiv. 1.826 in.)	Approx. Loose Circlip ID (A) 45.26 mm		Groove Width (W) 3.53 mm
Material: Carbon Steel Clearance on Shaft (C1): 62.74 mm Clearance in Groove (C1): 59.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.52 Standard: MIL-3217
Part Number: CCE-04923H-C External Retaining Rings - 49.23x3.18x46.38 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 49.23 mm (Equiv. 1.938 in.)	Clip Thickness (T) 3.18 mm _{+ 0.076 / - 0.102} (Equiv. 0.125 in.)	Groove Dia. (Dg) 46.38 mm _{+/- 0.102} (Equiv. 1.826 in.)	Approx. Loose Circlip ID (A) 45.26 mm
Material: Carbon Steel Groove Width (W): 3.53 mm Clearance on Shaft (C1): 62.74 mm Clearance in Groove (C1): 59.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.52 Standard: MIL-3217
Part Number: CCE-04923H-C External Retaining Rings - 49.23x3.18x46.38 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04923H-C --- External Retaining Rings - 49.23x3.18x46.38 mm Circlips - Carbon Steel Circlip Sale CCE-04923H-C --- External Retaining Rings - 49.23x3.18x46.38 mm Circlips - Carbon Steel Circlip Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 47.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.85 in.)	Approx. Loose Circlip ID (A) 45.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 64.50 mm Clearance in Groove (C1): 60.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-C (2 Pcs) External Retaining Rings - 50x2x47 mm Circlips - Carbon Steel Circlip 46 units (92 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.32 AUD Regular price ~~$4.28 AUD~~ Sale price $2.32 AUD Unit price per Per 2 Quantity Required 46 units (92 pcs) Available Now. Backorder if more than 46.
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 47.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.85 in.)	Approx. Loose Circlip ID (A) 45.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 64.50 mm Clearance in Groove (C1): 60.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-C (2 Pcs) External Retaining Rings - 50x2x47 mm Circlips - Carbon Steel Circlip 46 units (92 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.32 AUD Regular price ~~$4.28 AUD~~ Sale price $2.32 AUD Unit price per Per 2 Quantity Required 46 units (92 pcs) Available Now. Backorder if more than 46.
CCE-05000-C (2 Pcs) --- External Retaining Rings - 50x2x47 mm Circlips - Carbon Steel Circlip Sale CCE-05000-C (2 Pcs) --- External Retaining Rings - 50x2x47 mm Circlips - Carbon Steel Circlip Regular price $2.32 AUD Regular price ~~$4.28 AUD~~ Sale price $2.32 AUD Unit price per 46 Available Now Sale
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.118 in.)	Groove Dia. (Dg) 47.00 mm _{+ 0.00 / - 0.08} (Equiv. 1.85 in.)	Approx. Loose Circlip ID (A) 45.60 mm		Groove Width (W) 3.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 67.00 mm Clearance in Groove (C1): 63.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-05000H-C (4 Pcs) External Retaining Rings - 50x3x47 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.118 in.)	Groove Dia. (Dg) 47.00 mm _{+ 0.00 / - 0.08} (Equiv. 1.85 in.)	Approx. Loose Circlip ID (A) 45.60 mm
Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 67.00 mm Clearance in Groove (C1): 63.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-05000H-C (4 Pcs) External Retaining Rings - 50x3x47 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCE-05000H-C (4 Pcs) --- External Retaining Rings - 50x3x47 mm Circlips - Carbon Steel Circlip Sale CCE-05000H-C (4 Pcs) --- External Retaining Rings - 50x3x47 mm Circlips - Carbon Steel Circlip Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.01 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.20 mm _{+/- 0.076} (Equiv. 1.858 in.)	Approx. Loose Circlip ID (A) 46.20 mm		Groove Width (W) 1.70 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-05001-C (7 Pcs) External Retaining Rings - 50.01x1.57x47.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.01 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.20 mm _{+/- 0.076} (Equiv. 1.858 in.)	Approx. Loose Circlip ID (A) 46.20 mm
Material: Carbon Steel Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-05001-C (7 Pcs) External Retaining Rings - 50.01x1.57x47.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
CCE-05001-C (7 Pcs) --- External Retaining Rings - 50.01x1.57x47.2 mm Circlips - Carbon Steel Circlip Sale CCE-05001-C (7 Pcs) --- External Retaining Rings - 50.01x1.57x47.2 mm Circlips - Carbon Steel Circlip Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.152} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.90 mm _{+/- 0.076} (Equiv. 1.886 in.)	Approx. Loose Circlip ID (A) 46.99 mm		Groove Width (W) 1.73 mm
Material: Carbon Steel Clearance on Shaft (C1): 62.99 mm Clearance in Groove (C1): 59.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.52 Standard: MIL-16624
Part Number: CCE-05080-C (7 Pcs) External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.152} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.90 mm _{+/- 0.076} (Equiv. 1.886 in.)	Approx. Loose Circlip ID (A) 46.99 mm
Material: Carbon Steel Groove Width (W): 1.73 mm Clearance on Shaft (C1): 62.99 mm Clearance in Groove (C1): 59.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.52 Standard: MIL-16624
Part Number: CCE-05080-C (7 Pcs) External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
CCE-05080-C (7 Pcs) --- External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Carbon Steel Circlip Sale CCE-05080-C (7 Pcs) --- External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Carbon Steel Circlip Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 3.18 mm _{+ 0.076 / - 0.102} (Equiv. 0.125 in.)	Groove Dia. (Dg) 47.75 mm _{+/- 0.102} (Equiv. 1.88 in.)	Approx. Loose Circlip ID (A) 46.74 mm		Groove Width (W) 3.53 mm
Material: Carbon Steel Clearance on Shaft (C1): 64.26 mm Clearance in Groove (C1): 61.21 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.57 Standard: MIL-3217
Part Number: CCE-05080H-C (2 Pcs) External Retaining Rings - 50.8x3.18x47.75 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 3.18 mm _{+ 0.076 / - 0.102} (Equiv. 0.125 in.)	Groove Dia. (Dg) 47.75 mm _{+/- 0.102} (Equiv. 1.88 in.)	Approx. Loose Circlip ID (A) 46.74 mm
Material: Carbon Steel Groove Width (W): 3.53 mm Clearance on Shaft (C1): 64.26 mm Clearance in Groove (C1): 61.21 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.57 Standard: MIL-3217
Part Number: CCE-05080H-C (2 Pcs) External Retaining Rings - 50.8x3.18x47.75 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
CCE-05080H-C (2 Pcs) --- External Retaining Rings - 50.8x3.18x47.75 mm Circlips - Carbon Steel Circlip Sale CCE-05080H-C (2 Pcs) --- External Retaining Rings - 50.8x3.18x47.75 mm Circlips - Carbon Steel Circlip Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 52.00 mm (Equiv. 2.047 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 49.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.929 in.)	Approx. Loose Circlip ID (A) 47.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 66.70 mm Clearance in Groove (C1): 63.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05200-C (2 Pcs) External Retaining Rings - 52x2x49 mm Circlips - Carbon Steel Circlip 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
Shaft Diameter (Ds) 52.00 mm (Equiv. 2.047 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 49.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.929 in.)	Approx. Loose Circlip ID (A) 47.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 66.70 mm Clearance in Groove (C1): 63.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05200-C (2 Pcs) External Retaining Rings - 52x2x49 mm Circlips - Carbon Steel Circlip 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
CCE-05200-C (2 Pcs) --- External Retaining Rings - 52x2x49 mm Circlips - Carbon Steel Circlip Sale CCE-05200-C (2 Pcs) --- External Retaining Rings - 52x2x49 mm Circlips - Carbon Steel Circlip Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per 18 Available Now Sale
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 49.43 mm _{+/- 0.076} (Equiv. 1.946 in.)	Approx. Loose Circlip ID (A) 48.40 mm		Groove Width (W) 2.18 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-05239-C External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Carbon Steel Circlip 28 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 28 Available Now. Backorder if more than 28.
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 49.43 mm _{+/- 0.076} (Equiv. 1.946 in.)	Approx. Loose Circlip ID (A) 48.40 mm
Material: Carbon Steel Groove Width (W): 2.18 mm Standard: MIL-16624
Part Number: CCE-05239-C External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Carbon Steel Circlip 28 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 28 Available Now. Backorder if more than 28.
CCE-05239-C --- External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Carbon Steel Circlip CCE-05239-C --- External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Carbon Steel Circlip Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 28 Available Now
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.88 mm _{+/- 0.076} (Equiv. 2.003 in.)	Approx. Loose Circlip ID (A) 49.89 mm		Groove Width (W) 2.18 mm
Material: Carbon Steel Clearance on Shaft (C1): 66.29 mm Clearance in Groove (C1): 62.99 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.88 Standard: MIL-16624
Part Number: CCE-05398-C (5 Pcs) External Retaining Rings - 53.98x1.98x50.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.88 mm _{+/- 0.076} (Equiv. 2.003 in.)	Approx. Loose Circlip ID (A) 49.89 mm
Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 66.29 mm Clearance in Groove (C1): 62.99 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 4.88 Standard: MIL-16624
Part Number: CCE-05398-C (5 Pcs) External Retaining Rings - 53.98x1.98x50.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCE-05398-C (5 Pcs) --- External Retaining Rings - 53.98x1.98x50.88 mm Circlips - Carbon Steel Circlip Sale CCE-05398-C (5 Pcs) --- External Retaining Rings - 53.98x1.98x50.88 mm Circlips - Carbon Steel Circlip Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 54.00 mm (Equiv. 2.126 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 51.00 mm _{+ 0.00 / - 0.06} (Equiv. 2.008 in.)	Approx. Loose Circlip ID (A) 49.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 69.00 mm Clearance in Groove (C1): 65.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05400-C (2 Pcs) External Retaining Rings - 54x2x51 mm Circlips - Carbon Steel Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds) 54.00 mm (Equiv. 2.126 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 51.00 mm _{+ 0.00 / - 0.06} (Equiv. 2.008 in.)	Approx. Loose Circlip ID (A) 49.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 69.00 mm Clearance in Groove (C1): 65.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05400-C (2 Pcs) External Retaining Rings - 54x2x51 mm Circlips - Carbon Steel Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCE-05400-C (2 Pcs) --- External Retaining Rings - 54x2x51 mm Circlips - Carbon Steel Circlip Sale CCE-05400-C (2 Pcs) --- External Retaining Rings - 54x2x51 mm Circlips - Carbon Steel Circlip Regular price $2.41 AUD Regular price ~~$4.42 AUD~~ Sale price $2.41 AUD Unit price per 12 Available Now Sale
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.61 mm _{+/- 0.076} (Equiv. 2.032 in.)	Approx. Loose Circlip ID (A) 50.60 mm		Groove Width (W) 2.18 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-05477-C (4 Pcs) External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.61 mm _{+/- 0.076} (Equiv. 2.032 in.)	Approx. Loose Circlip ID (A) 50.60 mm
Material: Carbon Steel Groove Width (W): 2.18 mm Standard: MIL-16624
Part Number: CCE-05477-C (4 Pcs) External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCE-05477-C (4 Pcs) --- External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Carbon Steel Circlip Sale CCE-05477-C (4 Pcs) --- External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Carbon Steel Circlip Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 55.00 mm (Equiv. 2.165 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 52.00 mm _{+ 0.00 / - 0.06} (Equiv. 2.047 in.)	Approx. Loose Circlip ID (A) 50.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 70.20 mm Clearance in Groove (C1): 66.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05500-C (2 Pcs) External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip 30 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 Quantity Required 30 units (60 pcs) Available Now. Backorder if more than 30.
Shaft Diameter (Ds) 55.00 mm (Equiv. 2.165 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 52.00 mm _{+ 0.00 / - 0.06} (Equiv. 2.047 in.)	Approx. Loose Circlip ID (A) 50.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 70.20 mm Clearance in Groove (C1): 66.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05500-C (2 Pcs) External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip 30 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 Quantity Required 30 units (60 pcs) Available Now. Backorder if more than 30.
CCE-05500-C (2 Pcs) --- External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip CCE-05500-C (2 Pcs) --- External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 55.00 mm (Equiv. 2.165 in.)	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.118 in.)	Groove Dia. (Dg) 52.00 mm _{+ 0.00 / - 0.08} (Equiv. 2.047 in.)	Approx. Loose Circlip ID (A) 50.80 mm		Groove Width (W) 3.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 73.00 mm Clearance in Groove (C1): 69.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-05500H-C (4 Pcs) External Retaining Rings - 55x3x52 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 55.00 mm (Equiv. 2.165 in.)	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.118 in.)	Groove Dia. (Dg) 52.00 mm _{+ 0.00 / - 0.08} (Equiv. 2.047 in.)	Approx. Loose Circlip ID (A) 50.80 mm
Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 73.00 mm Clearance in Groove (C1): 69.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-05500H-C (4 Pcs) External Retaining Rings - 55x3x52 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCE-05500H-C (4 Pcs) --- External Retaining Rings - 55x3x52 mm Circlips - Carbon Steel Circlip Sale CCE-05500H-C (4 Pcs) --- External Retaining Rings - 55x3x52 mm Circlips - Carbon Steel Circlip Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 56.00 mm (Equiv. 2.205 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.079 in.)	Groove Dia. (Dg) 53.00 mm _{+ 0.00 / - 0.07} (Equiv. 2.087 in.)	Approx. Loose Circlip ID (A) 51.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 71.60 mm Clearance in Groove (C1): 67.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05600-C (7 Pcs) External Retaining Rings - 56x2x53 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 56.00 mm (Equiv. 2.205 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.079 in.)	Groove Dia. (Dg) 53.00 mm _{+ 0.00 / - 0.07} (Equiv. 2.087 in.)	Approx. Loose Circlip ID (A) 51.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 71.60 mm Clearance in Groove (C1): 67.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05600-C (7 Pcs) External Retaining Rings - 56x2x53 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
CCE-05600-C (7 Pcs) --- External Retaining Rings - 56x2x53 mm Circlips - Carbon Steel Circlip Sale CCE-05600-C (7 Pcs) --- External Retaining Rings - 56x2x53 mm Circlips - Carbon Steel Circlip Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 57.00 mm (Equiv. 2.244 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.079 in.)	Groove Dia. (Dg) 54.00 mm _{+ 0.00 / - 0.07} (Equiv. 2.126 in.)	Approx. Loose Circlip ID (A) 52.80 mm		Groove Width (W) 2.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 68.60 mm Clearance in Groove (C1): 72.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05700-C (250 Pcs) External Retaining Rings - 57x2x54 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $603.59 AUD Regular price Sale price $603.59 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 57.00 mm (Equiv. 2.244 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.30} (Equiv. 0.079 in.)	Groove Dia. (Dg) 54.00 mm _{+ 0.00 / - 0.07} (Equiv. 2.126 in.)	Approx. Loose Circlip ID (A) 52.80 mm
Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 68.60 mm Clearance in Groove (C1): 72.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05700-C (250 Pcs) External Retaining Rings - 57x2x54 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $603.59 AUD Regular price Sale price $603.59 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCE-05700-C (250 Pcs) --- External Retaining Rings - 57x2x54 mm Circlips - Carbon Steel Circlip CCE-05700-C (250 Pcs) --- External Retaining Rings - 57x2x54 mm Circlips - Carbon Steel Circlip Regular price $603.59 AUD Regular price Sale price $603.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm (Equiv. 2.25 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 53.85 mm _{+/- 0.076} (Equiv. 2.12 in.)	Approx. Loose Circlip ID (A) 52.86 mm		Groove Width (W) 2.18 mm
Material: Carbon Steel Clearance on Shaft (C1): 72.90 mm Clearance in Groove (C1): 69.60 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.18 Standard: MIL-16624
Part Number: CCE-05715-C (4 Pcs) External Retaining Rings - 57.15x1.98x53.85 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 57.15 mm (Equiv. 2.25 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 53.85 mm _{+/- 0.076} (Equiv. 2.12 in.)	Approx. Loose Circlip ID (A) 52.86 mm
Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 72.90 mm Clearance in Groove (C1): 69.60 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.18 Standard: MIL-16624
Part Number: CCE-05715-C (4 Pcs) External Retaining Rings - 57.15x1.98x53.85 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCE-05715-C (4 Pcs) --- External Retaining Rings - 57.15x1.98x53.85 mm Circlips - Carbon Steel Circlip Sale CCE-05715-C (4 Pcs) --- External Retaining Rings - 57.15x1.98x53.85 mm Circlips - Carbon Steel Circlip Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
