CCE-05000H-C (PK-4)

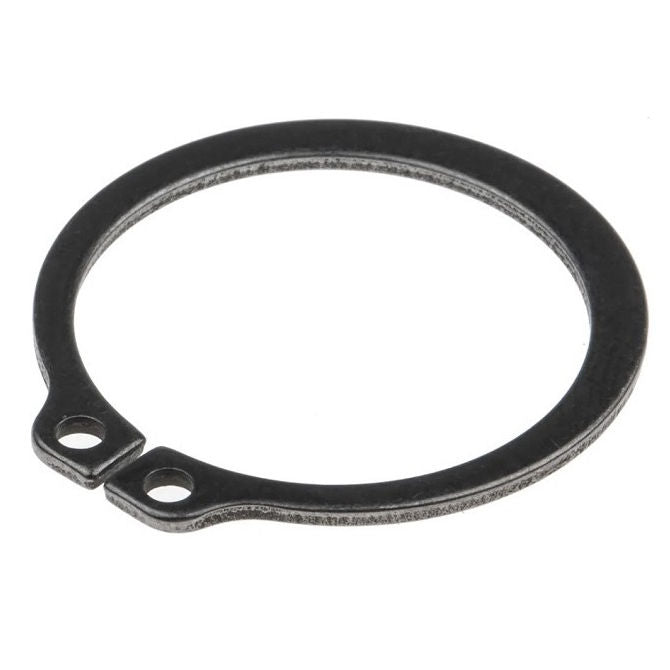

External Retaining Rings - 50x3x47 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 4 (200 pcs)
for $9.29 AUD per 4 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 634
Shaft Diameter (Ds): 50.00mm
(50.00mm is 1.969 in.)
Carbon Steel
- Shaft Diameter (Ds): 50.00mm
(50.00mm is 1.969 in.)
- Clip Thickness (T): 3.00mm
+ 0.00 / - 0.08
(3.00mm is 0.118 in.)
- Groove Dia. (Dg): 47.00mm
+ 0.00 / - 0.25
(47.00mm is 1.85 in.)
- Approx. Loose Circlip ID (A): 45.60mm
- Groove Width (W): 3.15mm
- Clearance on Shaft (C1): 67.00mm
- Clearance in Groove (C1): 63.00mm
- Min. Lug Diameter (h): 2.50mm
- Min. Extension (n): 4.50
- Standard: Heavy Duty Variation DIN471 table 2
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 90030A128
- Seeger® AS-050
- Seeger® AS50X3
- Bossard® BN821-050
- Huyett® DSHR-050
- Ellison® EXT-050
- BN821050
- D1460-0500
- D14600500APP
- D1460-0500APP
- EXT050
- AS050
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE05000HC, CCE05000H
