CCE-05600-C (PK-7)

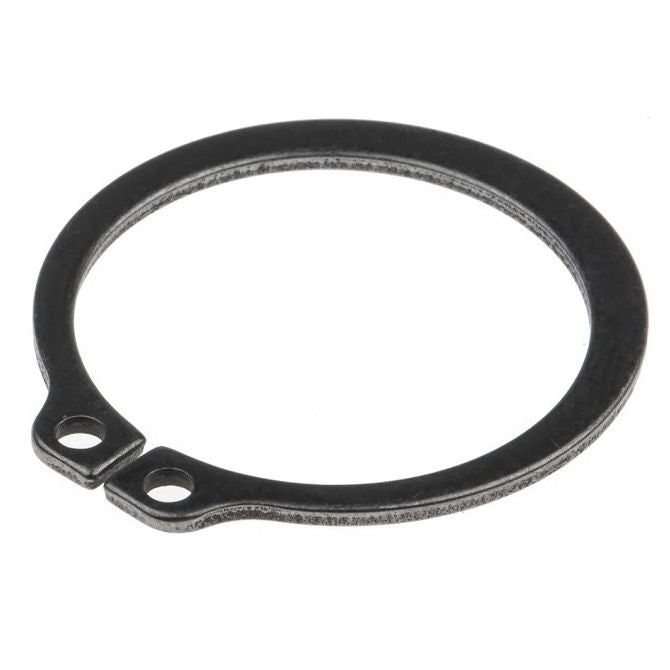

External Retaining Rings - 56x2x53 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 7 (350 pcs)
for $10.59 AUD per 7 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 580
Shaft Diameter (Ds): 56.00mm
(56.00mm is 2.205 in.)
Carbon Steel
- Shaft Diameter (Ds): 56.00mm
(56.00mm is 2.205 in.)
- Clip Thickness (T): 2.00mm
+ 0.00 / - 0.07
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 53.00mm
+ 0.00 / - 0.30
(53.00mm is 2.087 in.)
- Approx. Loose Circlip ID (A): 51.80mm
- Groove Width (W): 2.15mm
- Clearance on Shaft (C1): 71.60mm
- Clearance in Groove (C1): 67.60mm
- Min. Lug Diameter (h): 2.50mm
- Min. Extension (n): 4.50
- Standard: DIN471
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 471-056
- ALTPART
- 98541A464
- Seeger® A-056
- Seeger® A56-ARS
- Seeger® A56X2
- Bossard® BN818-056
- Waldes® D1400-056
- Huyett® DSH-056
- NoCor® DSH-056
- Rotor Clip® DSH-056
- A56ARS
- BN818056
- A056
- D1400-0560
- D14000560APP
- D1400-0560APP
- 471056
- DSH056
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE05600C, CCE05600
