| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

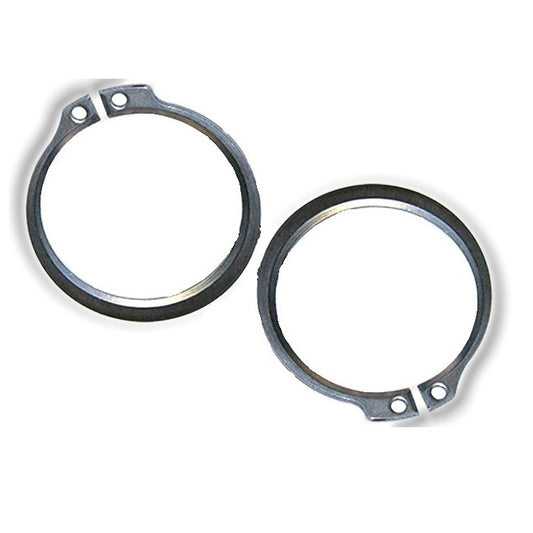

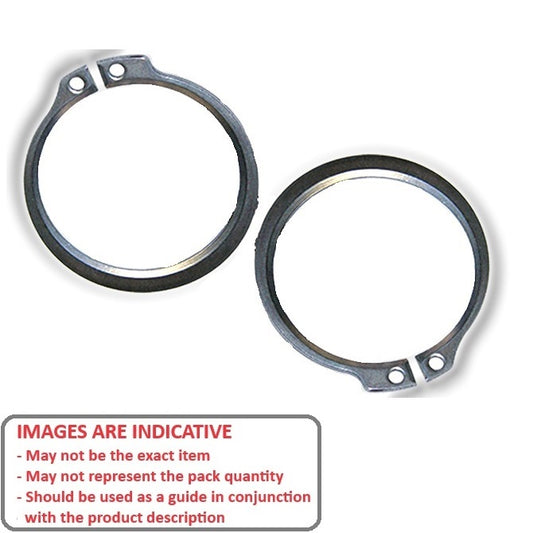

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.18
mm +/- 0.08 (Equiv. 2.212 in.) |
Approx. Loose Circlip ID (A)
55.17
mm + 1.02 / - 0.00 |
Radial Wall (S) min/max
3.02 - 5.69
mm |
Groove Width (W)
1.65
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-06033-C (3 Pcs)
External Retaining Rings - 60.33x1.98x56.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$19.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.18
mm +/- 0.08 (Equiv. 2.212 in.) |
Approx. Loose Circlip ID (A)
55.17
mm + 1.02 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.02 - 5.69 mm Groove Width (W): 1.65 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06033-C (3 Pcs)
External Retaining Rings - 60.33x1.98x56.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$19.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
61.91
mm (Equiv. 2.437 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.66
mm +/- 0.08 (Equiv. 2.27 in.) |
Approx. Loose Circlip ID (A)
56.64
mm + 1.02 / - 0.00 |
Radial Wall (S) min/max
3.05 - 5.79
mm |
Groove Width (W)
1.65
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-06191-C
External Retaining Rings - 61.91x1.98x57.66 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
61.91
mm (Equiv. 2.437 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.66
mm +/- 0.08 (Equiv. 2.27 in.) |
Approx. Loose Circlip ID (A)
56.64
mm + 1.02 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.05 - 5.79 mm Groove Width (W): 1.65 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06191-C
External Retaining Rings - 61.91x1.98x57.66 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.13
mm +/- 0.08 (Equiv. 2.328 in.) |
Approx. Loose Circlip ID (A)
58.12
mm + 1.02 / - 0.00 |
Radial Wall (S) min/max
3.10 - 5.89
mm |
Groove Width (W)
1.63
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-06350-C (2 Pcs)
External Retaining Rings - 63.5x1.98x59.13 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$17.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.13
mm +/- 0.08 (Equiv. 2.328 in.) |
Approx. Loose Circlip ID (A)
58.12
mm + 1.02 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.10 - 5.89 mm Groove Width (W): 1.63 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06350-C (2 Pcs)
External Retaining Rings - 63.5x1.98x59.13 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$17.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.88
mm +/- 0.08 (Equiv. 2.397 in.) |
Approx. Loose Circlip ID (A)
59.61
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.18 - 6.05
mm |
Groove Width (W)
1.63
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-06500-C (50 Pcs)
External Retaining Rings - 65x1.98x60.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$612.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.88
mm +/- 0.08 (Equiv. 2.397 in.) |
Approx. Loose Circlip ID (A)
59.61
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.18 - 6.05 mm Groove Width (W): 1.63 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06500-C (50 Pcs)
External Retaining Rings - 65x1.98x60.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$612.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.18
mm +/- 0.08 (Equiv. 2.448 in.) |
Approx. Loose Circlip ID (A)
60.91
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.23 - 6.15
mm |
Groove Width (W)
1.63
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-06668-C
External Retaining Rings - 66.68x1.98x62.18 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.18
mm +/- 0.08 (Equiv. 2.448 in.) |
Approx. Loose Circlip ID (A)
60.91
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.23 - 6.15 mm Groove Width (W): 1.63 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06668-C
External Retaining Rings - 66.68x1.98x62.18 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
68.26
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.63
mm +/- 0.08 (Equiv. 2.505 in.) |
Approx. Loose Circlip ID (A)
62.36
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.28 - 6.25
mm |
Groove Width (W)
1.63
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-06826-C (5 Pcs)
External Retaining Rings - 68.26x1.98x63.63 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$594.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
68.26
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.98
mm + 0.00 / - 0.15 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.63
mm +/- 0.08 (Equiv. 2.505 in.) |
Approx. Loose Circlip ID (A)
62.36
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.28 - 6.25 mm Groove Width (W): 1.63 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06826-C (5 Pcs)
External Retaining Rings - 68.26x1.98x63.63 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$594.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
65.10
mm +/- 0.08 (Equiv. 2.563 in.) |
Approx. Loose Circlip ID (A)
63.83
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.33 - 6.30
mm |
Groove Width (W)
2.01
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-06985-C
External Retaining Rings - 69.85x2.36x65.1 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
65.10
mm +/- 0.08 (Equiv. 2.563 in.) |
Approx. Loose Circlip ID (A)
63.83
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.33 - 6.30 mm Groove Width (W): 2.01 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-06985-C
External Retaining Rings - 69.85x2.36x65.1 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.05
mm +/- 0.08 (Equiv. 2.679 in.) |
Approx. Loose Circlip ID (A)
66.78
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.38 - 6.50
mm |
Groove Width (W)
1.98
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-07303-C (25 Pcs)
External Retaining Rings - 73.03x2.36x68.05 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$3,064.59 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.05
mm +/- 0.08 (Equiv. 2.679 in.) |
Approx. Loose Circlip ID (A)
66.78
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.38 - 6.50 mm Groove Width (W): 1.98 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-07303-C (25 Pcs)
External Retaining Rings - 73.03x2.36x68.05 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$3,064.59 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Shaft Diameter (Ds)
74.61
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.04
mm +/- 0.08 (Equiv. 2.797 in.) |
Approx. Loose Circlip ID (A)
68.25
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.45 - 6.60
mm |
Groove Width (W)
1.98
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-07461-C (13 Pcs)
External Retaining Rings - 74.61x2.36x71.04 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$1,585.23 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Shaft Diameter (Ds)
74.61
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.04
mm +/- 0.08 (Equiv. 2.797 in.) |
Approx. Loose Circlip ID (A)
68.25
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.45 - 6.60 mm Groove Width (W): 1.98 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-07461-C (13 Pcs)
External Retaining Rings - 74.61x2.36x71.04 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$1,585.23 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.99
mm +/- 0.08 (Equiv. 2.795 in.) |
Approx. Loose Circlip ID (A)
69.72
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.51 - 6.71
mm |
Groove Width (W)
1.96
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-07620-C (500 Pcs)
External Retaining Rings - 76.2x2.36x70.99 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$56,382.23 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.99
mm +/- 0.08 (Equiv. 2.795 in.) |
Approx. Loose Circlip ID (A)
69.72
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.51 - 6.71 mm Groove Width (W): 1.96 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-07620-C (500 Pcs)
External Retaining Rings - 76.2x2.36x70.99 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$56,382.23 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Shaft Diameter (Ds)
77.79
mm (Equiv. 3.063 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.44
mm +/- 0.08 (Equiv. 2.852 in.) |
Approx. Loose Circlip ID (A)
71.17
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.33 - 6.40
mm |
Groove Width (W)
1.96
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-07779-C
External Retaining Rings - 77.79x2.36x72.44 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
77.79
mm (Equiv. 3.063 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.44
mm +/- 0.08 (Equiv. 2.852 in.) |
Approx. Loose Circlip ID (A)
71.17
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.33 - 6.40 mm Groove Width (W): 1.96 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-07779-C
External Retaining Rings - 77.79x2.36x72.44 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.96
mm +/- 0.08 (Equiv. 2.912 in.) |
Approx. Loose Circlip ID (A)
72.69
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.58 - 6.91
mm |
Groove Width (W)
1.93
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-07938-C (25 Pcs)
External Retaining Rings - 79.38x2.36x73.96 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$357.59 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.96
mm +/- 0.08 (Equiv. 2.912 in.) |
Approx. Loose Circlip ID (A)
72.69
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.58 - 6.91 mm Groove Width (W): 1.93 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-07938-C (25 Pcs)
External Retaining Rings - 79.38x2.36x73.96 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$357.59 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Shaft Diameter (Ds)
80.17
mm (Equiv. 3.156 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.68
mm +/- 0.08 (Equiv. 2.94 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.63 - 6.96
mm |
Groove Width (W)
1.93
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-08017-C
External Retaining Rings - 80.17x2.36x74.68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
80.17
mm (Equiv. 3.156 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.68
mm +/- 0.08 (Equiv. 2.94 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.63 - 6.96 mm Groove Width (W): 1.93 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-08017-C
External Retaining Rings - 80.17x2.36x74.68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$15.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.86
mm +/- 0.08 (Equiv. 3.026 in.) |
Approx. Loose Circlip ID (A)
75.59
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.68 - 7.11
mm |
Groove Width (W)
1.93
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-08255-C
External Retaining Rings - 82.55x2.36x76.86 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.86
mm +/- 0.08 (Equiv. 3.026 in.) |
Approx. Loose Circlip ID (A)
75.59
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.68 - 7.11 mm Groove Width (W): 1.93 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-08255-C
External Retaining Rings - 82.55x2.36x76.86 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.04
mm +/- 0.08 (Equiv. 3.112 in.) |
Approx. Loose Circlip ID (A)
77.77
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.73 - 7.62
mm |
Groove Width (W)
1.91
mm + 0.06 / - 0.00 |
|
| Material: Carbon Steel Tool: PRS-E115 | ||||||
|
Part Number: CEB-08499-C
External Retaining Rings - 84.99x2.36x79.04 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$81.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.15 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.04
mm +/- 0.08 (Equiv. 3.112 in.) |
Approx. Loose Circlip ID (A)
77.77
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.73 - 7.62 mm Groove Width (W): 1.91 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-08499-C
External Retaining Rings - 84.99x2.36x79.04 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$81.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (Equiv. 3.437 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.25
mm +/- 0.08 (Equiv. 3.199 in.) |
Approx. Loose Circlip ID (A)
79.98
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.76 - 7.42
mm |
Groove Width (W)
1.91
mm + 0.06 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-08731-C
External Retaining Rings - 87.31x2.77x81.25 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
87.31
mm (Equiv. 3.437 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.25
mm +/- 0.08 (Equiv. 3.199 in.) |
Approx. Loose Circlip ID (A)
79.98
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.76 - 7.42 mm Groove Width (W): 1.91 mm + 0.06 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-08731-C
External Retaining Rings - 87.31x2.77x81.25 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.08 (Equiv. 3.257 in.) |
Approx. Loose Circlip ID (A)
81.46
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.76 - 7.24
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRS-E115 | ||||||
|
Part Number: CEB-08890-C (13 Pcs)
External Retaining Rings - 88.9x2.77x82.73 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$1,652.32 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.08 (Equiv. 3.257 in.) |
Approx. Loose Circlip ID (A)
81.46
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.76 - 7.24 mm Groove Width (W): 2.31 mm + 0.08 / - 0.00 Tool: PRS-E115 | ||||||
|
Part Number: CEB-08890-C (13 Pcs)
External Retaining Rings - 88.9x2.77x82.73 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$1,652.32 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.71
mm +/- 0.08 (Equiv. 3.296 in.) |
Approx. Loose Circlip ID (A)
82.47
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.78 - 7.32
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-08999-C (3 Pcs)
External Retaining Rings - 89.99x2.77x83.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$380.77 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.71
mm +/- 0.08 (Equiv. 3.296 in.) |
Approx. Loose Circlip ID (A)
82.47
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 3.78 - 7.32 mm Groove Width (W): 2.31 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-08999-C (3 Pcs)
External Retaining Rings - 89.99x2.77x83.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$380.77 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.65
mm +/- 0.08 (Equiv. 3.372 in.) |
Approx. Loose Circlip ID (A)
84.38
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.89 - 7.52
mm |
Groove Width (W)
2.29
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09208-C
External Retaining Rings - 92.08x2.77x85.65 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.65
mm +/- 0.08 (Equiv. 3.372 in.) |
Approx. Loose Circlip ID (A)
84.38
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.89 - 7.52 mm Groove Width (W): 2.29 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09208-C
External Retaining Rings - 92.08x2.77x85.65 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
93.68
mm (Equiv. 3.688 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.12
mm +/- 0.08 (Equiv. 3.43 in.) |
Approx. Loose Circlip ID (A)
85.85
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.96 - 7.67
mm |
Groove Width (W)
2.29
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09368-C
External Retaining Rings - 93.68x2.77x87.12 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
93.68
mm (Equiv. 3.688 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.12
mm +/- 0.08 (Equiv. 3.43 in.) |
Approx. Loose Circlip ID (A)
85.85
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.96 - 7.67 mm Groove Width (W): 2.29 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09368-C
External Retaining Rings - 93.68x2.77x87.12 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
88.60
mm +/- 0.08 (Equiv. 3.488 in.) |
Approx. Loose Circlip ID (A)
87.33
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.06 - 7.87
mm |
Groove Width (W)
2.26
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09525-C
External Retaining Rings - 95.25x2.77x88.6 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$136.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
88.60
mm +/- 0.08 (Equiv. 3.488 in.) |
Approx. Loose Circlip ID (A)
87.33
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 4.06 - 7.87 mm Groove Width (W): 2.26 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09525-C
External Retaining Rings - 95.25x2.77x88.6 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$136.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
91.54
mm +/- 0.08 (Equiv. 3.604 in.) |
Approx. Loose Circlip ID (A)
89.15
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.14 - 8.08
mm |
Groove Width (W)
2.26
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09843-C
External Retaining Rings - 98.43x2.77x91.54 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
91.54
mm +/- 0.08 (Equiv. 3.604 in.) |
Approx. Loose Circlip ID (A)
89.15
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 4.14 - 8.08 mm Groove Width (W): 2.26 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-09843-C
External Retaining Rings - 98.43x2.77x91.54 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.00
mm +/- 0.08 (Equiv. 3.661 in.) |
Approx. Loose Circlip ID (A)
91.74
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.14 - 8.08
mm |
Groove Width (W)
2.24
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10001-C
External Retaining Rings - 100.01x2.77x93 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$139.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.00
mm +/- 0.08 (Equiv. 3.661 in.) |
Approx. Loose Circlip ID (A)
91.74
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 4.14 - 8.08 mm Groove Width (W): 2.24 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10001-C
External Retaining Rings - 100.01x2.77x93 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$139.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.49
mm +/- 0.08 (Equiv. 3.72 in.) |
Approx. Loose Circlip ID (A)
93.22
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.14 - 8.08
mm |
Groove Width (W)
2.24
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10160-C
External Retaining Rings - 101.6x2.77x94.49 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$139.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.49
mm +/- 0.08 (Equiv. 3.72 in.) |
Approx. Loose Circlip ID (A)
93.22
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 4.14 - 8.08 mm Groove Width (W): 2.24 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10160-C
External Retaining Rings - 101.6x2.77x94.49 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$139.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
