Collection: Retaining Rings - External - Circlips - Bevelled

Retaining Rings -> External -> Circlips -> Bevelled

There are 67 products in the sub-categories of Retaining Rings - External - Circlips - Bevelled. Scroll down or follow the link to Retaining Rings - External - Circlips - Bevelled in the products table to see all these items combined into a handy table with filters.

Category Details

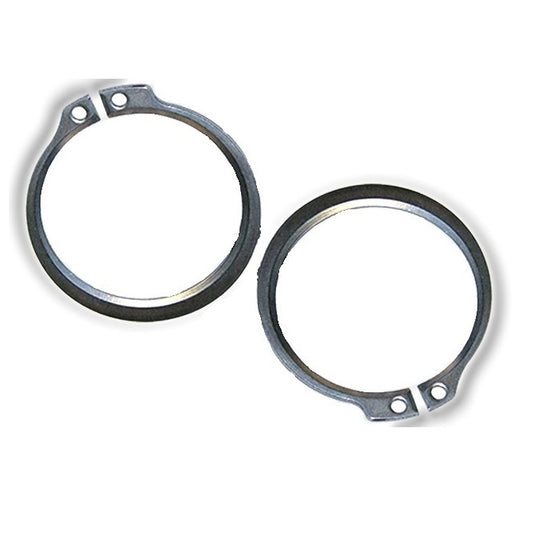

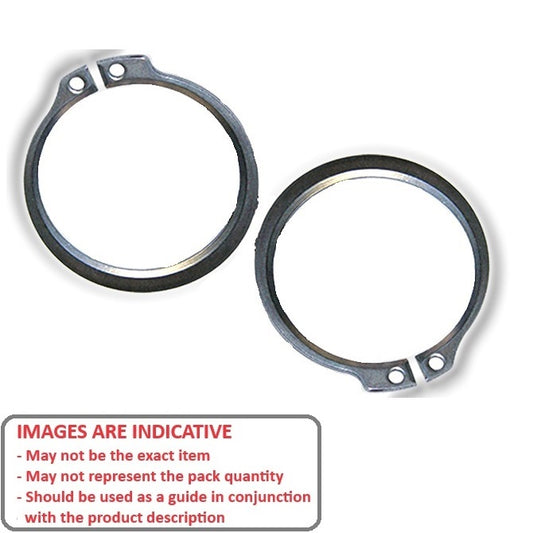

A selection of Bevelled Circlips External Retaining Rings. N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
Used in greasy or oily environments.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Bevelled category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+ 0.00 / - 0.08} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.62 mm _{+/- 0.05} (Equiv. 0.93 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.38 / - 0.00		Groove Width (W) 0.94 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 504
Part Number: CEB-02540-C (6 Pcs) External Retaining Rings - 25.4x1.07x23.62 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+ 0.00 / - 0.08} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.62 mm _{+/- 0.05} (Equiv. 0.93 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.38 / - 0.00
Material: Carbon Steel Groove Width (W): 0.94 mm + 0.05 / - 0.00 Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 504
Part Number: CEB-02540-C (6 Pcs) External Retaining Rings - 25.4x1.07x23.62 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-02540-C (6 Pcs) --- External Retaining Rings - 25.4x1.07x23.62 mm Circlips - Carbon Steel Circlip CEB-02540-C (6 Pcs) --- External Retaining Rings - 25.4x1.07x23.62 mm Circlips - Carbon Steel Circlip Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 1.07 mm _{+ 0.00 / - 0.08} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.16 mm _{+/- 0.05} (Equiv. 0.951 in.)	Approx. Loose Circlip ID (A) 23.77 mm + 0.38 / - 0.00		Groove Width (W) 0.91 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070
Part Number: CEB-02598-C External Retaining Rings - 25.98x1.07x24.16 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 1.07 mm _{+ 0.00 / - 0.08} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.16 mm _{+/- 0.05} (Equiv. 0.951 in.)	Approx. Loose Circlip ID (A) 23.77 mm + 0.38 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.91 mm + 0.05 / - 0.00 Tool: PRS-E070
Part Number: CEB-02598-C External Retaining Rings - 25.98x1.07x24.16 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 26.99 mm (Equiv. 1.063 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 25.20 mm _{+/- 0.05} (Equiv. 0.992 in.)	Approx. Loose Circlip ID (A) 24.56 mm + 0.63 / - 0.00		Groove Width (W) 1.12 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070
Part Number: CEB-02699-C External Retaining Rings - 26.99x1.27x25.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 26.99 mm (Equiv. 1.063 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 25.20 mm _{+/- 0.05} (Equiv. 0.992 in.)	Approx. Loose Circlip ID (A) 24.56 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.12 mm + 0.05 / - 0.00 Tool: PRS-E070
Part Number: CEB-02699-C External Retaining Rings - 26.99x1.27x25.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 26.70 mm _{+/- 0.05} (Equiv. 1.051 in.)	Approx. Loose Circlip ID (A) 26.06 mm + 0.63 / - 0.00		Groove Width (W) 1.12 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CEB-02858-C (4 Pcs) External Retaining Rings - 28.58x1.27x26.7 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 26.70 mm _{+/- 0.05} (Equiv. 1.051 in.)	Approx. Loose Circlip ID (A) 26.06 mm + 0.63 / - 0.00
Material: Carbon Steel Groove Width (W): 1.12 mm + 0.05 / - 0.00 Tool: PRS-E070
Part Number: CEB-02858-C (4 Pcs) External Retaining Rings - 28.58x1.27x26.7 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-02858-C (4 Pcs) --- External Retaining Rings - 28.58x1.27x26.7 mm Circlips - Carbon Steel Circlip CEB-02858-C (4 Pcs) --- External Retaining Rings - 28.58x1.27x26.7 mm Circlips - Carbon Steel Circlip Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 30.16 mm (Equiv. 1.187 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.14 mm _{+/- 0.05} (Equiv. 1.108 in.)	Approx. Loose Circlip ID (A) 27.51 mm + 0.63 / - 0.00		Groove Width (W) 1.12 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 345
Part Number: CEB-03016-C External Retaining Rings - 30.16x1.27x28.14 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 30.16 mm (Equiv. 1.187 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.14 mm _{+/- 0.05} (Equiv. 1.108 in.)	Approx. Loose Circlip ID (A) 27.51 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.12 mm + 0.05 / - 0.00 Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 345
Part Number: CEB-03016-C External Retaining Rings - 30.16x1.27x28.14 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-03016-C --- External Retaining Rings - 30.16x1.27x28.14 mm Circlips - Carbon Spring Steel Self Finish Circlip CEB-03016-C --- External Retaining Rings - 30.16x1.27x28.14 mm Circlips - Carbon Spring Steel Self Finish Circlip Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.62 mm _{+/- 0.05} (Equiv. 1.166 in.)	Approx. Loose Circlip ID (A) 28.98 mm + 0.63 / - 0.00		Groove Width (W) 1.09 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 940
Part Number: CEB-03175-C (6 Pcs) External Retaining Rings - 31.75x1.27x29.62 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.62 mm _{+/- 0.05} (Equiv. 1.166 in.)	Approx. Loose Circlip ID (A) 28.98 mm + 0.63 / - 0.00
Material: Carbon Steel Groove Width (W): 1.09 mm + 0.05 / - 0.00 Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 940
Part Number: CEB-03175-C (6 Pcs) External Retaining Rings - 31.75x1.27x29.62 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-03175-C (6 Pcs) --- External Retaining Rings - 31.75x1.27x29.62 mm Circlips - Carbon Steel Circlip CEB-03175-C (6 Pcs) --- External Retaining Rings - 31.75x1.27x29.62 mm Circlips - Carbon Steel Circlip Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 33.38 mm (Equiv. 1.314 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 31.09 mm _{+/- 0.05} (Equiv. 1.224 in.)	Approx. Loose Circlip ID (A) 30.45 mm + 0.63 / - 0.00		Groove Width (W) 1.07 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070
Part Number: CEB-03338-C (250 Pcs) External Retaining Rings - 33.38x1.27x31.09 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $1,173.14 AUD Regular price Sale price $1,173.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 33.38 mm (Equiv. 1.314 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 31.09 mm _{+/- 0.05} (Equiv. 1.224 in.)	Approx. Loose Circlip ID (A) 30.45 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.07 mm + 0.05 / - 0.00 Tool: PRS-E070
Part Number: CEB-03338-C (250 Pcs) External Retaining Rings - 33.38x1.27x31.09 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $1,173.14 AUD Regular price Sale price $1,173.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-03338-C (250 Pcs) --- External Retaining Rings - 33.38x1.27x31.09 mm Circlips - Carbon Spring Steel Self Finish Circlip CEB-03338-C (250 Pcs) --- External Retaining Rings - 33.38x1.27x31.09 mm Circlips - Carbon Spring Steel Self Finish Circlip Regular price $1,173.14 AUD Regular price Sale price $1,173.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.56 mm _{+/- 0.05} (Equiv. 1.282 in.)	Approx. Loose Circlip ID (A) 31.93 mm + 0.63 / - 0.00		Groove Width (W) 1.07 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 540
Part Number: CEB-03493-C (250 Pcs) External Retaining Rings - 34.93x1.27x32.56 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $952.14 AUD Regular price Sale price $952.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.56 mm _{+/- 0.05} (Equiv. 1.282 in.)	Approx. Loose Circlip ID (A) 31.93 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.07 mm + 0.05 / - 0.00 Tool: PRS-E070 Additional stock available from USA subject to Prior Sale = 540
Part Number: CEB-03493-C (250 Pcs) External Retaining Rings - 34.93x1.27x32.56 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $952.14 AUD Regular price Sale price $952.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-03493-C (250 Pcs) --- External Retaining Rings - 34.93x1.27x32.56 mm Circlips - Carbon Spring Steel Self Finish Circlip CEB-03493-C (250 Pcs) --- External Retaining Rings - 34.93x1.27x32.56 mm Circlips - Carbon Spring Steel Self Finish Circlip Regular price $952.14 AUD Regular price Sale price $952.14 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.11 mm _{+/- 0.05} (Equiv. 1.343 in.)	Approx. Loose Circlip ID (A) 33.48 mm + 0.63 / - 0.00		Groove Width (W) 1.07 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E070
Part Number: CEB-03653-C External Retaining Rings - 36.53x1.27x34.11 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.11 mm _{+/- 0.05} (Equiv. 1.343 in.)	Approx. Loose Circlip ID (A) 33.48 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.07 mm + 0.05 / - 0.00 Tool: PRS-E070
Part Number: CEB-03653-C External Retaining Rings - 36.53x1.27x34.11 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.48 mm _{+/- 0.05} (Equiv. 1.397 in.)	Approx. Loose Circlip ID (A) 34.85 mm + 0.63 / - 0.00		Groove Width (W) 1.04 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 438
Part Number: CEB-03810-C (6 Pcs) External Retaining Rings - 38.1x1.27x35.48 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+ 0.00 / - 0.10} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.48 mm _{+/- 0.05} (Equiv. 1.397 in.)	Approx. Loose Circlip ID (A) 34.85 mm + 0.63 / - 0.00
Material: Carbon Steel Groove Width (W): 1.04 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 438
Part Number: CEB-03810-C (6 Pcs) External Retaining Rings - 38.1x1.27x35.48 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-03810-C (6 Pcs) --- External Retaining Rings - 38.1x1.27x35.48 mm Circlips - Carbon Steel Circlip CEB-03810-C (6 Pcs) --- External Retaining Rings - 38.1x1.27x35.48 mm Circlips - Carbon Steel Circlip Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 6 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.06 mm _{+/- 0.08} (Equiv. 1.459 in.)	Approx. Loose Circlip ID (A) 36.22 mm + 0.84 / - 0.00		Groove Width (W) 1.35 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E115
Part Number: CEB-03967-C External Retaining Rings - 39.67x1.57x37.06 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.06 mm _{+/- 0.08} (Equiv. 1.459 in.)	Approx. Loose Circlip ID (A) 36.22 mm + 0.84 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.35 mm + 0.05 / - 0.00 Tool: PRS-E115
Part Number: CEB-03967-C External Retaining Rings - 39.67x1.57x37.06 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 38.51 mm _{+/- 0.08} (Equiv. 1.516 in.)	Approx. Loose Circlip ID (A) 37.67 mm + 0.84 / - 0.00		Groove Width (W) 1.35 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 24
Part Number: CEB-04128-C External Retaining Rings - 41.28x1.57x38.51 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 38.51 mm _{+/- 0.08} (Equiv. 1.516 in.)	Approx. Loose Circlip ID (A) 37.67 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.35 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 24
Part Number: CEB-04128-C External Retaining Rings - 41.28x1.57x38.51 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04128-C --- External Retaining Rings - 41.28x1.57x38.51 mm Circlips - Carbon Steel Circlip CEB-04128-C --- External Retaining Rings - 41.28x1.57x38.51 mm Circlips - Carbon Steel Circlip Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 42.86 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 39.95 mm _{+/- 0.08} (Equiv. 1.573 in.)	Approx. Loose Circlip ID (A) 39.12 mm + 0.84 / - 0.00		Groove Width (W) 1.32 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 269
Part Number: CEB-04286-C External Retaining Rings - 42.86x1.57x39.95 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 42.86 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 39.95 mm _{+/- 0.08} (Equiv. 1.573 in.)	Approx. Loose Circlip ID (A) 39.12 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.32 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 269
Part Number: CEB-04286-C External Retaining Rings - 42.86x1.57x39.95 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04286-C --- External Retaining Rings - 42.86x1.57x39.95 mm Circlips - Carbon Steel Circlip CEB-04286-C --- External Retaining Rings - 42.86x1.57x39.95 mm Circlips - Carbon Steel Circlip Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.43 mm _{+/- 0.08} (Equiv. 1.631 in.)	Approx. Loose Circlip ID (A) 40.59 mm + 0.84 / - 0.00		Groove Width (W) 1.32 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 308
Part Number: CEB-04445-C External Retaining Rings - 44.45x1.57x41.43 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.43 mm _{+/- 0.08} (Equiv. 1.631 in.)	Approx. Loose Circlip ID (A) 40.59 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.32 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 308
Part Number: CEB-04445-C External Retaining Rings - 44.45x1.57x41.43 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04445-C --- External Retaining Rings - 44.45x1.57x41.43 mm Circlips - Carbon Steel Circlip CEB-04445-C --- External Retaining Rings - 44.45x1.57x41.43 mm Circlips - Carbon Steel Circlip Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.91 mm _{+/- 0.08} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.07 mm + 0.84 / - 0.00		Groove Width (W) 1.32 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 1037
Part Number: CEB-04501-C (4 Pcs) External Retaining Rings - 45.01x1.57x41.91 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.91 mm _{+/- 0.08} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.07 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.32 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 1037
Part Number: CEB-04501-C (4 Pcs) External Retaining Rings - 45.01x1.57x41.91 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04501-C (4 Pcs) --- External Retaining Rings - 45.01x1.57x41.91 mm Circlips - Carbon Steel Circlip CEB-04501-C (4 Pcs) --- External Retaining Rings - 45.01x1.57x41.91 mm Circlips - Carbon Steel Circlip Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.88 mm _{+/- 0.08} (Equiv. 1.688 in.)	Approx. Loose Circlip ID (A) 42.04 mm + 0.84 / - 0.00		Groove Width (W) 1.32 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 629
Part Number: CEB-04604-C (47 Pcs) External Retaining Rings - 46.04x1.57x42.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $28.50 AUD Regular price Sale price $28.50 AUD Unit price per 47 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.88 mm _{+/- 0.08} (Equiv. 1.688 in.)	Approx. Loose Circlip ID (A) 42.04 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.32 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 629
Part Number: CEB-04604-C (47 Pcs) External Retaining Rings - 46.04x1.57x42.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $28.50 AUD Regular price Sale price $28.50 AUD Unit price per 47 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04604-C (47 Pcs) --- External Retaining Rings - 46.04x1.57x42.88 mm Circlips - Carbon Steel Circlip CEB-04604-C (47 Pcs) --- External Retaining Rings - 46.04x1.57x42.88 mm Circlips - Carbon Steel Circlip Regular price $28.50 AUD Regular price Sale price $28.50 AUD Unit price per 47 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.40 mm _{+/- 0.08} (Equiv. 1.748 in.)	Approx. Loose Circlip ID (A) 43.56 mm + 0.84 / - 0.00		Groove Width (W) 1.32 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 500
Part Number: CEB-04763-C (63 Pcs) External Retaining Rings - 47.63x1.57x44.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $435.68 AUD Regular price Sale price $435.68 AUD Unit price per 63 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.40 mm _{+/- 0.08} (Equiv. 1.748 in.)	Approx. Loose Circlip ID (A) 43.56 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.32 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 500
Part Number: CEB-04763-C (63 Pcs) External Retaining Rings - 47.63x1.57x44.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $435.68 AUD Regular price Sale price $435.68 AUD Unit price per 63 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-04763-C (63 Pcs) --- External Retaining Rings - 47.63x1.57x44.4 mm Circlips - Carbon Steel Circlip CEB-04763-C (63 Pcs) --- External Retaining Rings - 47.63x1.57x44.4 mm Circlips - Carbon Steel Circlip Regular price $435.68 AUD Regular price Sale price $435.68 AUD Unit price per 63 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 50.01 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 46.53 mm _{+/- 0.08} (Equiv. 1.832 in.)	Approx. Loose Circlip ID (A) 46.20 mm + 0.84 / - 0.00		Groove Width (W) 1.30 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 542
Part Number: CEB-05001-C (3 Pcs) External Retaining Rings - 50.01x1.57x46.53 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.01 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 46.53 mm _{+/- 0.08} (Equiv. 1.832 in.)	Approx. Loose Circlip ID (A) 46.20 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 542
Part Number: CEB-05001-C (3 Pcs) External Retaining Rings - 50.01x1.57x46.53 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-05001-C (3 Pcs) --- External Retaining Rings - 50.01x1.57x46.53 mm Circlips - Carbon Steel Circlip CEB-05001-C (3 Pcs) --- External Retaining Rings - 50.01x1.57x46.53 mm Circlips - Carbon Steel Circlip Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.32 mm _{+/- 0.08} (Equiv. 1.863 in.)	Approx. Loose Circlip ID (A) 46.48 mm + 0.84 / - 0.00		Groove Width (W) 1.30 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 1865
Part Number: CEB-05080-C External Retaining Rings - 50.8x1.57x47.32 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+ 0.00 / - 0.13} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.32 mm _{+/- 0.08} (Equiv. 1.863 in.)	Approx. Loose Circlip ID (A) 46.48 mm + 0.84 / - 0.00
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.05 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 1865
Part Number: CEB-05080-C External Retaining Rings - 50.8x1.57x47.32 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-05080-C --- External Retaining Rings - 50.8x1.57x47.32 mm Circlips - Carbon Steel Circlip CEB-05080-C --- External Retaining Rings - 50.8x1.57x47.32 mm Circlips - Carbon Steel Circlip Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 48.79 mm _{+/- 0.08} (Equiv. 1.921 in.)	Approx. Loose Circlip ID (A) 47.78 mm + 1.02 / - 0.00		Groove Width (W) 1.70 mm + 0.06 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E115
Part Number: CEB-05239-C External Retaining Rings - 52.39x1.98x48.79 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 48.79 mm _{+/- 0.08} (Equiv. 1.921 in.)	Approx. Loose Circlip ID (A) 47.78 mm + 1.02 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.70 mm + 0.06 / - 0.00 Tool: PRS-E115
Part Number: CEB-05239-C External Retaining Rings - 52.39x1.98x48.79 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.27 mm _{+/- 0.08} (Equiv. 1.979 in.)	Approx. Loose Circlip ID (A) 49.25 mm + 1.02 / - 0.00		Groove Width (W) 1.70 mm + 0.06 / - 0.00
Material: Carbon Spring Steel Self Finish Tool: PRS-E115
Part Number: CEB-05398-C External Retaining Rings - 53.98x1.98x50.27 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.27 mm _{+/- 0.08} (Equiv. 1.979 in.)	Approx. Loose Circlip ID (A) 49.25 mm + 1.02 / - 0.00
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.70 mm + 0.06 / - 0.00 Tool: PRS-E115
Part Number: CEB-05398-C External Retaining Rings - 53.98x1.98x50.27 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.00 mm _{+/- 0.08} (Equiv. 2.008 in.)	Approx. Loose Circlip ID (A) 49.99 mm + 1.02 / - 0.00		Groove Width (W) 1.70 mm + 0.06 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 200
Part Number: CEB-05477-C (2 Pcs) External Retaining Rings - 54.77x1.98x51 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.00 mm _{+/- 0.08} (Equiv. 2.008 in.)	Approx. Loose Circlip ID (A) 49.99 mm + 1.02 / - 0.00
Material: Carbon Steel Groove Width (W): 1.70 mm + 0.06 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 200
Part Number: CEB-05477-C (2 Pcs) External Retaining Rings - 54.77x1.98x51 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-05477-C (2 Pcs) --- External Retaining Rings - 54.77x1.98x51 mm Circlips - Carbon Steel Circlip CEB-05477-C (2 Pcs) --- External Retaining Rings - 54.77x1.98x51 mm Circlips - Carbon Steel Circlip Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm (Equiv. 2.25 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 53.18 mm _{+/- 0.08} (Equiv. 2.094 in.)	Approx. Loose Circlip ID (A) 52.22 mm + 1.02 / - 0.00		Groove Width (W) 1.68 mm + 0.06 / - 0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05715-C (250 Pcs) External Retaining Rings - 57.15x1.98x53.18 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $2,332.23 AUD Regular price Sale price $2,332.23 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 57.15 mm (Equiv. 2.25 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 53.18 mm _{+/- 0.08} (Equiv. 2.094 in.)	Approx. Loose Circlip ID (A) 52.22 mm + 1.02 / - 0.00
Material: Carbon Steel Groove Width (W): 1.68 mm + 0.06 / - 0.00 Tool: PRS-E115
Part Number: CEB-05715-C (250 Pcs) External Retaining Rings - 57.15x1.98x53.18 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $2,332.23 AUD Regular price Sale price $2,332.23 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-05715-C (250 Pcs) --- External Retaining Rings - 57.15x1.98x53.18 mm Circlips - Carbon Steel Circlip CEB-05715-C (250 Pcs) --- External Retaining Rings - 57.15x1.98x53.18 mm Circlips - Carbon Steel Circlip Regular price $2,332.23 AUD Regular price Sale price $2,332.23 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 58.74 mm (Equiv. 2.313 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 54.71 mm _{+/- 0.08} (Equiv. 2.154 in.)	Approx. Loose Circlip ID (A) 53.70 mm + 1.02 / - 0.00		Groove Width (W) 1.65 mm + 0.06 / - 0.00
Material: Carbon Steel Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 59
Part Number: CEB-05874-C (50 Pcs) External Retaining Rings - 58.74x1.98x54.71 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 58.74 mm (Equiv. 2.313 in.)	Clip Thickness (T) 1.98 mm _{+ 0.00 / - 0.15} (Equiv. 0.078 in.)	Groove Dia. (Dg) 54.71 mm _{+/- 0.08} (Equiv. 2.154 in.)	Approx. Loose Circlip ID (A) 53.70 mm + 1.02 / - 0.00
Material: Carbon Steel Groove Width (W): 1.65 mm + 0.06 / - 0.00 Tool: PRS-E115 Additional stock available from USA subject to Prior Sale = 59
Part Number: CEB-05874-C (50 Pcs) External Retaining Rings - 58.74x1.98x54.71 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CEB-05874-C (50 Pcs) --- External Retaining Rings - 58.74x1.98x54.71 mm Circlips - Carbon Steel Circlip CEB-05874-C (50 Pcs) --- External Retaining Rings - 58.74x1.98x54.71 mm Circlips - Carbon Steel Circlip Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - External - Circlips - Bevelled

Category Details

Filter

Filter

Subscribe to our emails
