CEB-05874-C (PK-50)

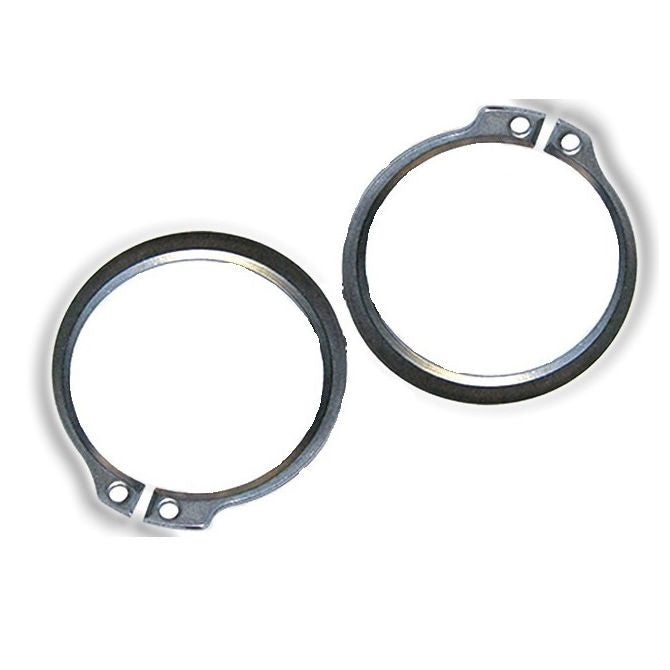

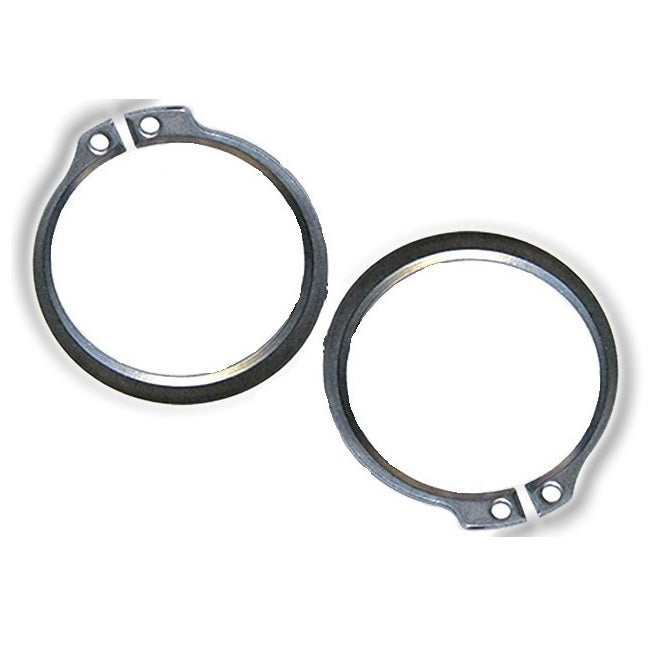

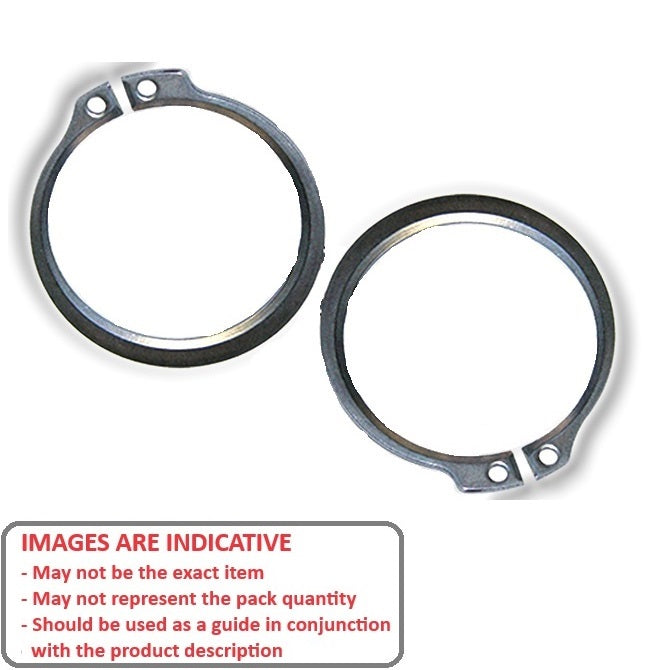

External Retaining Rings - 58.74x1.98x54.71 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 50 (2500 pcs)
for $297.86 AUD per 50 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Bevelled
Product Details
Additional stock available from USA subject to Prior Sale = 59

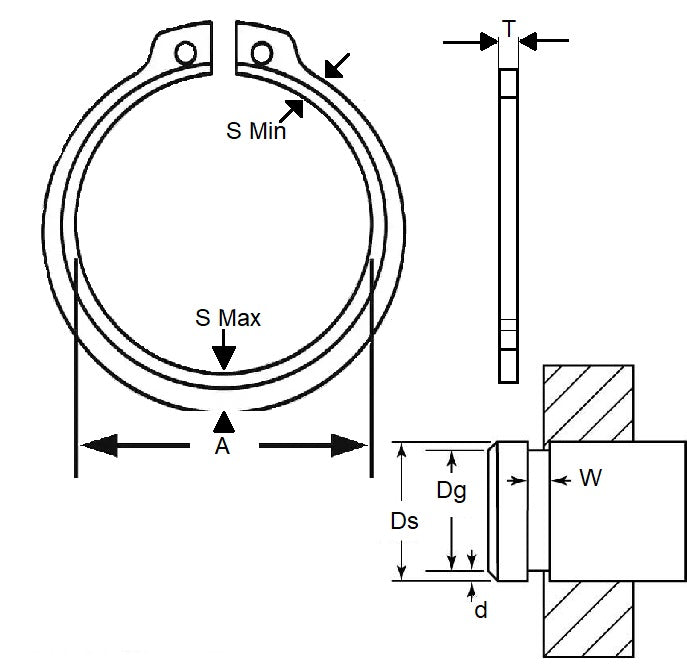

Shaft Diameter (Ds): 58.74mm
(58.74mm is 2.313 in.)
Carbon Steel
- Shaft Diameter (Ds): 58.74mm
(58.74mm is 2.313 in.)
- Clip Thickness (T): 1.98mm
+/- 0.08
(1.98mm is 0.078 in.)
- Groove Dia. (Dg): 54.71mm
+ 0.00 / - 0.15
(54.71mm is 2.154 in.)
- Approx. Loose Circlip ID (A): 53.70mm
+ 1.02 / - 0.00
- Groove Width (W): 1.65mm
+ 0.06 / - 0.00
- Tool: PRS-E115
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® VSH-231
- NoCor® VSH-231
- N14020231
- N1402-0231
- VSH231
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
