CEB-09525-C (Each)

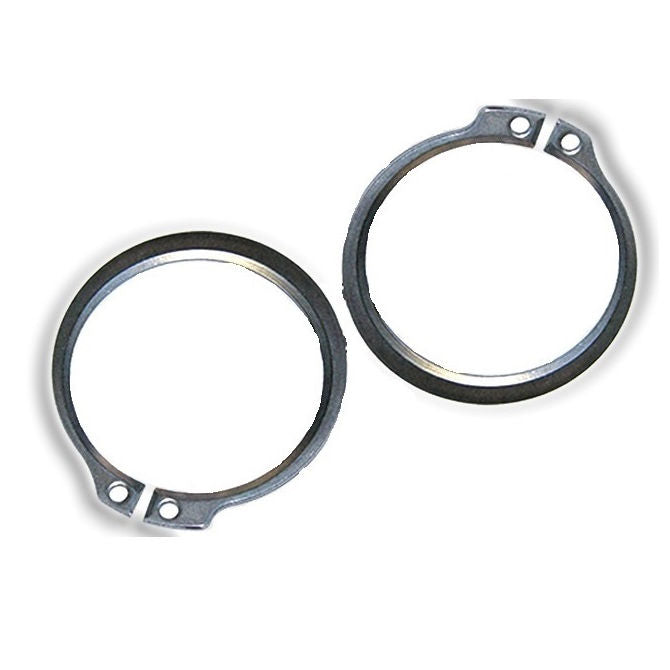

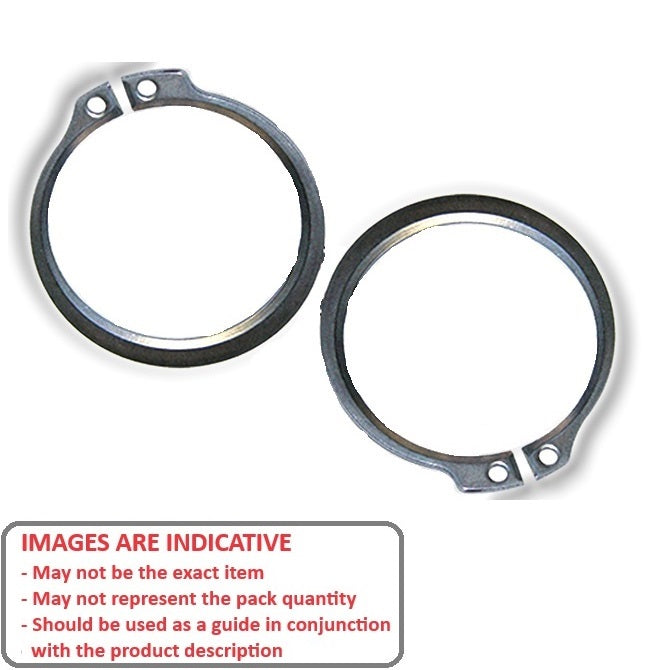

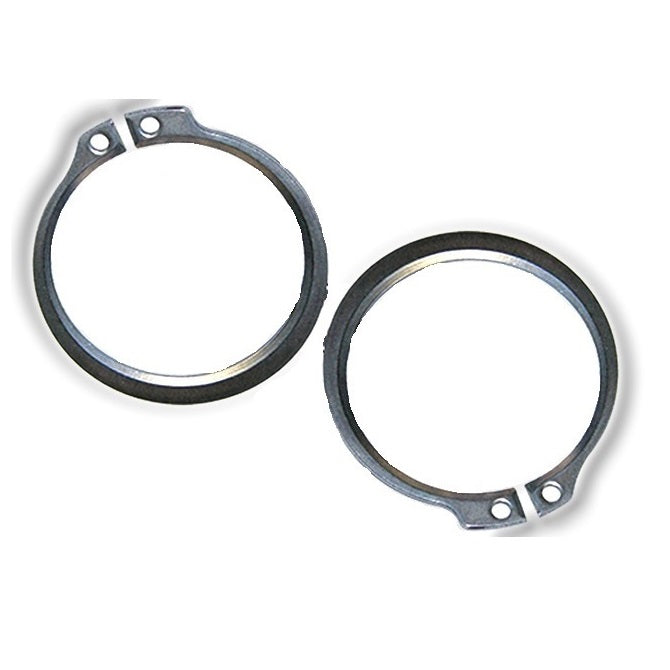

External Retaining Rings - 95.25x2.77x88.6 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more
for $111.56 AUD Each
3-3/4 inch Circlip - 95.25x2.77x88.6 mm External Retaining Rings - Carbon Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Bevelled
Product Details
Additional stock available from USA subject to Prior Sale = 125

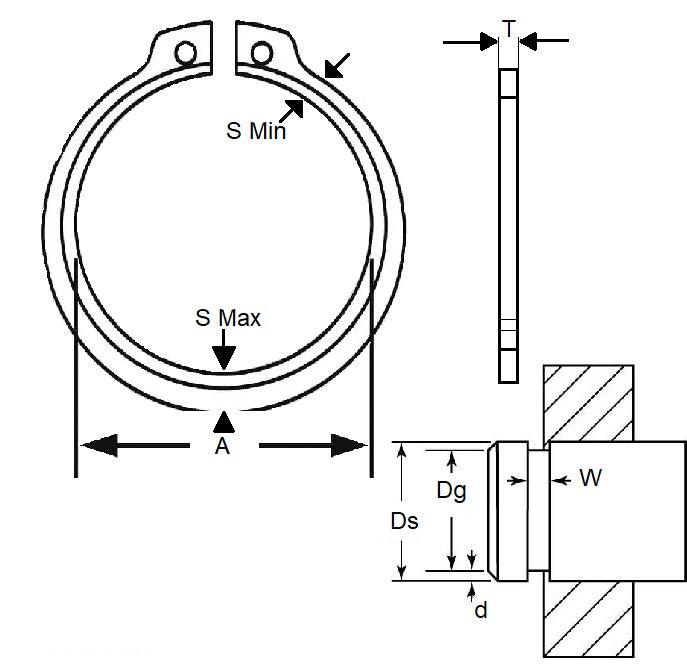

Shaft Diameter (Ds): 95.25mm
(95.25mm is 3.75 in.)
Carbon Steel
- Shaft Diameter (Ds): 95.25mm
(95.25mm is 3.75 in.)
- Clip Thickness (T): 2.77mm
+/- 0.08
(2.77mm is 0.109 in.)
- Groove Dia. (Dg): 88.60mm
+ 0.00 / - 0.15
(88.60mm is 3.488 in.)
- Approx. Loose Circlip ID (A): 87.33mm
+ 1.27 / - 0.00
- Groove Width (W): 2.26mm
+ 0.08 / - 0.00
- Tool: PRR-E120-X
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® VSH-375
- NoCor® VSH-375
- N1402-0375
- N14020375
- VSH375
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
