Collection: Plungers - Ball Threaded - Stainless Body
Plungers -> Ball Threaded -> Stainless BodyThere are 100 products in the sub-categories of Plungers - Ball Threaded - Stainless Body. Scroll down or follow the link to Plungers - Ball Threaded - Stainless Body in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

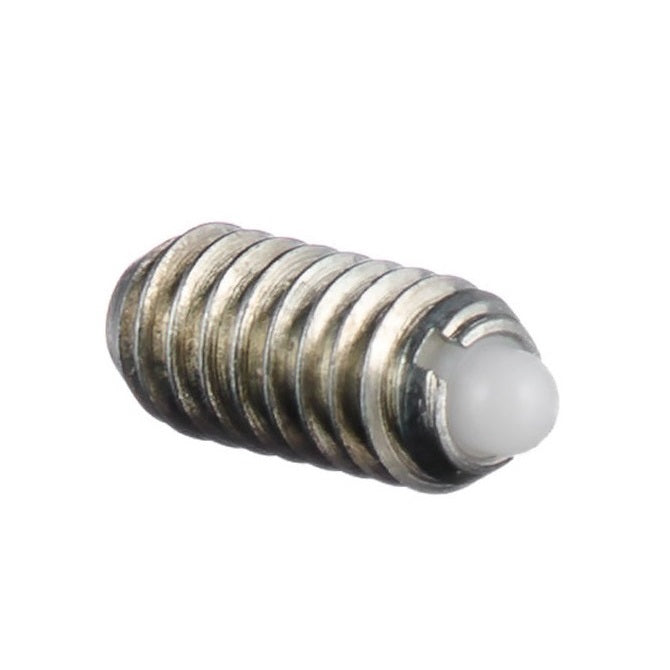

Plungers - Ball Threaded - Stainless Body - Nylon Ball
A selection of Nylon Ball Stainless Body Ball Threaded Plungers. Items shown...

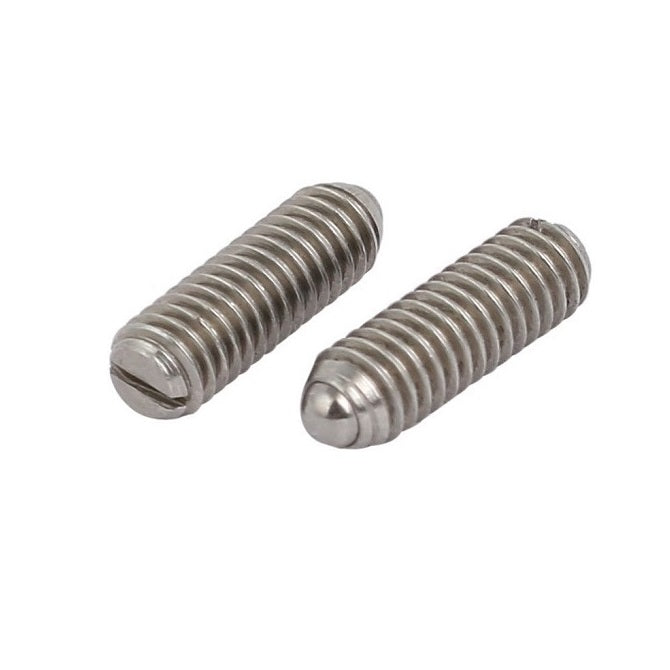

Plungers - Ball Threaded - Stainless Body - Stainless Ball
A selection of Stainless Ball Stainless Body Ball Threaded Plungers. Items shown...
Category Details
This category includes various types of ball threaded plungers.
- Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
- When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Ball Threaded - Stainless Body category on the Small Parts & Bearings online store.
| Thread Size (D) | Body Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (D)
4-48 UNF (2.85mm)
|
Body Length (L)
4.8
mm (Equiv. 0.189 in.) |
Initial Pressure (F1)
0.6
N |
Final Pressure (F2)
2.2
N |
Ball Diameter (D1)
1.6
mm |
Ball Height (H)
0.5
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-028F-048-S3N-002 (Each)
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size (D) | Body Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Thread Size (D)
4-48 UNF (2.85mm)
|
Body Length (L)
4.8
mm (Equiv. 0.189 in.) |
Initial Pressure (F1)
0.6
N |
Final Pressure (F2)
2.2
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 1.6 mm
Ball Height (H): 0.5 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-028F-048-S3N-002 (Each)
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
4-48 UNF (2.85mm)
|
Body Length (L)
4.8
mm (Equiv. 0.189 in.) |
Initial Pressure (F1)
2.5
N |
Final Pressure (F2)
9.9
N |
Ball Diameter (D1)
1.6
mm |
Ball Height (H)
0.5
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-028F-048-S3-010 (Each)
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
4-48 UNF (2.85mm)
|
Body Length (L)
4.8
mm (Equiv. 0.189 in.) |
Initial Pressure (F1)
2.5
N |
Final Pressure (F2)
9.9
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.6 mm
Ball Height (H): 0.5 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-028F-048-S3-010 (Each)
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
6.00
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
1.50
mm |
Ball Height (H)
0.50
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-060-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
6.00
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.50 mm
Ball Height (H): 0.50 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-060-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
8.00
mm (Equiv. 0.315 in.) |
Initial Pressure (F1)
1.50
N |
Final Pressure (F2)
3.00
N |
Ball Diameter (D1)
1.50
mm |
Ball Height (H)
0.50
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-080-S3-003 (PK-10)
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$16.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
8.00
mm (Equiv. 0.315 in.) |
Initial Pressure (F1)
1.50
N |
Final Pressure (F2)
3.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.50 mm
Ball Height (H): 0.50 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-080-S3-003 (PK-10)
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$16.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
8.00
mm (Equiv. 0.315 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
1.50
mm |
Ball Height (H)
0.50
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-080-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
8.00
mm (Equiv. 0.315 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.50 mm
Ball Height (H): 0.50 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-080-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
12.00
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
1.50
N |
Final Pressure (F2)
3.00
N |
Ball Diameter (D1)
1.50
mm |
Ball Height (H)
0.50
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-120-S3-003 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
12.00
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
1.50
N |
Final Pressure (F2)
3.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.50 mm
Ball Height (H): 0.50 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-120-S3-003 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
12.00
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
1.50
mm |
Ball Height (H)
0.50
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-120-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M3 (3x0.5mm)
|
Body Length (L)
12.00
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.50 mm
Ball Height (H): 0.50 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-030M-120-S3-005 (PK-20)
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
5-40 UNC (3.18mm)
|
Body Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.1
N |
Final Pressure (F2)
3.3
N |
Ball Diameter (D1)
1.6
mm |
Ball Height (H)
0.5
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-032C-064-S3N-003 (Each)
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
5-40 UNC (3.18mm)
|
Body Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.1
N |
Final Pressure (F2)
3.3
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 1.6 mm
Ball Height (H): 0.5 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-032C-064-S3N-003 (Each)
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
5-40 UNC (3.18mm)
|
Body Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
14.8
N |
Ball Diameter (D1)
1.6
mm |
Ball Height (H)
0.5
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-032C-064-S3-015 (Each)
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger 4 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
5-40 UNC (3.18mm)
|
Body Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
14.8
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 1.6 mm
Ball Height (H): 0.5 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-032C-064-S3-015 (Each)
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger 4 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
6-40 UNF (3.5mm)
|
Body Length (L)
7.9
mm (Equiv. 0.311 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
4.5
N |
Ball Diameter (D1)
2.0
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-035F-079-S3N-004 (Each)
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
6-40 UNF (3.5mm)
|
Body Length (L)
7.9
mm (Equiv. 0.311 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
4.5
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 2.0 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-035F-079-S3N-004 (Each)
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
6-40 UNF (3.5mm)
|
Body Length (L)
7.9
mm (Equiv. 0.311 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
19.8
N |
Ball Diameter (D1)
2.0
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-035F-079-S3-020 (Each)
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
6-40 UNF (3.5mm)
|
Body Length (L)
7.9
mm (Equiv. 0.311 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
19.8
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.0 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-035F-079-S3-020 (Each)
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
6.00
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-060-S3-020 (PK-5)
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger 4 units (20 pcs) Available Now | Further orders can be expected around Tue, Jan 13, 2026 Regular price
$11.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
6.00
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-060-S3-020 (PK-5)
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger 4 units (20 pcs) Available Now | Further orders can be expected around Tue, Jan 13, 2026 Regular price
$11.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
10.0
N |
Ball Diameter (D1)
2.5
mm |
Ball Height (H)
0.8
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-090-S3-010 (Each)
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
10.0
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.5 mm
Ball Height (H): 0.8 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-090-S3-010 (Each)
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
1.00
N |
Final Pressure (F2)
3.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-003 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
1.00
N |
Final Pressure (F2)
3.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-003 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-005 (PK-10)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$16.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-005 (PK-10)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$16.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-020 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
10.00
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-100-S3-020 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$32.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
16.00
mm (Equiv. 0.63 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-160-S3-005 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$35.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
16.00
mm (Equiv. 0.63 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-160-S3-005 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$35.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
16.00
mm (Equiv. 0.63 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.80
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-160-S3-020 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$35.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
M4 (4x0.7mm)
|
Body Length (L)
16.00
mm (Equiv. 0.63 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
20.00
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.80 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-040M-160-S3-020 (PK-20)
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026 Regular price
$35.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-042C-087-S3N-006 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-042C-087-S3N-006 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
24.7
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042C-087-S3-025 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
24.7
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042C-087-S3-025 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
11.3
mm (Equiv. 0.445 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
2.4
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042C-113-S3-006 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
8-32 UNC (4.17mm)
|
Body Length (L)
11.3
mm (Equiv. 0.445 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 2.4 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042C-113-S3-006 (Each)
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
8-36 UNF (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-042F-087-S3N-006 (Each)
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
8-36 UNF (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
5.6
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-042F-087-S3N-006 (Each)
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
8-36 UNF (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
24.7
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042F-087-S3-025 (Each)
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
8-36 UNF (4.17mm)
|
Body Length (L)
8.7
mm (Equiv. 0.343 in.) |
Initial Pressure (F1)
9.9
N |
Final Pressure (F2)
24.7
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBT-042F-087-S3-025 (Each)
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (D)
10-32 UNF (4.76mm)
|
Body Length (L)
13.0
mm (Equiv. 0.512 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.6
mm |
|
|
Material: Stainless Steel 303 Grade with Nylon Ball
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-048F-130-S3N-007 (Each)
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (D)
10-32 UNF (4.76mm)
|
Body Length (L)
13.0
mm (Equiv. 0.512 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
|
||
|
Material: Stainless Steel 303 Grade with Nylon Ball
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.6 mm
Category: Plungers - Ball Threaded - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBT-048F-130-S3N-007 (Each)
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
