Plungers - Ball Threaded - Stainless Body - Nylon Ball

Plungers -> Ball Threaded -> Stainless Body -> Nylon Ball

There are 21 products in the sub-categories of Plungers - Ball Threaded - Stainless Body - Nylon Ball. Scroll down or follow the link to Plungers - Ball Threaded - Stainless Body - Nylon Ball in the products table to see all these items combined into a handy table with filters.

Category Details

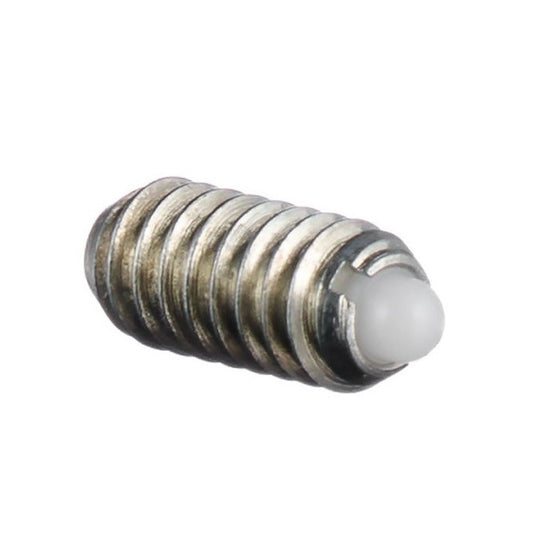

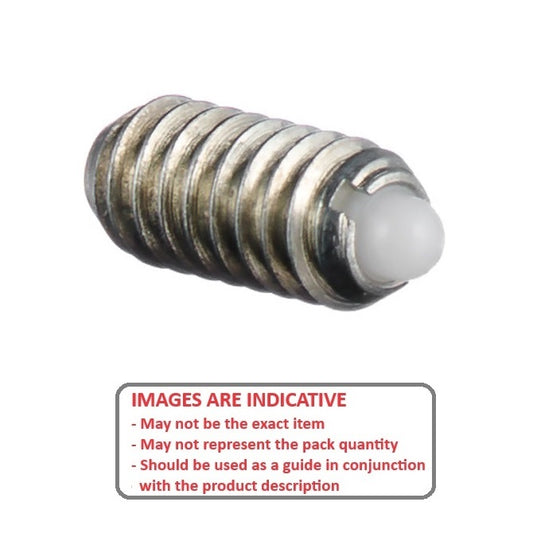

A selection of Nylon Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Plungers - Ball Threaded - Stainless Body - Nylon Ball category on the Small Parts & Bearings online store.
    Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
    Thread Size (D)
    4-48 UNF (2.85mm)

    Body Length (L)
    4.8
    mm

    (Equiv. 0.189 in.)
    Initial Pressure (F1)
    0.6
    N
    Final Pressure (F2)
    2.2
    N
    Ball Diameter (D1)
    1.6
    mm
    Ball Height (H)
    0.5
    mm
    		Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-028F-048-S3N-002
    Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $8.05 AUD
    $9.65 AUD $8.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
    Thread Size (D)
    4-48 UNF (2.85mm)

    Body Length (L)
    4.8
    mm

    (Equiv. 0.189 in.)
    Initial Pressure (F1)
    0.6
    N
    Final Pressure (F2)
    2.2
    N
    		Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 1.6 mm    Ball Height (H): 0.5 mm    Drive: Slotted
    Part Number: PLBT-028F-048-S3N-002
    Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 0.6 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $8.05 AUD
    $9.65 AUD $8.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5-40 UNC (3.18mm)

    Body Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    1.1
    N
    Final Pressure (F2)
    3.3
    N
    Ball Diameter (D1)
    1.6
    mm
    Ball Height (H)
    0.5
    mm
    		Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-032C-064-S3N-003
    Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $10.50 AUD
    $12.60 AUD $10.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5-40 UNC (3.18mm)

    Body Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    1.1
    N
    Final Pressure (F2)
    3.3
    N
    		Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 1.6 mm    Ball Height (H): 0.5 mm    Drive: Slotted
    Part Number: PLBT-032C-064-S3N-003
    Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 1.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $10.50 AUD
    $12.60 AUD $10.50 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    6-40 UNF (3.5mm)

    Body Length (L)
    7.9
    mm

    (Equiv. 0.311 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    4.5
    N
    Ball Diameter (D1)
    2.0
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-035F-079-S3N-004
    Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $9.68 AUD
    $11.62 AUD $9.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    6-40 UNF (3.5mm)

    Body Length (L)
    7.9
    mm

    (Equiv. 0.311 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    4.5
    N
    		Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.0 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-035F-079-S3N-004
    Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $9.68 AUD
    $11.62 AUD $9.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    8-32 UNC (4.17mm)

    Body Length (L)
    8.7
    mm

    (Equiv. 0.343 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    5.6
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-042C-087-S3N-006
    Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $8.41 AUD
    $10.09 AUD $8.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    8-32 UNC (4.17mm)

    Body Length (L)
    8.7
    mm

    (Equiv. 0.343 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    5.6
    N
    		Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-042C-087-S3N-006
    Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $8.41 AUD
    $10.09 AUD $8.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    8-36 UNF (4.17mm)

    Body Length (L)
    8.7
    mm

    (Equiv. 0.343 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    5.6
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-042F-087-S3N-006
    Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $9.41 AUD
    $11.29 AUD $9.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    8-36 UNF (4.17mm)

    Body Length (L)
    8.7
    mm

    (Equiv. 0.343 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    5.6
    N
    		Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-042F-087-S3N-006
    Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $9.41 AUD
    $11.29 AUD $9.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    6.7
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-007
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    2.2
    N
    Final Pressure (F2)
    6.7
    N
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-007
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 2.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    6.7
    N
    Final Pressure (F2)
    13.4
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 6.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-013
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 6.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.14 AUD
    $13.36 AUD $11.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    6.7
    N
    Final Pressure (F2)
    13.4
    N
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 6.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-013
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 6.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.14 AUD
    $13.36 AUD $11.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.6
    mm
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-022
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.41 AUD
    $13.69 AUD $11.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    10-32 UNF (4.76mm)

    Body Length (L)
    13.0
    mm

    (Equiv. 0.512 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    		Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
    Part Number: PLBT-048F-130-S3N-022
    Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.41 AUD
    $13.69 AUD $11.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    17.8
    N
    Ball Diameter (D1)
    3.2
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-018
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $10.32 AUD
    $12.38 AUD $10.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    17.8
    N
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 3.2 mm    Ball Height (H): 0.9 mm    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-018
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $10.32 AUD
    $12.38 AUD $10.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    13.4
    N
    Final Pressure (F2)
    31.1
    N
    Ball Diameter (D1)
    3.2
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-031
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.32 AUD
    $15.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    13.4
    N
    Final Pressure (F2)
    31.1
    N
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 3.2 mm    Ball Height (H): 0.9 mm    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-031
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.32 AUD
    $15.32 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    53.4
    N
    Ball Diameter (D1)
    3.2
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-053
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $7.41 AUD
    $8.89 AUD $7.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/4-20 UNC (6.35mm)

    Body Length (L)
    13.5
    mm

    (Equiv. 0.531 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    53.4
    N
    		Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 3.2 mm    Ball Height (H): 0.9 mm    Drive: Slotted
    Part Number: PLBT-064C-135-S3N-053
    Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $7.41 AUD
    $8.89 AUD $7.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    20.0
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.0
    mm
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-020
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.95 AUD
    $14.35 AUD $11.95 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    20.0
    N
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-020
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 8.9 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $11.95 AUD
    $14.35 AUD $11.95 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    40.0
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.0
    mm
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-040
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    40.0
    N
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-040
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 17.8 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    75.6
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.0
    mm
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-076
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/16-18 UNC (7.94mm)

    Body Length (L)
    14.7
    mm

    (Equiv. 0.579 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    75.6
    N
    		Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Drive: Slotted
    Part Number: PLBT-079C-147-S3N-076
    Ball Threaded Plungers - 5/16-18 UNC - 7.94mm - 14.7 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    11.1
    N
    Final Pressure (F2)
    22.2
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.2
    mm
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 11.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-022
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 11.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.68 AUD
    $18.82 AUD $15.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    11.1
    N
    Final Pressure (F2)
    22.2
    N
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 11.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.2 mm    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-022
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 11.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.68 AUD
    $18.82 AUD $15.68 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    22.2
    N
    Final Pressure (F2)
    44.5
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.2
    mm
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 22.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-044 (250 Pcs)
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 22.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $5,259.86 AUD
    $5,259.86 AUD
    250 Per Sell Unit
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    22.2
    N
    Final Pressure (F2)
    44.5
    N
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 22.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.2 mm    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-044 (250 Pcs)
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 22.2 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $5,259.86 AUD
    $5,259.86 AUD
    250 Per Sell Unit
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    93.4
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.2
    mm
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-093
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $14.86 AUD
    $17.84 AUD $14.86 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    3/8-16 UNC (9.53mm)

    Body Length (L)
    15.9
    mm

    (Equiv. 0.626 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    93.4
    N
    		Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.2 mm    Drive: Slotted
    Part Number: PLBT-095C-159-S3N-093
    Ball Threaded Plungers - 3/8-16 UNC - 9.53mm - 15.9 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $14.86 AUD
    $17.84 AUD $14.86 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/2-13 UNC (12.7mm)

    Body Length (L)
    19.1
    mm

    (Equiv. 0.752 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    133.5
    N
    Ball Diameter (D1)
    7.2
    mm
    Ball Height (H)
    1.8
    mm
    		Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-127C-191-S3N-133
    Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.05 AUD
    $18.05 AUD $15.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/2-13 UNC (12.7mm)

    Body Length (L)
    19.1
    mm

    (Equiv. 0.752 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    133.5
    N
    		Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 7.2 mm    Ball Height (H): 1.8 mm    Drive: Slotted
    Part Number: PLBT-127C-191-S3N-133
    Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.05 AUD
    $18.05 AUD $15.05 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/2-13 UNC (12.7mm)

    Body Length (L)
    19.1
    mm

    (Equiv. 0.752 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    53.4
    N
    Ball Diameter (D1)
    7.2
    mm
    Ball Height (H)
    1.8
    mm
    		Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-127C-191-S3N-053
    Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.41 AUD
    $18.49 AUD $15.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    1/2-13 UNC (12.7mm)

    Body Length (L)
    19.1
    mm

    (Equiv. 0.752 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    53.4
    N
    		Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 7.2 mm    Ball Height (H): 1.8 mm    Drive: Slotted
    Part Number: PLBT-127C-191-S3N-053
    Ball Threaded Plungers - 1/2-13 UNC - 12.7mm - 19.1 mm - 26.7 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $15.41 AUD
    $18.49 AUD $15.41 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/8-11 UNC (15.88mm)

    Body Length (L)
    25.0
    mm

    (Equiv. 0.984 in.)
    Initial Pressure (F1)
    20.0
    N
    Final Pressure (F2)
    40.0
    N
    Ball Diameter (D1)
    9.5
    mm
    Ball Height (H)
    2.4
    mm
    		Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 20 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-159C-250-S3N-040
    Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 20 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $24.14 AUD
    $28.96 AUD $24.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/8-11 UNC (15.88mm)

    Body Length (L)
    25.0
    mm

    (Equiv. 0.984 in.)
    Initial Pressure (F1)
    20.0
    N
    Final Pressure (F2)
    40.0
    N
    		Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 20 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 9.5 mm    Ball Height (H): 2.4 mm    Drive: Slotted
    Part Number: PLBT-159C-250-S3N-040
    Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 20 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $24.14 AUD
    $28.96 AUD $24.14 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/8-11 UNC (15.88mm)

    Body Length (L)
    25.0
    mm

    (Equiv. 0.984 in.)
    Initial Pressure (F1)
    31.1
    N
    Final Pressure (F2)
    222.4
    N
    Ball Diameter (D1)
    9.5
    mm
    Ball Height (H)
    2.4
    mm
    		Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 31.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Drive: Slotted
    Part Number: PLBT-159C-250-S3N-222
    Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 31.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $24.23 AUD
    $29.07 AUD $24.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
    Thread Size (D)
    5/8-11 UNC (15.88mm)

    Body Length (L)
    25.0
    mm

    (Equiv. 0.984 in.)
    Initial Pressure (F1)
    31.1
    N
    Final Pressure (F2)
    222.4
    N
    		Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 31.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball
    Material: Stainless Steel 303 Grade with Nylon Ball    Ball Diameter (D1): 9.5 mm    Ball Height (H): 2.4 mm    Drive: Slotted
    Part Number: PLBT-159C-250-S3N-222
    Ball Threaded Plungers - 5/8-11 UNC - 15.88mm - 25 mm - 31.1 N Stainless Body - Stainless Steel 303 Grade with Nylon Ball Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
    $24.23 AUD
    $29.07 AUD $24.23 AUD
    Each
    Excludes GST and overseas Taxes & Duties
    Quantity Required

    Backorder: Out of Stock.
