Collection: Plungers - Ball Push Fit - Stainless Body
Plungers -> Ball Push Fit -> Stainless BodyThere are 51 products in the sub-categories of Plungers - Ball Push Fit - Stainless Body. Scroll down or follow the link to Plungers - Ball Push Fit - Stainless Body in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Push Fit - Stainless Body - Acetal Ball
A selection of Acetal Ball Stainless Body Ball Push Fit Plungers. Unthreaded.
Plungers - Ball Push Fit - Stainless Body - Nylon Ball
A selection of Nylon Ball Stainless Body Ball Push Fit Plungers. Unthreaded.
Plungers - Ball Push Fit - Stainless Body - Plastic Ball
A selection of Plastic Ball Stainless Body Ball Push Fit Plungers. Unthreaded.

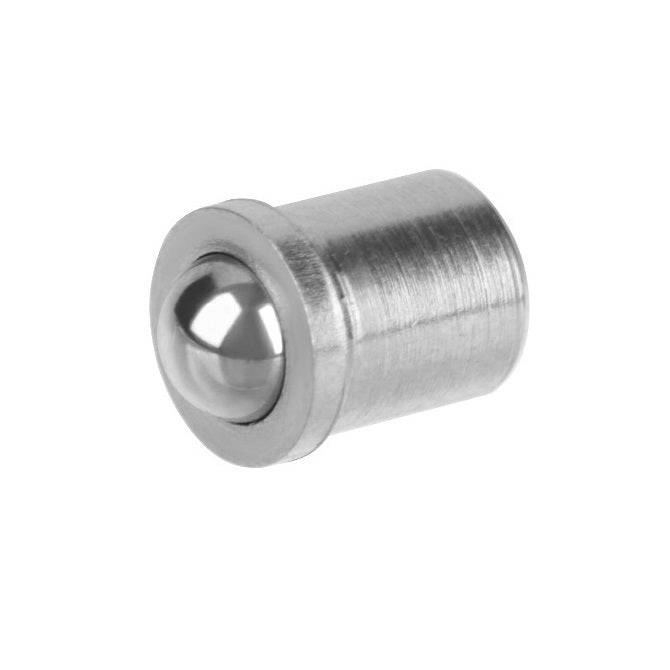

Plungers - Ball Push Fit - Stainless Body - Stainless Ball
A selection of Stainless Ball Stainless Body Ball Push Fit Plungers. Unthreaded...
Category Details
This category includes various types of ball push fit plungers.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Ball Push Fit - Stainless Body category on the Small Parts & Bearings online store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.0
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
4.0
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.8
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-030-040-S3-004 (20 Pcs)
Ball Push Fit Plungers - 3x4 mm - 2 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.0
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
4.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.8 mm
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-030-040-S3-004 (20 Pcs)
Ball Push Fit Plungers - 3x4 mm - 2 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-SN-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-SN-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 2 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 2 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-SN-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-SN-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-S3-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Acetal Ball |
||||||
|
Part Number: PLBP-032-064-SA-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body - Acetal Ball |
||||||
|
Part Number: PLBP-032-064-SA-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
10.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
1.1
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-010 (20 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
10.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 1.1 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-010 (20 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
5.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
1.1
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-005 (20 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
5.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 1.1 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-005 (20 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.8
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-040-050-SP-007 (50 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$216.23 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.8 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-040-050-SP-007 (50 Pcs)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$216.23 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-007
Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 15 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-040-050-S3-007
Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 15 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-100-SN-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-100-SN-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-100-S3-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 10 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-100-S3-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 10 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-103-SN-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-103-SN-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-S3-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 8 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$12.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-S3-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 8 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$12.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-S3-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-S3-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Acetal Ball |
||||||
|
Part Number: PLBP-048-103-SA-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Stainless Body - Acetal Ball |
||||||
|
Part Number: PLBP-048-103-SA-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0
(Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.0
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-050-060-S3-007
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 104 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0 (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.0 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-050-060-S3-007
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 104 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0
(Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.0
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 5.6 mm

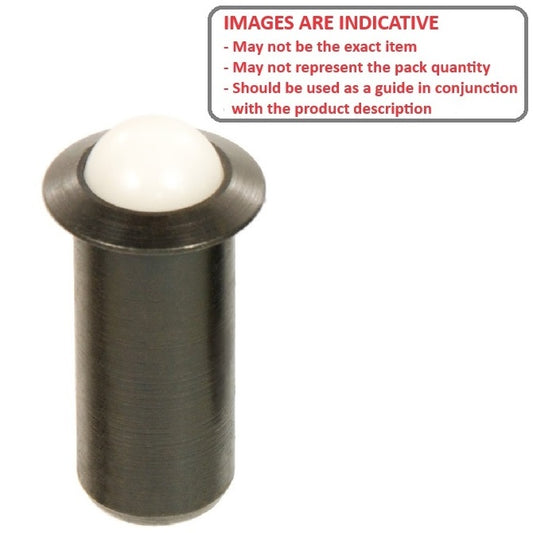

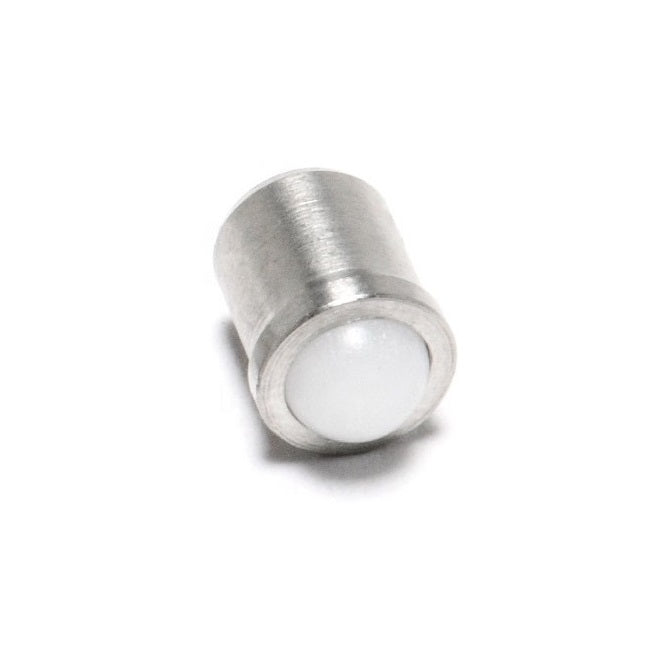

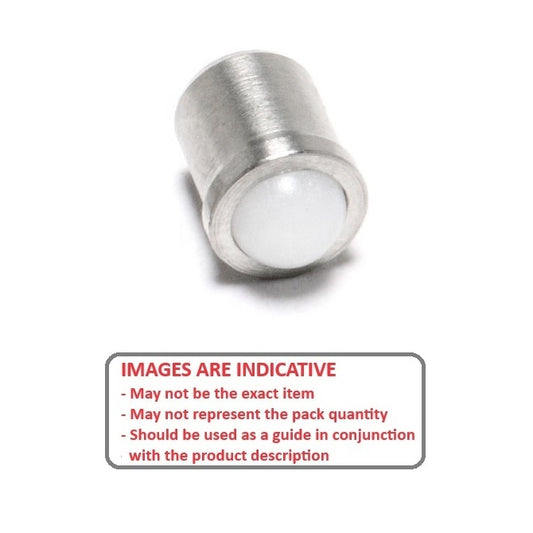

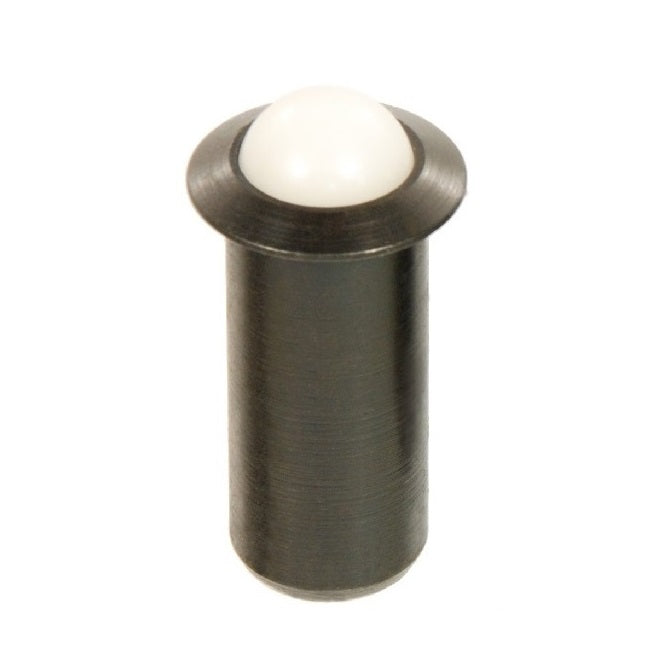

Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-050-060-SP-007 (50 Pcs)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$219.32 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm + 0.1 / - 0.0 (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
4.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.0 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-050-060-SP-007 (50 Pcs)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$219.32 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
10.0
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.4
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-050-060-S3-010 (20 Pcs)
Ball Push Fit Plungers - 5x6 mm - 5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$33.23 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
6.0
mm (Equiv. 0.236 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
10.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.4 mm
Shoulder Diameter (S): 5.6 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-050-060-S3-010 (20 Pcs)
Ball Push Fit Plungers - 5x6 mm - 5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$33.23 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.00
mm (Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
9.00
N |
Ball Diameter (D1)
5.0
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-060-070-S3-009 (10 Pcs)
Ball Push Fit Plungers - 6x7 mm - 5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$19.23 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.00
mm (Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
9.00
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 5.0 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-060-070-S3-009 (10 Pcs)
Ball Push Fit Plungers - 6x7 mm - 5 N Stainless Body - Stainless Steel 400 Series Hardened Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Dec 11, 2025 Regular price
$19.23 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0
(Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
5.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-060-070-SP-012 (50 Pcs)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$224.14 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0 (Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 5.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Plastic Ball |
||||||
|
Part Number: PLBP-060-070-SP-012 (50 Pcs)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$224.14 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0
(Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
Ball Diameter (D1)
5.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-060-070-S3-012
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 26 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$5.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.00
mm + 0.1 / - 0.0 (Equiv. 0.236 in.) |
Length (L)
7.0
mm (Equiv. 0.276 in.) |
Initial Pressure (F1)
6.0
N |
Final Pressure (F2)
12.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 5.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.5 mm
Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball |
||||||
|
Part Number: PLBP-060-070-S3-012
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Stainless Steel 400 Series Hardened Plunger 26 Available Now | Further orders can be expected around Thu, Nov 27, 2025 Regular price
$5.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-120-SN-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Stainless Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-120-SN-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
