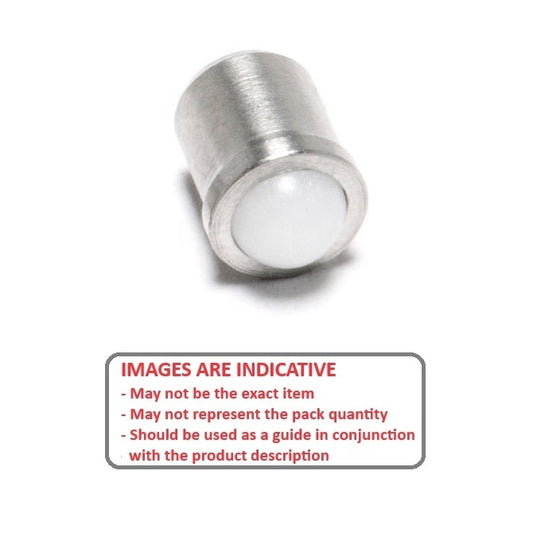

Plungers - Ball Push Fit - Stainless Body - Plastic Ball

Plungers -> Ball Push Fit -> Stainless Body -> Plastic Ball

There are 4 products in the sub-categories of Plungers - Ball Push Fit - Stainless Body - Plastic Ball. Browse the Plungers - Ball Push Fit - Stainless Body - Plastic Ball products table.

Category Details

A selection of Plastic Ball Stainless Body Ball Push Fit Plungers. Unthreaded.

  • Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
  • Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Ball Push Fit - Stainless Body - Plastic Ball category on the Small Parts & Bearings online store.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Body Diameter (D)
4.00
mm
+ 0.1 / - 0.0
(Equiv. 0.157 in.)
Length (L)
5.0
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.0
N
Final Pressure (F2)
7.0
N
Ball Diameter (D1)
3.0
mm
Ball Height (H)
0.8
mm
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic
Material: Plastic    Shoulder Diameter (S): 4.6 mm
Part Number: PLBP-040-050-SP-007 (PK-50)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$216.23 AUD
$259.47 AUD $216.23 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Body Diameter (D)
4.00
mm
+ 0.1 / - 0.0
(Equiv. 0.157 in.)
Length (L)
5.0
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.0
N
Final Pressure (F2)
7.0
N
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic
Material: Plastic    Ball Diameter (D1): 3.0 mm    Ball Height (H): 0.8 mm    Shoulder Diameter (S): 4.6 mm
Part Number: PLBP-040-050-SP-007 (PK-50)
Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$216.23 AUD
$259.47 AUD $216.23 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Diameter (D1)
4.0
mm
Ball Height (H)
1.0
mm
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic
Material: Plastic    Shoulder Diameter (S): 5.6 mm
Part Number: PLBP-050-060-SP-007 (PK-50)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$219.32 AUD
$263.18 AUD $219.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic
Material: Plastic    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Shoulder Diameter (S): 5.6 mm
Part Number: PLBP-050-060-SP-007 (PK-50)
Ball Push Fit Plungers - 5x6 mm - 4 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$219.32 AUD
$263.18 AUD $219.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D)
6.00
mm
+ 0.1 / - 0.0
(Equiv. 0.236 in.)
Length (L)
7.0
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Diameter (D1)
5.0
mm
Ball Height (H)
1.5
mm
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic
Material: Plastic    Shoulder Diameter (S): 6.5 mm
Part Number: PLBP-060-070-SP-012 (PK-50)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$224.14 AUD
$268.96 AUD $224.14 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D)
6.00
mm
+ 0.1 / - 0.0
(Equiv. 0.236 in.)
Length (L)
7.0
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic
Material: Plastic    Ball Diameter (D1): 5.0 mm    Ball Height (H): 1.5 mm    Shoulder Diameter (S): 6.5 mm
Part Number: PLBP-060-070-SP-012 (PK-50)
Ball Push Fit Plungers - 6x7 mm - 6 N Stainless Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025
$224.14 AUD
$268.96 AUD $224.14 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D)
8.00
mm
+ 0.1 / - 0.0
(Equiv. 0.315 in.)
Length (L)
9.0
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Diameter (D1)
6.5
mm
Ball Height (H)
1.8
mm
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic
Material: Plastic    Shoulder Diameter (S): 8.5 mm
Part Number: PLBP-080-090-SP-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic Plunger
28 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$9.68 AUD
$9.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

28 Available Now. Backorder if more than 28.
Body Diameter (D)
8.00
mm
+ 0.1 / - 0.0
(Equiv. 0.315 in.)
Length (L)
9.0
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic
Material: Plastic    Ball Diameter (D1): 6.5 mm    Ball Height (H): 1.8 mm    Shoulder Diameter (S): 8.5 mm
Part Number: PLBP-080-090-SP-012 (Each)
Ball Push Fit Plungers - 8x9 mm - 6 N Stainless Body - Plastic Plunger
28 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$9.68 AUD
$9.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

28 Available Now. Backorder if more than 28.
