Collection: Housing Assembly - Flanged 2 Bolt - Self Aligning
Housing Assembly -> Flanged 2 Bolt -> Self AligningThere are 54 products in the sub-categories of Housing Assembly - Flanged 2 Bolt - Self Aligning. Scroll down or follow the link to Housing Assembly - Flanged 2 Bolt - Self Aligning in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

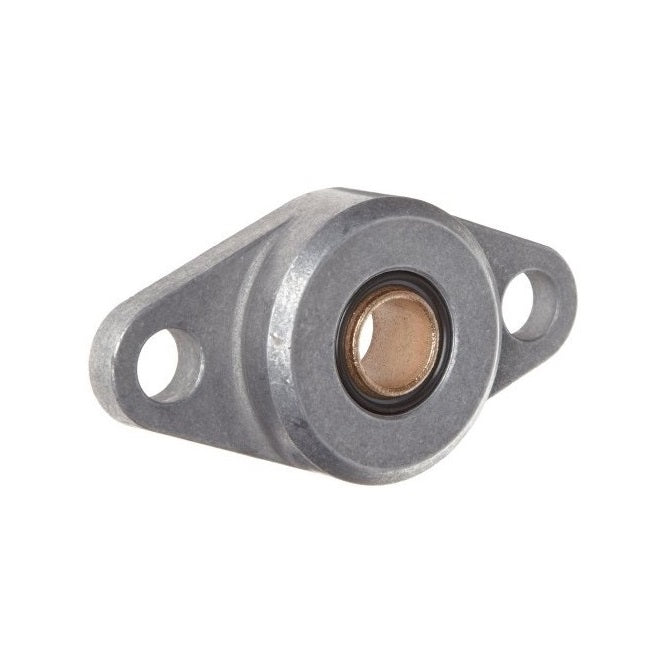

Housing Assembly - Flanged 2 Bolt - Self Aligning - Bronze
A selection of Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Spyraflo...

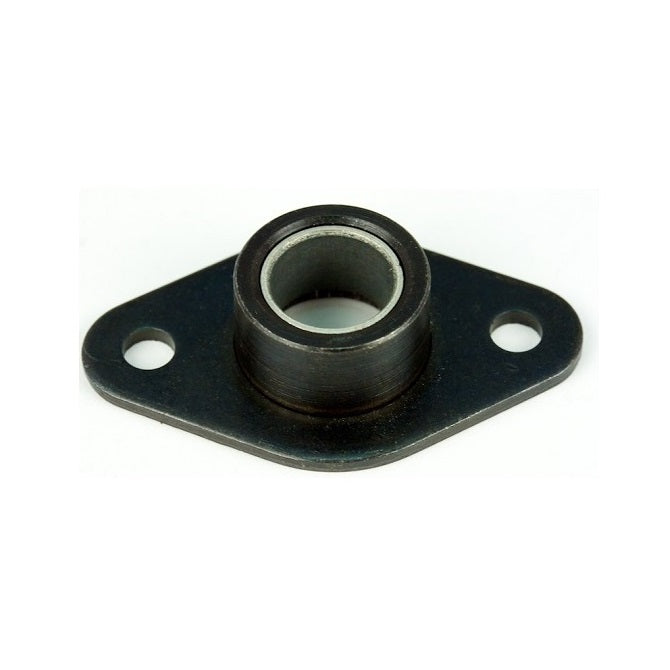

Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller
A selection of Needle Roller Self Aligning Flanged 2 Bolt Housing Assembly....

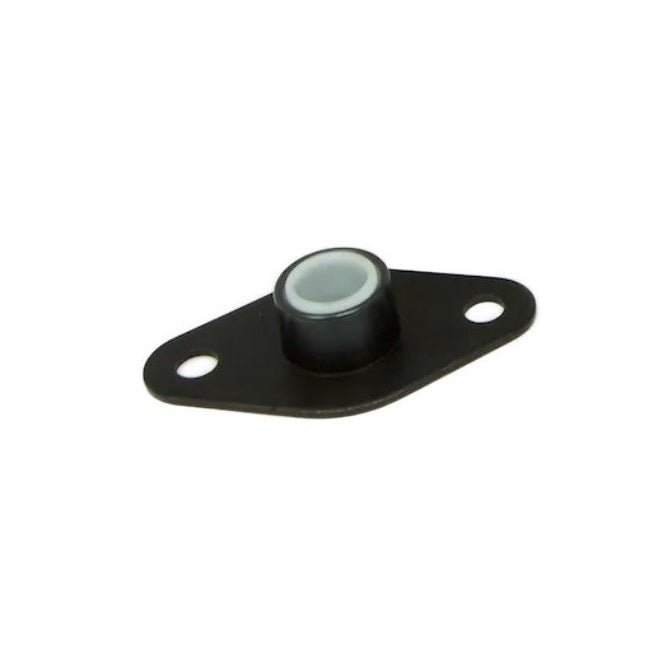

Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic
A selection of Plastic Self Aligning Flanged 2 Bolt Housing Assembly. This...
Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze
A selection of PTFE Bronze Self Aligning Flanged 2 Bolt Housing Assembly....

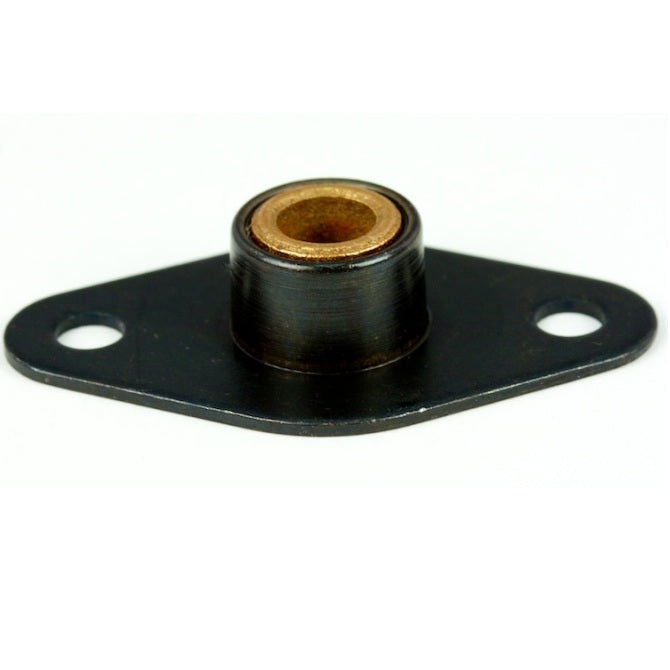

Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered Bronze
A selection of Sintered Bronze Self Aligning Flanged 2 Bolt Housing Assembly....

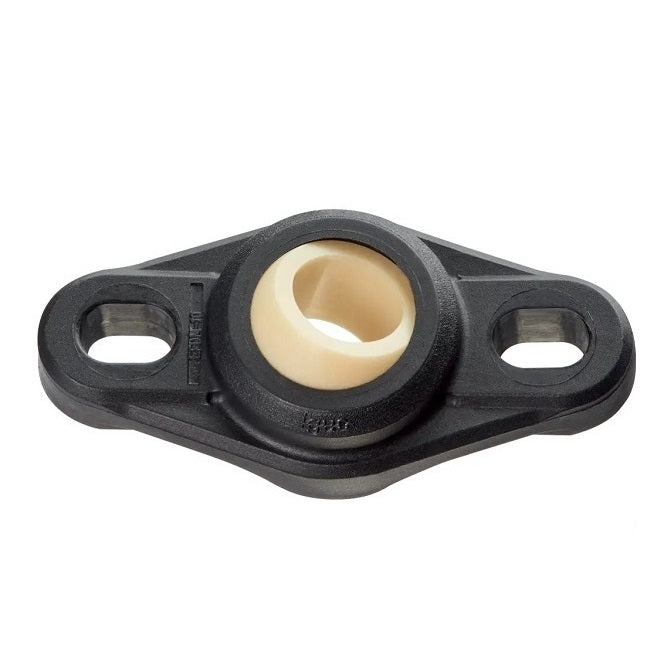

Housing Assembly - Flanged 2 Bolt - Self Aligning - W300
A selection of W300 Self Aligning Flanged 2 Bolt Housing Assembly. With...
Category Details
This category includes various types of flanged 2 bolt housing assembly.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Housing Assembly - Flanged 2 Bolt - Self Aligning category on the Small Parts & Bearings online store.
| Nominal Shaft Size | Width (W) | Overall Length (A) | Overall Height (E) |
Indicative Image |
|---|---|---|---|---|
|
Nominal Shaft Size
3.175
mm (Equiv. 0.125 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.46
mm (Equiv. 0.53 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 3.167 to 3.175 mm
Max. Radial Dynamic Load: 1601 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-125-N
Flanged 2 Bolt Housing Assembly - 3.175x45.72x13.46 mm Self Aligning - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Each
|
||||
| Nominal Shaft Size | Width (W) | Overall Length (A) | Overall Height (E) |
Indicative Image |
|
Nominal Shaft Size
3.175
mm (Equiv. 0.125 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.46
mm (Equiv. 0.53 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 3.167 to 3.175 mm
Max. Radial Dynamic Load: 1601 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-125-N
Flanged 2 Bolt Housing Assembly - 3.175x45.72x13.46 mm Self Aligning - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
4.000
mm (Equiv. 0.157 in.) |
Width (W)
53.00
mm (Equiv. 2.087 in.) |
Overall Length (A)
17.00
mm (Equiv. 0.669 in.) |
Overall Height (E)
30.00
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 3.992 to 4.000 mm
Max. Radial Dynamic Load: 1780 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-4M-N (2 Pcs)
Flanged 2 Bolt Housing Assembly - 4x53x17 mm Self Aligning - Steel 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
4.000
mm (Equiv. 0.157 in.) |
Width (W)
53.00
mm (Equiv. 2.087 in.) |
Overall Length (A)
17.00
mm (Equiv. 0.669 in.) |
Overall Height (E)
30.00
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 3.992 to 4.000 mm
Max. Radial Dynamic Load: 1780 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-4M-N (2 Pcs)
Flanged 2 Bolt Housing Assembly - 4x53x17 mm Self Aligning - Steel 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.41
mm (Equiv. 0.41 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 4.789 to 4.839 mm
Max. Radial Dynamic Load: 222 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-187-AF
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ AF 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.41
mm (Equiv. 0.41 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 4.789 to 4.839 mm
Max. Radial Dynamic Load: 222 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-187-AF
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ AF 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.41
mm (Equiv. 0.41 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 4.788 to 4.839 mm
Max. Radial Dynamic Load: 222 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-187-A
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.41
mm (Equiv. 0.41 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 4.788 to 4.839 mm
Max. Radial Dynamic Load: 222 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-187-A
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.46
mm (Equiv. 0.53 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 4.783 to 4.796 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered Bronze |
||||
|
Part Number: BFM-187-B
Flanged 2 Bolt Housing Assembly - 4.762x45.72x13.46 mm Self Aligning - Sintered Bronze SAE 840 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.46
mm (Equiv. 0.53 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 4.783 to 4.796 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered Bronze |
||||
|
Part Number: BFM-187-B
Flanged 2 Bolt Housing Assembly - 4.762x45.72x13.46 mm Self Aligning - Sintered Bronze SAE 840 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 4.750 to 4.763 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-187-N
Flanged 2 Bolt Housing Assembly - 4.762x53.34x16.76 mm Self Aligning - Steel 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
4.762
mm (Equiv. 0.187 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 4.750 to 4.763 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-187-N
Flanged 2 Bolt Housing Assembly - 4.762x53.34x16.76 mm Self Aligning - Steel 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
5.00
mm + 0.020 / + 0.068
(Equiv. 0.197 in.) |
Overall Length (A)
24.000
mm (Equiv. 0.945 in.) |
Overall Height (E)
8.500
mm |
|
|
|
Material: Plastic
Min to Max Shaft Dia.: 33 mm
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - W300 |
||||
|
Part Number: FL-05-W300 (10 Pcs)
Flanged 2 Bolt Housing Assembly - 5 - 24 mm Self Aligning - Plastic Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$168.95 AUD
Regular price
Unit price
per
Per 10
|
||||
|
Nominal Shaft Size
5.00
mm + 0.020 / + 0.068 (Equiv. 0.197 in.) |
Overall Length (A)
24.000
mm (Equiv. 0.945 in.) |
Overall Height (E)
8.500
mm |
|
|
|
Material: Plastic
Min to Max Shaft Dia.: 33 mm
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - W300 |
||||
|
Part Number: FL-05-W300 (10 Pcs)
Flanged 2 Bolt Housing Assembly - 5 - 24 mm Self Aligning - Plastic Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$168.95 AUD
Regular price
Unit price
per
Per 10
|
||||
|
||||
|
Nominal Shaft Size
6.00
mm + 0.020 / + 0.068
(Equiv. 0.236 in.) |
Overall Length (A)
24.000
mm (Equiv. 0.945 in.) |
Overall Height (E)
8.500
mm |
|
|
|
Material: Plastic
Min to Max Shaft Dia.: 27 mm
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - W300 |
||||
|
Part Number: FL-06-W300 (10 Pcs)
Flanged 2 Bolt Housing Assembly - 6 - 24 mm Self Aligning - Plastic Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$174.41 AUD
Regular price
Unit price
per
Per 10
|
||||
|
Nominal Shaft Size
6.00
mm + 0.020 / + 0.068 (Equiv. 0.236 in.) |
Overall Length (A)
24.000
mm (Equiv. 0.945 in.) |
Overall Height (E)
8.500
mm |
|
|
|
Material: Plastic
Min to Max Shaft Dia.: 27 mm
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - W300 |
||||
|
Part Number: FL-06-W300 (10 Pcs)
Flanged 2 Bolt Housing Assembly - 6 - 24 mm Self Aligning - Plastic Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$174.41 AUD
Regular price
Unit price
per
Per 10
|
||||
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
32.00
mm (Equiv. 1.26 in.) |
Overall Length (A)
41.50
mm (Equiv. 1.634 in.) |
Overall Height (E)
19.00
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 383 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-6M-A
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ 3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
32.00
mm (Equiv. 1.26 in.) |
Overall Length (A)
41.50
mm (Equiv. 1.634 in.) |
Overall Height (E)
19.00
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 383 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-6M-A
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ 3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
32.00
mm (Equiv. 1.26 in.) |
Overall Length (A)
41.50
mm (Equiv. 1.634 in.) |
Overall Height (E)
19.00
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 349 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ AF 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
32.00
mm (Equiv. 1.26 in.) |
Overall Length (A)
41.50
mm (Equiv. 1.634 in.) |
Overall Height (E)
19.00
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 349 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ AF 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
45.00
mm (Equiv. 1.772 in.) |
Overall Length (A)
11.00
mm (Equiv. 0.433 in.) |
Overall Height (E)
22.00
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 270 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x45x11 mm Self Aligning - Delrin ™ AF 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$12.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.000
mm (Equiv. 0.236 in.) |
Width (W)
45.00
mm (Equiv. 1.772 in.) |
Overall Length (A)
11.00
mm (Equiv. 0.433 in.) |
Overall Height (E)
22.00
mm |
|
|
Material: Delrin ™ AF
Min to Max Shaft Dia.: 6.020 to 6.070 mm
Max. Radial Dynamic Load: 270 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x45x11 mm Self Aligning - Delrin ™ AF 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$12.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
31.75
mm (Equiv. 1.25 in.) |
Overall Length (A)
41.40
mm (Equiv. 1.63 in.) |
Overall Height (E)
19.05
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 6.370 to 6.390 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Bronze |
||||
|
Part Number: HF1-250-B (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Bronze SAE 840 Sintered 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
31.75
mm (Equiv. 1.25 in.) |
Overall Length (A)
41.40
mm (Equiv. 1.63 in.) |
Overall Height (E)
19.05
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 6.370 to 6.390 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Bronze |
||||
|
Part Number: HF1-250-B (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Bronze SAE 840 Sintered 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
31.75
mm (Equiv. 1.25 in.) |
Overall Length (A)
41.40
mm (Equiv. 1.63 in.) |
Overall Height (E)
19.05
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 6.375 to 6.426 mm
Max. Radial Dynamic Load: 370 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Delrin ™ 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
31.75
mm (Equiv. 1.25 in.) |
Overall Length (A)
41.40
mm (Equiv. 1.63 in.) |
Overall Height (E)
19.05
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 6.375 to 6.426 mm
Max. Radial Dynamic Load: 370 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: HF1-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Delrin ™ 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 6.342 to 6.350 mm
Max. Radial Dynamic Load: 2180 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: HF2-250-N
Flanged 2 Bolt Housing Assembly - 6.35x44.45x57.15 mm Self Aligning - Steel 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 6.342 to 6.350 mm
Max. Radial Dynamic Load: 2180 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: HF2-250-N
Flanged 2 Bolt Housing Assembly - 6.35x44.45x57.15 mm Self Aligning - Steel 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.32
mm (Equiv. 0.406 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Acetal
Min to Max Shaft Dia.: 6.375 to 6.426 mm
Max. Radial Dynamic Load: 311 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm Self Aligning - Acetal 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.53 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
10.32
mm (Equiv. 0.406 in.) |
Overall Height (E)
22.10
mm |
|
|
Material: Acetal
Min to Max Shaft Dia.: 6.375 to 6.426 mm
Max. Radial Dynamic Load: 311 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm Self Aligning - Acetal 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.53 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.49
mm (Equiv. 0.531 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 6.370 to 6.383 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered Bronze |
||||
|
Part Number: BFM-250-B
Flanged 2 Bolt Housing Assembly - 6.35x45.72x13.49 mm Self Aligning - Sintered Bronze SAE 840 10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
45.72
mm (Equiv. 1.8 in.) |
Overall Length (A)
13.49
mm (Equiv. 0.531 in.) |
Overall Height (E)
22.35
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 6.370 to 6.383 mm
Max. Radial Dynamic Load: 845 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered Bronze |
||||
|
Part Number: BFM-250-B
Flanged 2 Bolt Housing Assembly - 6.35x45.72x13.49 mm Self Aligning - Sintered Bronze SAE 840 10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.67
mm (Equiv. 0.656 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 6.337 to 6.350 mm
Max. Radial Dynamic Load: 2535 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-250-N
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.67 mm Self Aligning - Steel 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.67
mm (Equiv. 0.656 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 6.337 to 6.350 mm
Max. Radial Dynamic Load: 2535 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-250-N
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.67 mm Self Aligning - Steel 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.67
mm (Equiv. 0.656 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze
Min to Max Shaft Dia.: 6.299 to 6.325 mm
Max. Radial Dynamic Load: 7562 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-P (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.67 mm Self Aligning - PTFE Impregnated Bronze 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.67
mm (Equiv. 0.656 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze
Min to Max Shaft Dia.: 6.299 to 6.325 mm
Max. Radial Dynamic Load: 7562 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-P (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.67 mm Self Aligning - PTFE Impregnated Bronze 1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 2
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze - Low Temperature
Min to Max Shaft Dia.: 6.302 to 6.325 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-LT
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.76 mm Self Aligning - PTFE Impregnated Bronze - Low Temperature 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze - Low Temperature
Min to Max Shaft Dia.: 6.302 to 6.325 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-LT
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.76 mm Self Aligning - PTFE Impregnated Bronze - Low Temperature 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze - High Temperature
Min to Max Shaft Dia.: 6.302 to 6.325 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-HT
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.76 mm Self Aligning - PTFE Impregnated Bronze - High Temperature 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
6.350
mm (Equiv. 0.25 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
16.76
mm (Equiv. 0.66 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: PTFE Impregnated Bronze - High Temperature
Min to Max Shaft Dia.: 6.302 to 6.325 mm
Max. Radial Dynamic Load: 1913 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze |
||||
|
Part Number: BFM-250-HT
Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.76 mm Self Aligning - PTFE Impregnated Bronze - High Temperature 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 7.958 to 7.978 mm
Max. Radial Dynamic Load: 1201 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Bronze |
||||
|
Part Number: HF2-312-B
Flanged 2 Bolt Housing Assembly - 7.938x44.45x57.15 mm Self Aligning - Bronze SAE 840 Sintered 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$7.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 7.958 to 7.978 mm
Max. Radial Dynamic Load: 1201 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Bronze |
||||
|
Part Number: HF2-312-B
Flanged 2 Bolt Housing Assembly - 7.938x44.45x57.15 mm Self Aligning - Bronze SAE 840 Sintered 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$7.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 7.929 to 7.938 mm
Max. Radial Dynamic Load: 1512 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: HF2-312-N
Flanged 2 Bolt Housing Assembly - 7.938x44.45x57.15 mm Self Aligning - Steel 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
44.45
mm (Equiv. 1.75 in.) |
Overall Length (A)
57.15
mm (Equiv. 2.25 in.) |
Overall Height (E)
28.70
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 7.929 to 7.938 mm
Max. Radial Dynamic Load: 1512 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: HF2-312-N
Flanged 2 Bolt Housing Assembly - 7.938x44.45x57.15 mm Self Aligning - Steel 5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
45.21
mm (Equiv. 1.78 in.) |
Overall Length (A)
21.43
mm (Equiv. 0.844 in.) |
Overall Height (E)
31.75
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 7.925 to 7.938 mm
Max. Radial Dynamic Load: 2891 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-312-N
Flanged 2 Bolt Housing Assembly - 7.938x45.21x21.43 mm Self Aligning - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
45.21
mm (Equiv. 1.78 in.) |
Overall Length (A)
21.43
mm (Equiv. 0.844 in.) |
Overall Height (E)
31.75
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 7.925 to 7.938 mm
Max. Radial Dynamic Load: 2891 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller |
||||
|
Part Number: BFM-312-N
Flanged 2 Bolt Housing Assembly - 7.938x45.21x21.43 mm Self Aligning - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
15.08
mm (Equiv. 0.594 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 7.963 to 8.014 mm
Max. Radial Dynamic Load: 534 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-312-A
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™ 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Nominal Shaft Size
7.938
mm (Equiv. 0.313 in.) |
Width (W)
53.34
mm (Equiv. 2.1 in.) |
Overall Length (A)
15.08
mm (Equiv. 0.594 in.) |
Overall Height (E)
30.23
mm |
|
|
Material: Delrin ™
Min to Max Shaft Dia.: 7.963 to 8.014 mm
Max. Radial Dynamic Load: 534 N
Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic |
||||
|
Part Number: BFM-312-A
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™ 4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
