Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic

Housing Assembly -> Flanged 2 Bolt -> Self Aligning -> Plastic

There are 10 products in the sub-categories of Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic. Browse the Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic products table.

Category Details

A selection of Plastic Self Aligning Flanged 2 Bolt Housing Assembly. This is the main category in this series

  • An expanded range may be available on special order. Please enquire.
  • +/- 5% Static Alignment

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housing Assembly - Flanged 2 Bolt - Self Aligning - Plastic category on the Small Parts & Bearings online store.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative
Nominal Shaft Size
4.762
mm

(Equiv. 0.187 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.41
mm

(Equiv. 0.41 in.)
Overall Height (E)
22.10
mm

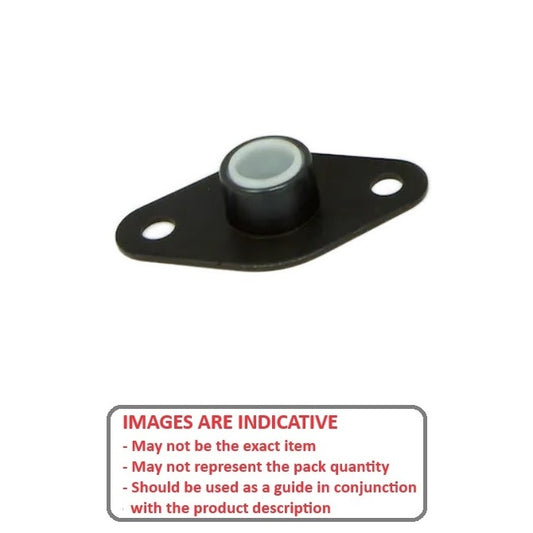

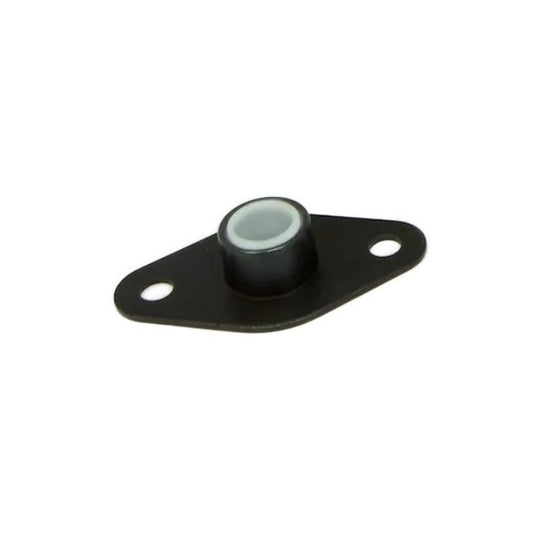

Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 4.789 to 4.839 mm    Max. Radial Dynamic Load: 222 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 3820
Part Number: BFM-187-AF
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ AF
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative
Nominal Shaft Size
4.762
mm

(Equiv. 0.187 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.41
mm

(Equiv. 0.41 in.)
Overall Height (E)
22.10
mm
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 4.789 to 4.839 mm    Max. Radial Dynamic Load: 222 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 3820
Part Number: BFM-187-AF
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™ AF
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
4.762
mm

(Equiv. 0.187 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.41
mm

(Equiv. 0.41 in.)
Overall Height (E)
22.10
mm
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 4.788 to 4.839 mm    Max. Radial Dynamic Load: 222 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 2010
Part Number: BFM-187-A
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
4.762
mm

(Equiv. 0.187 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.41
mm

(Equiv. 0.41 in.)
Overall Height (E)
22.10
mm
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 4.788 to 4.839 mm    Max. Radial Dynamic Load: 222 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 2010
Part Number: BFM-187-A
Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
32.00
mm

(Equiv. 1.26 in.)
Overall Length (A)
41.50
mm

(Equiv. 1.634 in.)
Overall Height (E)
19.00
mm
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 383 N    Bolt Hole Centres (L): 9.50 mm    Max Speed: 1591
Part Number: HF1-6M-A
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
32.00
mm

(Equiv. 1.26 in.)
Overall Length (A)
41.50
mm

(Equiv. 1.634 in.)
Overall Height (E)
19.00
mm
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 383 N    Bolt Hole Centres (L): 9.50 mm    Max Speed: 1591
Part Number: HF1-6M-A
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
32.00
mm

(Equiv. 1.26 in.)
Overall Length (A)
41.50
mm

(Equiv. 1.634 in.)
Overall Height (E)
19.00
mm
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 349 N    Bolt Hole Centres (L): 9.50 mm    Max Speed: 3182
Part Number: HF1-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ AF
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
32.00
mm

(Equiv. 1.26 in.)
Overall Length (A)
41.50
mm

(Equiv. 1.634 in.)
Overall Height (E)
19.00
mm
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 349 N    Bolt Hole Centres (L): 9.50 mm    Max Speed: 3182
Part Number: HF1-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x32x41.5 mm Self Aligning - Delrin ™ AF
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
45.00
mm

(Equiv. 1.772 in.)
Overall Length (A)
11.00
mm

(Equiv. 0.433 in.)
Overall Height (E)
22.00
mm
Flanged 2 Bolt Housing Assembly - 6x45x11 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 270 N    Bolt Hole Centres (L): 31.00 mm    Max Speed: 1620
Part Number: BFM-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x45x11 mm Self Aligning - Delrin ™ AF
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.000
mm

(Equiv. 0.236 in.)
Width (W)
45.00
mm

(Equiv. 1.772 in.)
Overall Length (A)
11.00
mm

(Equiv. 0.433 in.)
Overall Height (E)
22.00
mm
Flanged 2 Bolt Housing Assembly - 6x45x11 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 6.020 to 6.070 mm    Max. Radial Dynamic Load: 270 N    Bolt Hole Centres (L): 31.00 mm    Max Speed: 1620
Part Number: BFM-6M-AF (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6x45x11 mm Self Aligning - Delrin ™ AF
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.350
mm

(Equiv. 0.25 in.)
Width (W)
31.75
mm

(Equiv. 1.25 in.)
Overall Length (A)
41.40
mm

(Equiv. 1.63 in.)
Overall Height (E)
19.05
mm
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 6.375 to 6.426 mm    Max. Radial Dynamic Load: 370 N    Bolt Hole Centres (L): 9.65 mm    Max Speed: 1503
Part Number: HF1-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Delrin ™
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.350
mm

(Equiv. 0.25 in.)
Width (W)
31.75
mm

(Equiv. 1.25 in.)
Overall Length (A)
41.40
mm

(Equiv. 1.63 in.)
Overall Height (E)
19.05
mm
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 6.375 to 6.426 mm    Max. Radial Dynamic Load: 370 N    Bolt Hole Centres (L): 9.65 mm    Max Speed: 1503
Part Number: HF1-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x31.75x41.4 mm Self Aligning - Delrin ™
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.350
mm

(Equiv. 0.25 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.32
mm

(Equiv. 0.406 in.)
Overall Height (E)
22.10
mm
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm - Acetal
Material: Acetal    Min to Max Shaft Dia.: 6.375 to 6.426 mm    Max. Radial Dynamic Load: 311 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 1520
Part Number: BFM-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm Self Aligning - Acetal
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.53 AUD
$16.20 AUD $8.53 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
6.350
mm

(Equiv. 0.25 in.)
Width (W)
45.72
mm

(Equiv. 1.8 in.)
Overall Length (A)
10.32
mm

(Equiv. 0.406 in.)
Overall Height (E)
22.10
mm
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm - Acetal
Material: Acetal    Min to Max Shaft Dia.: 6.375 to 6.426 mm    Max. Radial Dynamic Load: 311 N    Bolt Hole Centres (L): 30.73 mm    Max Speed: 1520
Part Number: BFM-250-A (2 Pcs)
Flanged 2 Bolt Housing Assembly - 6.35x45.72x10.32 mm Self Aligning - Acetal
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.53 AUD
$16.20 AUD $8.53 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
7.938
mm

(Equiv. 0.313 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
15.08
mm

(Equiv. 0.594 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 7.963 to 8.014 mm    Max. Radial Dynamic Load: 534 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1220
Part Number: BFM-312-A
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
7.938
mm

(Equiv. 0.313 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
15.08
mm

(Equiv. 0.594 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm - Delrin ™
Material: Delrin ™    Min to Max Shaft Dia.: 7.963 to 8.014 mm    Max. Radial Dynamic Load: 534 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1220
Part Number: BFM-312-A
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
7.938
mm

(Equiv. 0.313 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
15.08
mm

(Equiv. 0.594 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 7.963 to 8.014 mm    Max. Radial Dynamic Load: 534 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1220
Part Number: BFM-312-AF
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™ AF
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
7.938
mm

(Equiv. 0.313 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
15.08
mm

(Equiv. 0.594 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 7.963 to 8.014 mm    Max. Radial Dynamic Load: 534 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1220
Part Number: BFM-312-AF
Flanged 2 Bolt Housing Assembly - 7.938x53.34x15.08 mm Self Aligning - Delrin ™ AF
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
9.525
mm

(Equiv. 0.375 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
16.67
mm

(Equiv. 0.656 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 9.525x53.34x16.67 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 9.550 to 9.601 mm    Max. Radial Dynamic Load: 845 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1010
Part Number: BFM-375-AF
Flanged 2 Bolt Housing Assembly - 9.525x53.34x16.67 mm Self Aligning - Delrin ™ AF
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size
9.525
mm

(Equiv. 0.375 in.)
Width (W)
53.34
mm

(Equiv. 2.1 in.)
Overall Length (A)
16.67
mm

(Equiv. 0.656 in.)
Overall Height (E)
30.23
mm
Flanged 2 Bolt Housing Assembly - 9.525x53.34x16.67 mm - Delrin ™ AF
Material: Delrin ™ AF    Min to Max Shaft Dia.: 9.550 to 9.601 mm    Max. Radial Dynamic Load: 845 N    Bolt Hole Centres (L): 38.86 mm    Max Speed: 1010
Part Number: BFM-375-AF
Flanged 2 Bolt Housing Assembly - 9.525x53.34x16.67 mm Self Aligning - Delrin ™ AF
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
