Gears - Spur - Standard - 24DP - 14.5 Degree - Steel

Gears -> Spur -> Standard -> 24DP -> 14.5 Degree -> Steel

There are 5 products in the sub-categories of Gears - Spur - Standard - 24DP - 14.5 Degree - Steel. Browse the Gears - Spur - Standard - 24DP - 14.5 Degree - Steel products table.

Category Details

A selection of Steel 14.5 Degree 24DP Standard Spur Gears. PCD in mm = No. of Teeth x 1.05833 (1/24 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.

  • The diameter increases by 1 inch for every 24 teeth
  • 24 Diametrical Pitch. Approx 3.33mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Standard - 24DP - 14.5 Degree - Steel category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
12

Pitch Circle Diameter (PD)
12.700
mm

(Equiv. 0.5 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
14.808
mm
Face Width (FW)
6.350
mm
Type
Hubbed

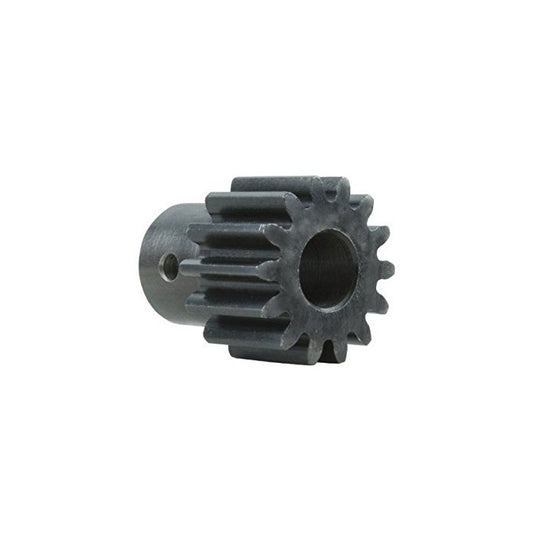

Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 9.144 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G013B-012-V24-064-064-CG
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$93.23 AUD
$93.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
12

Pitch Circle Diameter (PD)
12.700
mm

(Equiv. 0.5 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
14.808
mm
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 6.350 mm    Type: Hubbed    Hub Diameter (D1): 9.144 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G013B-012-V24-064-064-CG
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$93.23 AUD
$93.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
16

Pitch Circle Diameter (PD)
16.942
mm

(Equiv. 0.667 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
19.050
mm
Face Width (FW)
6.350
mm
Type
Hubbed
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 13.716 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G017B-016-V24-064-079-CG
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$115.59 AUD
$138.71 AUD $115.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
16

Pitch Circle Diameter (PD)
16.942
mm

(Equiv. 0.667 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
19.050
mm
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 6.350 mm    Type: Hubbed    Hub Diameter (D1): 13.716 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G017B-016-V24-064-079-CG
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$115.59 AUD
$138.71 AUD $115.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Pitch Circle Diameter (PD)
21.158
mm

(Equiv. 0.833 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
23.266
mm
Face Width (FW)
6.350
mm
Type
Hubbed
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 17.780 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G021B-020-V24-064-079-CG
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$113.77 AUD
$136.53 AUD $113.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Pitch Circle Diameter (PD)
21.158
mm

(Equiv. 0.833 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
23.266
mm
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 6.350 mm    Type: Hubbed    Hub Diameter (D1): 17.780 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G021B-020-V24-064-079-CG
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$113.77 AUD
$136.53 AUD $113.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Pitch Circle Diameter (PD)
21.16
mm

(Equiv. 0.833 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
23.266
mm
Face Width (FW)
6.35
mm
Type
Hubless
Spur Gears - 20 tooth - 21.16x6.35 mm Hubless - Carbon Steel Gear
Material: Carbon Steel    Quality: Commercial
Part Number: G021P-020-V24-064-064-C
Spur Gears - 20 tooth - 21.16x6.35 mm Hubless - Carbon Steel Gear
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
20

Pitch Circle Diameter (PD)
21.16
mm

(Equiv. 0.833 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
23.266
mm
Spur Gears - 20 tooth - 21.16x6.35 mm Hubless - Carbon Steel Gear
Material: Carbon Steel    Face Width (FW): 6.35 mm    Type: Hubless    Quality: Commercial
Part Number: G021P-020-V24-064-064-C
Spur Gears - 20 tooth - 21.16x6.35 mm Hubless - Carbon Steel Gear
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
24

Pitch Circle Diameter (PD)
25.400
mm

(Equiv. 1 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Outside Diameter (OD)
27.508
mm
Face Width (FW)
6.350
mm
Type
Hubbed
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 22.098 mm    Hub Projection (HL): 9.652 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G025B-024-V24-064-095-CG
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$132.95 AUD
$159.55 AUD $132.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
24

Pitch Circle Diameter (PD)
25.400
mm

(Equiv. 1 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Outside Diameter (OD)
27.508
mm
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 6.350 mm    Type: Hubbed    Hub Diameter (D1): 22.098 mm    Hub Projection (HL): 9.652 mm    Locking Method: Set Screw    Quality: Commercial
Part Number: G025B-024-V24-064-095-CG
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$132.95 AUD
$159.55 AUD $132.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
