G013B-012-V24-064-064-CG (Each)

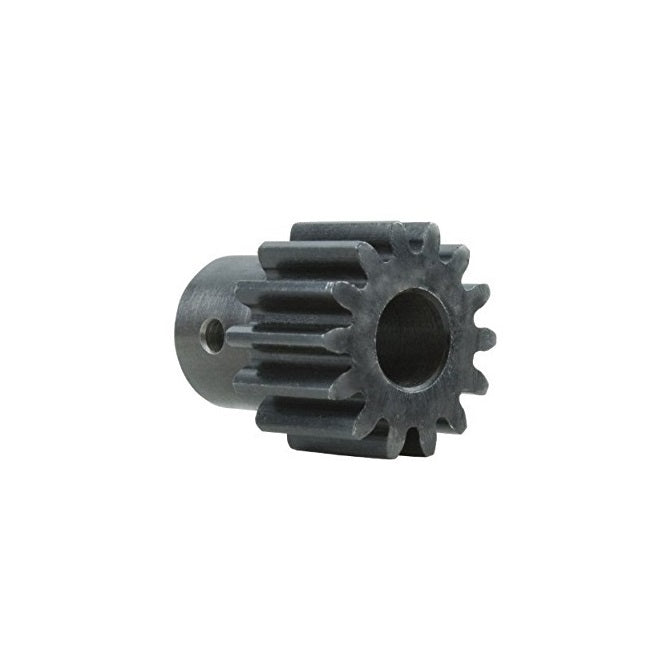

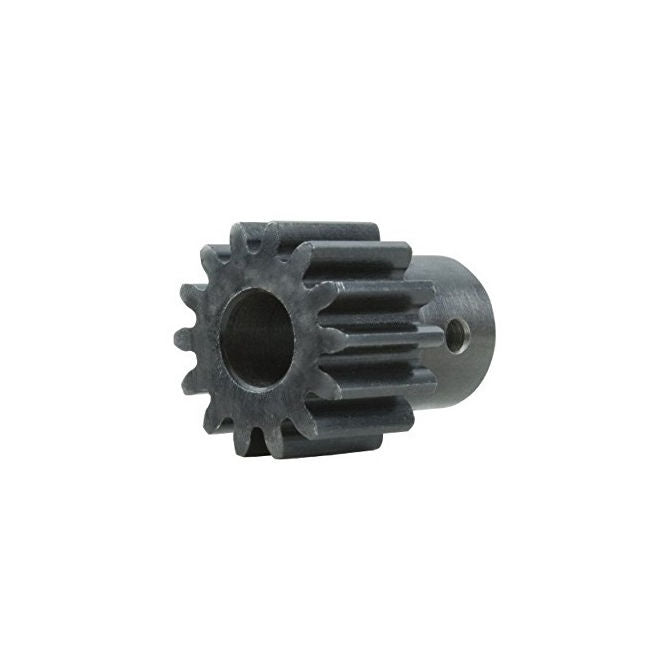

Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:24DP Gear Racks
Order 50 or more
for $108.86 AUD Each
12 tooth - 12.7x6.35 mm Spur Gears - Steel 0.20 carbon steel with no subsequent treatment - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel
Product Details
Number of Teeth: 12Steel 0.20 carbon steel with no subsequent treatment

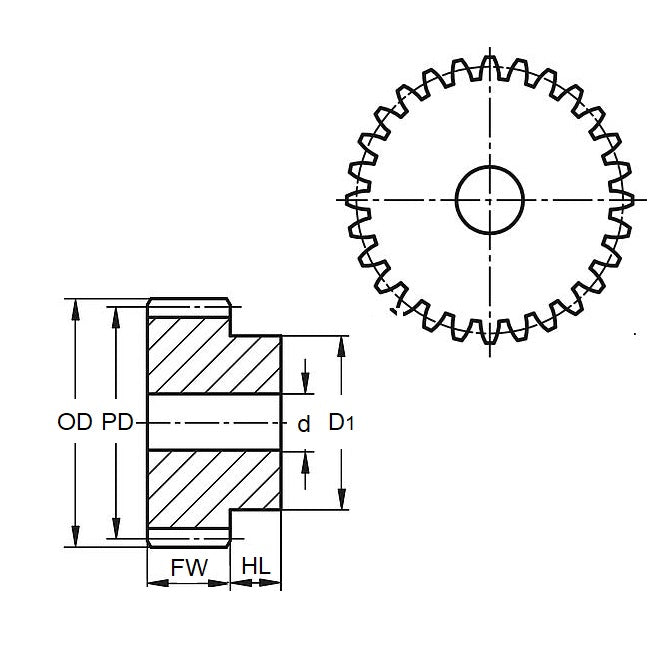

- Number of Teeth: 12
- Pitch Circle Diameter (PD): 12.700mm
(12.700mm is 0.5 in.)
- Bore (d): 6.350mm
(6.350mm is 0.25 in.)
- Outside Diameter (OD): 14.808mm
- Face Width (FW): 6.350mm
- Type: Hubbed
- Hub Diameter (D1): 9.144mm
- Hub Projection (HL): 7.874mm
- Locking Method: Set Screw
- Quality: Commercial
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- G013B12V24064064CG
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G013B012V24064064CG, G013B012V24
