WRE-0039-SQ-C (Each)

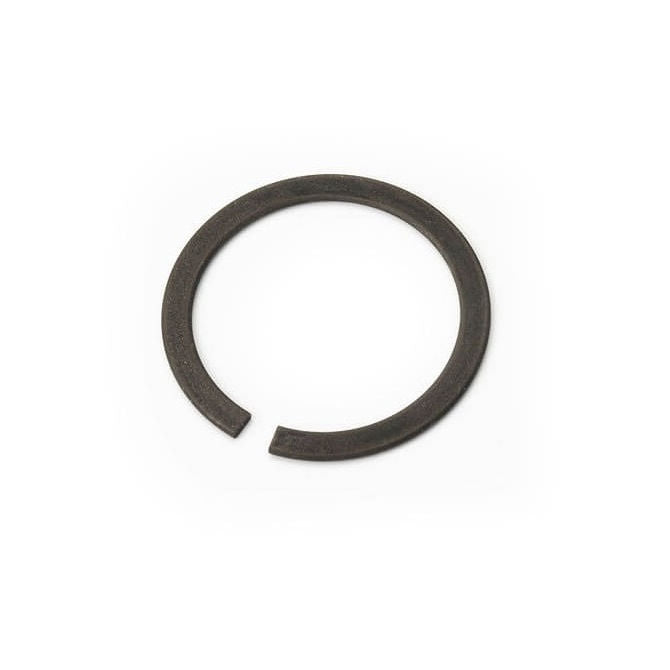

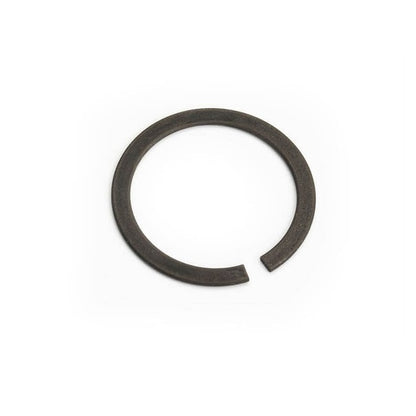

External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
5/32 inch Ring - 3.96x0.51x3.71 mm External Retaining Rings - Carbon Spring Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel
Product Details

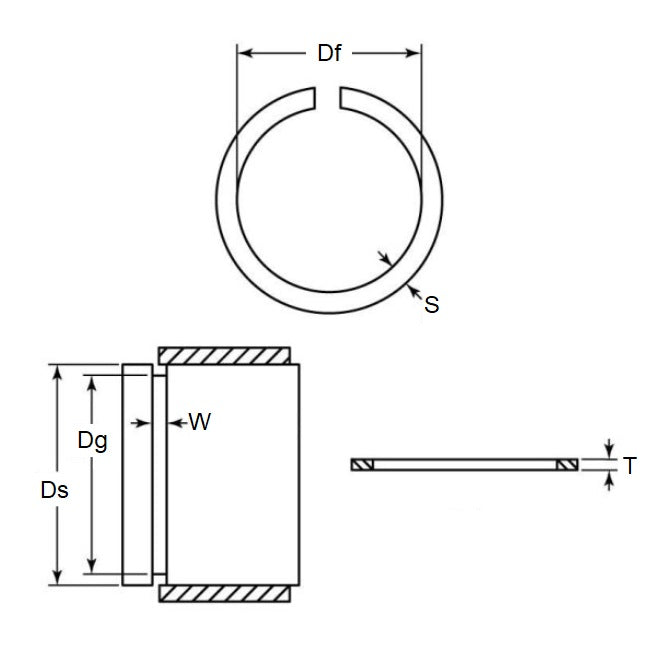

Shaft or Bearing OD (d1): 3.96mm(3.96mm is 0.156 in.)
Carbon Spring Steel
- Shaft or Bearing OD (d1): 3.96mm
(3.96mm is 0.156 in.)
- Clip Thickness (T): 0.51mm
+/- 0.08
(0.51mm is 0.02 in.)
- Groove Dia. (Dg): 3.71mm
+ 0.10 / - 0.00
(3.71mm is 0.146 in.)
- Approx. Loose Circlip ID (A): 3.68mm
+ 0.00 / - 2.00
- Radial Wall (S) Approx.: 0.51mm
+/- 0.08
- Groove Width (W): 0.61mm
- Approx. Loose Clip OD: 4.7
- Info: Axial Assembly - Closed Gap
- Section Profile: Square Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 300-1125
- Arcon® XSC-1125
- NoCor® XSC-1125
- XSC1125
- A07001125
- A0700-1125
- 3001125
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0039SQC, WRE0039
