WRE-0032-SQ-O

External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel

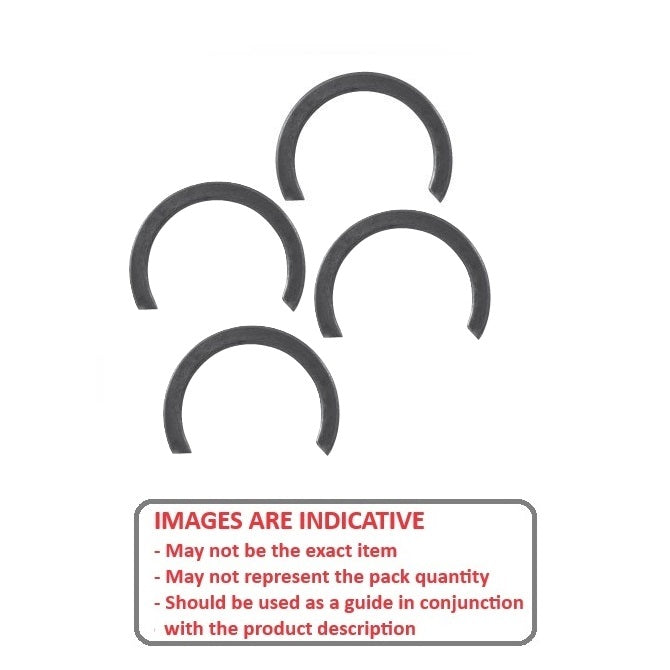

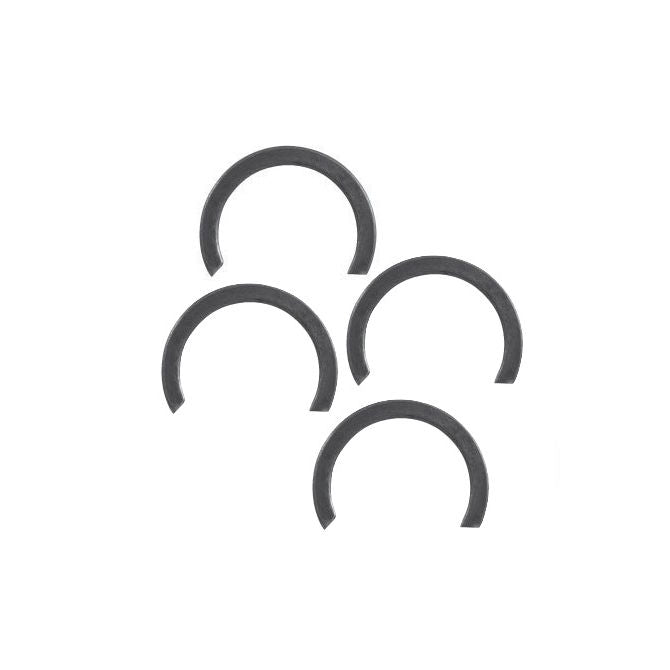

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Snap Rings and Spiral Rings PDF
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

Product Details

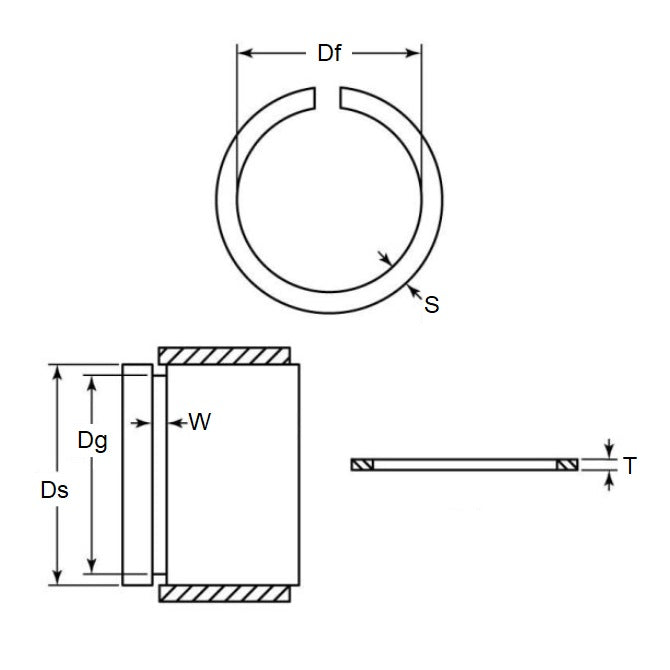

Shaft or Bearing OD (d1): 3.18mm
(3.18mm is 0.125 in.)

Carbon Spring Steel
  • Shaft or Bearing OD (d1): 3.18mm
    (3.18mm is 0.125 in.)
  • Clip Thickness (T): 0.51mm
    +/- 0.05
    (0.51mm is 0.02 in.)
  • Groove Dia. (Dg): 2.92mm
    + 0.08 / - 0.00
    (2.92mm is 0.115 in.)
  • Approx. Loose Circlip ID (A): 2.90mm
    + 0.00 / - 0.50
  • Radial Wall (S) min/max: 0.51mm
    +/- 0.05
  • Groove Width (W): 0.61mm
  • Approx. Loose Clip OD: 3.92
  • Info: Radial Assembly - Open Gap
  • Section Profile: Square Section

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Eaton 400-211
  • Arcon CSO-211
  • NoCor XSO-211
  • A0600211
  • A0600-211
  • CSO211
  • XSO211
  • 400211

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
