WRE-0175-SQ-O (Each)

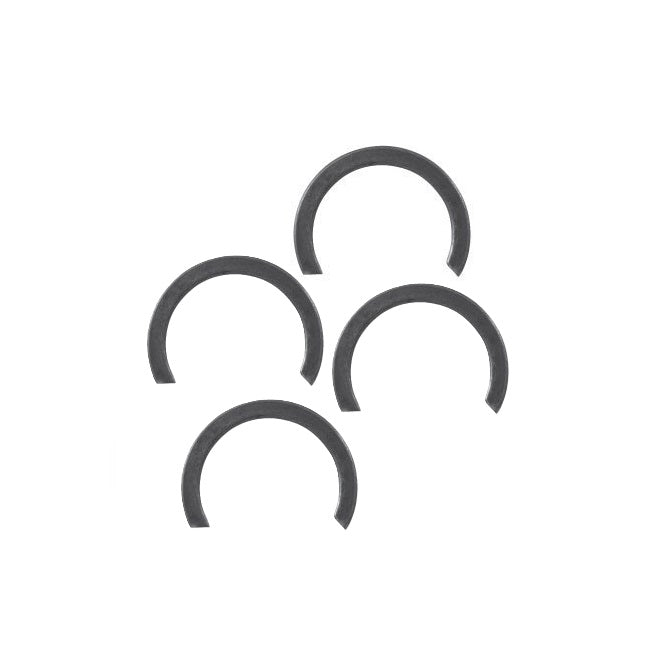

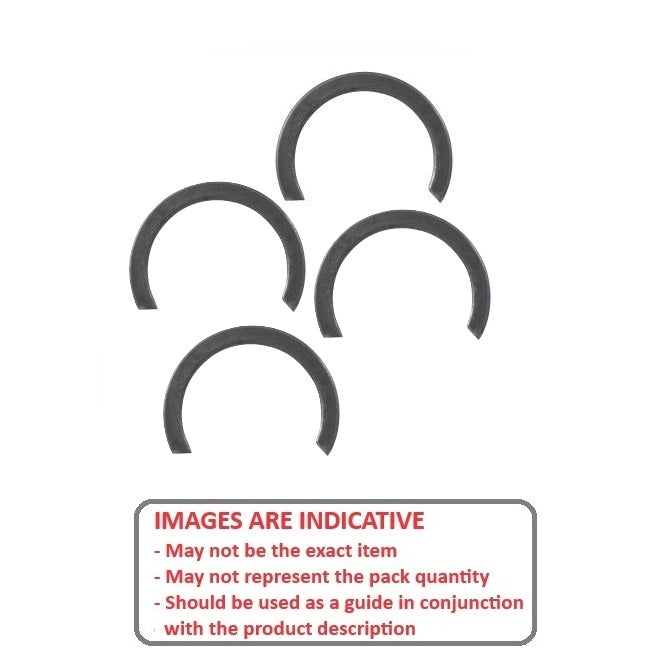

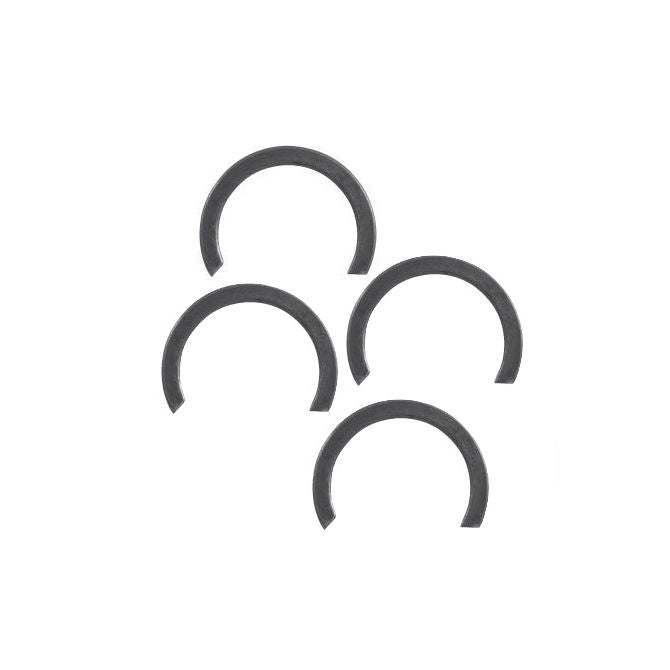

External Retaining Rings - 17.48x1.4x16.74 mm Snap Rings - Carbon Spring Steel
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
11/16 inch Ring - 17.48x1.4x16.74 mm External Retaining Rings - Carbon Spring Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel
Product Details

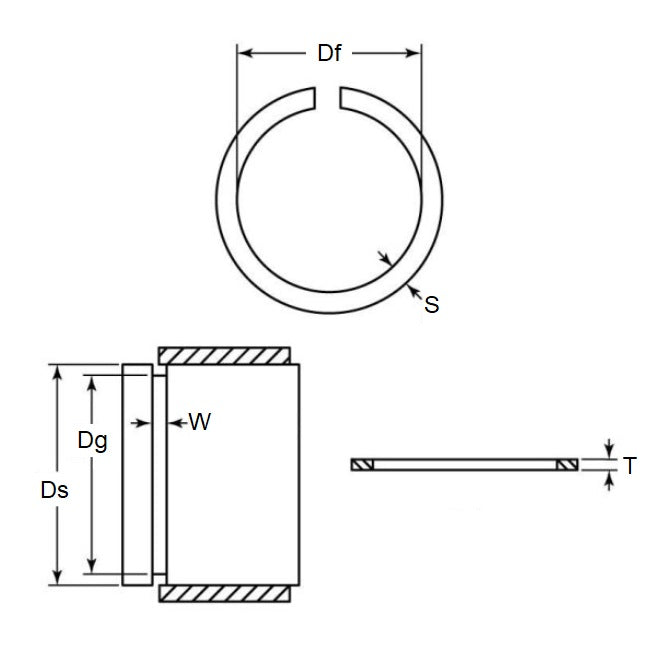

Shaft or Bearing OD (d1): 17.48mm(17.48mm is 0.688 in.)
Carbon Spring Steel
- Shaft or Bearing OD (d1): 17.48mm
(17.48mm is 0.688 in.)
- Clip Thickness (T): 1.40mm
+/- 0.05
(1.40mm is 0.055 in.)
- Groove Dia. (Dg): 16.74mm
+ 0.08 / - 0.00
(16.74mm is 0.659 in.)
- Approx. Loose Circlip ID (A): 16.59mm
+ 0.00 / - 0.65
- Radial Wall (S) Approx.: 1.40mm
+/- 0.05
- Groove Width (W): 1.58mm
- Approx. Loose Clip OD: 19.39
- Info: Radial Assembly - Open Gap
- Section Profile: Square Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 400-228
- Arcon® CSO-228
- NoCor® XSO-228
- XSO228
- A0600228
- A0600-228
- CSO228
- 400228
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0175SQO, WRE0175
