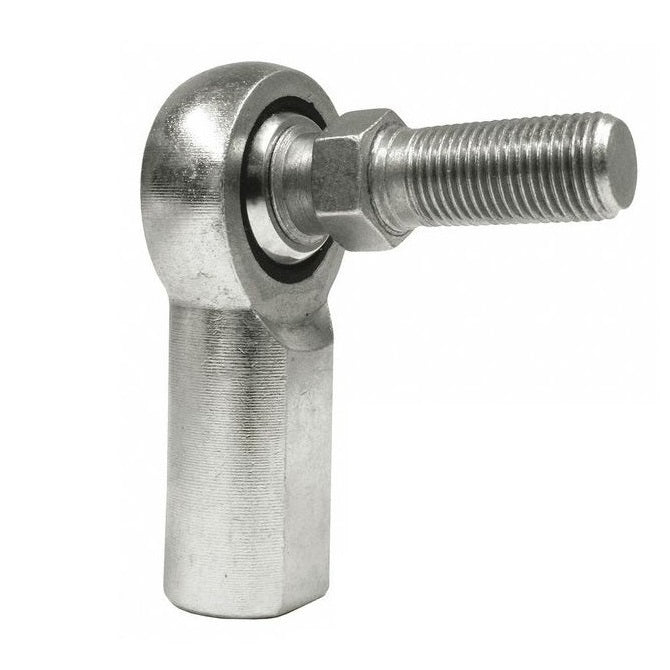

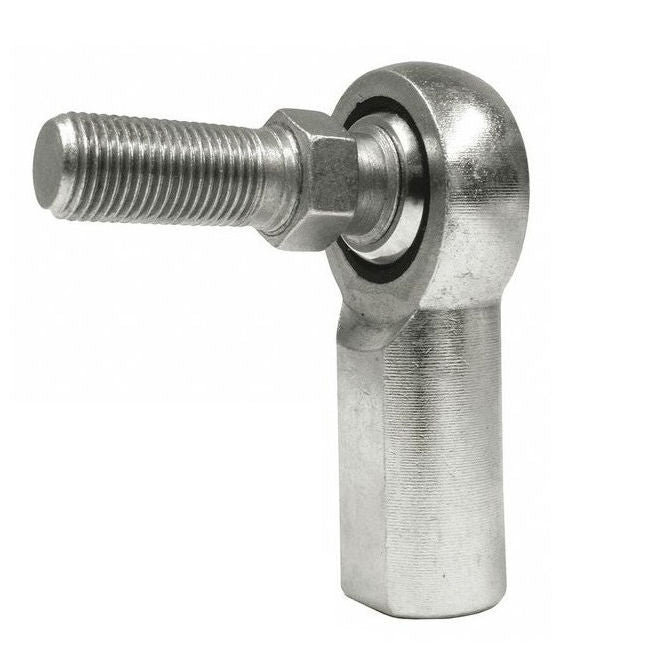

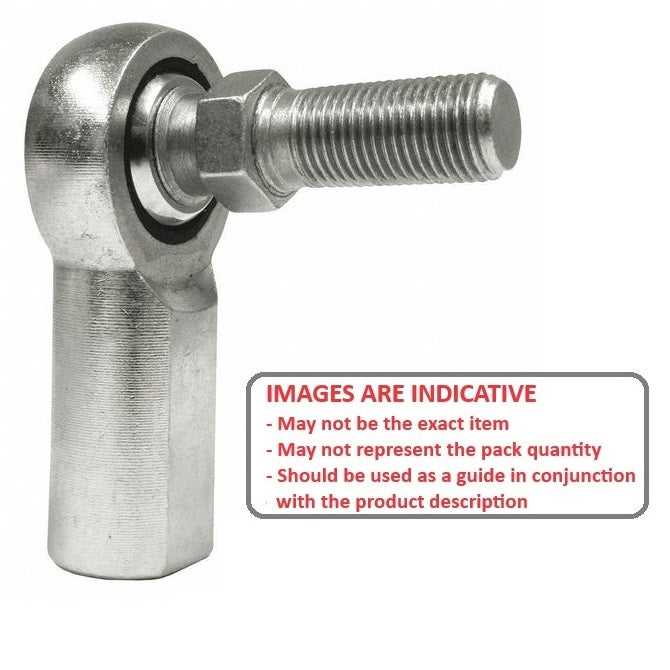

SPF7SRS (PK-50)
Female Rod Ends - 7/16-20 UNF - 11.11mm - Right Hand 26.19x26.98 mm Steel
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale7/16-20 UNF (11.11mm) Right Hand 26.19x26.98 mm Female Rod Ends - - Sold per pack of 50:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Studded - Nylon Seat
Product Details

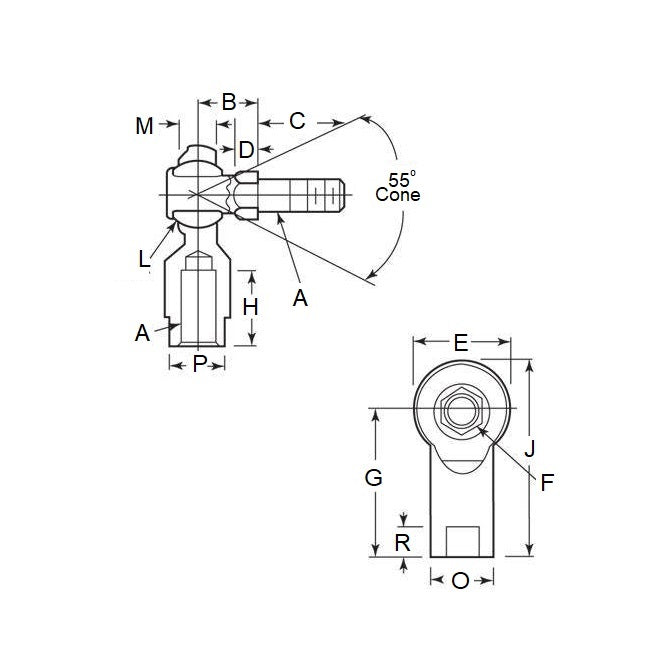

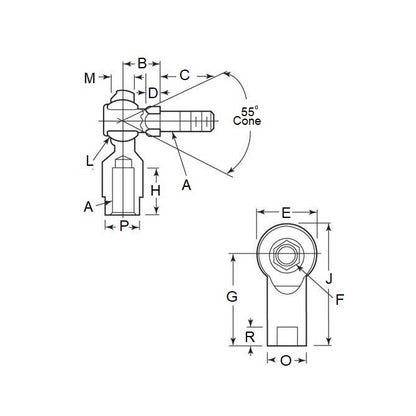

Thread Size: 7/16-20 UNF (11.11mm) Right Hand- Thread Size: 7/16-20 UNF (11.11mm) Right Hand
- Thread Length (H): 26.19mm
(26.19mm is 1.031 in.)
- Thread Length (C): 26.98mm
(26.98mm is 1.062 in.)
- Head Diameter (E): 28.58mm
- Centre Height (G): 46.03mm
- Top Width (M): 11.10mm
- Ball Width (L): 14.28mm
- Base Width: 19.05mm
- Base Length (P): 15.88mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® SPF-7S
- SPF7S
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
