SK040M-030-SK-T5 (PK-200)
Countersunk Screws - M4 - 4x0.7mm - 30 mm - Ti-6al4v Grade 5 Socket Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more packs of 200 (10000 pcs)
for $605.99 AUD per 200 pack
M4 (4x0.7mm) 30 mm - Ti-6al4v Grade 5 Countersunk Screws - Titanium Ti-Gr-5 - 6AL-4V - Sold per pack of 200:
Base Category: Screws - Countersunk
Top Level Category: Screws - Countersunk - Socket - Titanium Ti-Gr5 Ti-6Al4v - DIN7991

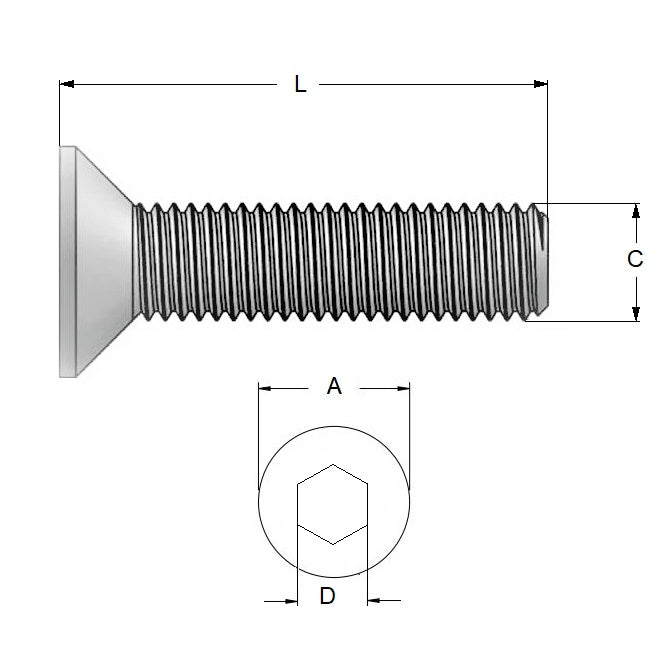

Product Details
Thread Size (C): M4 (4x0.7mm)Titanium Ti-Gr-5 - 6AL-4V
- Thread Size (C): M4 (4x0.7mm)
- Overall Length (L): 30mm
+/- 0.25
(30mm is 1.181 in.)
- Material: Ti-6al4v Grade 5
- Max Head Diameter: 7.5mm
- Max Head Height: 2.3mm
- Hex Key (s): 2.50mm
- Countersunk Angle: 90°
- Pitch: 0.700mm
- Threads Per Inch: 36.29TPI
- DIN7991
Brand: MBA
Country of Origin: TW
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SK040M030SKT5, SK040M030SK
