SK040M-030-SK-T5 - Datasheet
MBA
Category Information

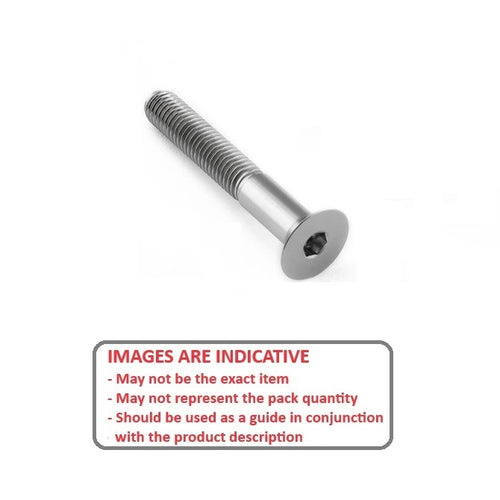

Screws - Countersunk - Socket - Titanium Ti-Gr5 Ti-6Al4v - DIN7991DIN7991 Titanium Ti-Gr5 Ti-6Al4v Socket Countersunk Screws. Flat Head Countersunk. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- An expanded range may be available on special order. Please enquire.
- Metric Sizes to DIN7991. Used in critical aircraft structural components. UNS R56400.
- ISO 10642
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Overall Length (L)
30
mm
+/- 0.25
(Equiv. 1.181 in.) - Material Ti-6al4v Grade 5
- Max Head Diameter 7.5 mm
- Max Head Height 2.3 mm
- Hex Key (s) 2.50 mm
- Countersunk Angle 90 °
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- DIN7991
- Material Titanium Ti-Gr-5 - 6AL-4V
