SK120M-020-SK-S6 (PK-2)
Countersunk Screws - M12 - 12x1.75mm - 20 mm - 316 Stainless Socket Screw
Brighton Best
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more packs of 2 (100 pcs)
for $2.17 AUD per 2 pack
Couldn't load pickup availability

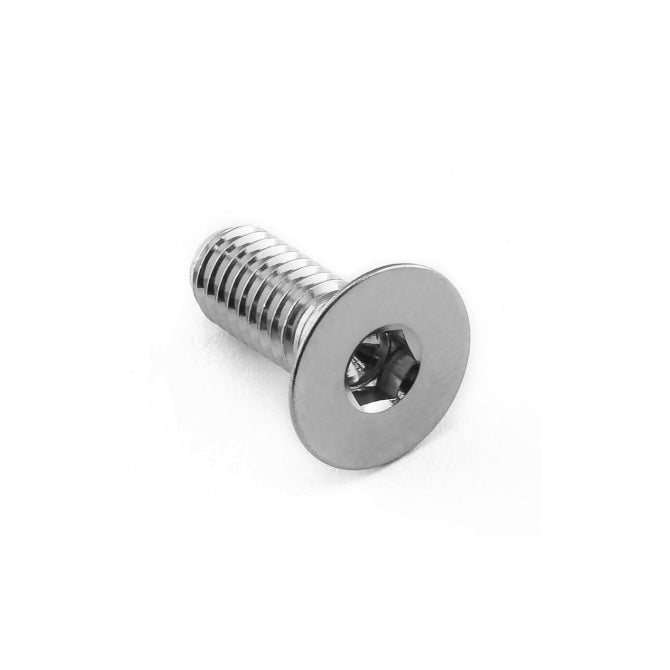

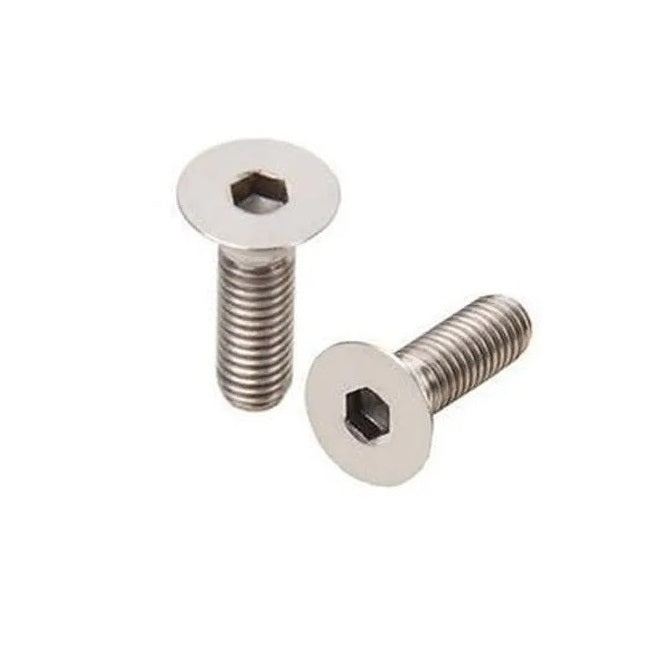

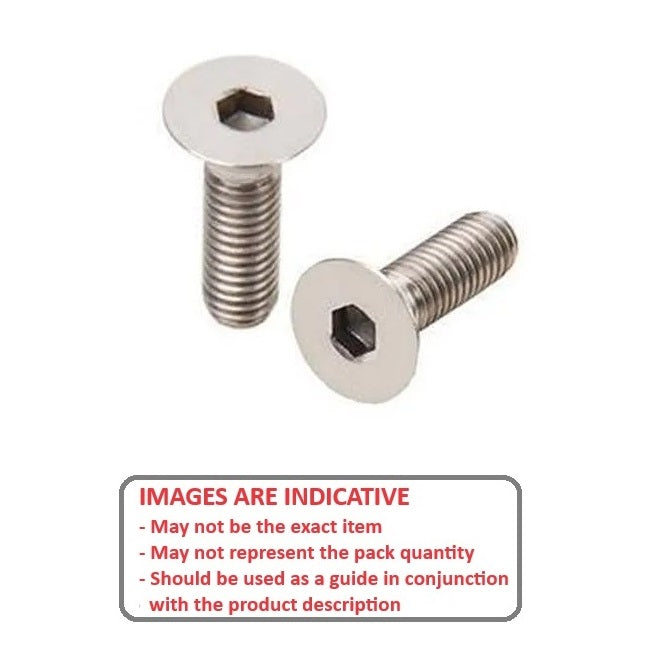

M12 (12x1.75mm) 20 mm - 316 Stainless Countersunk Screws - Stainless Steel 316 (Similar to A4, 18-10) - Sold per pack of 2:
Base Category: Screws - Countersunk
Top Level Category: Screws - Countersunk - Socket - 316 Stainless
Product Details

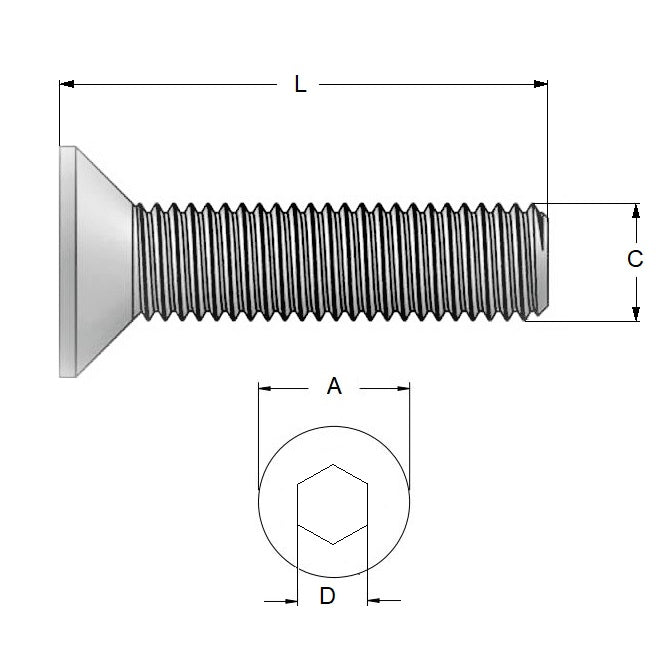

Thread Size (C): M12 (12x1.75mm)Stainless Steel 316 (Similar to A4, 18-10)
- Thread Size (C): M12 (12x1.75mm)
- Overall Length (L): 20mm
+/- 0.25
(20mm is 0.787 in.)
- Material: 316 Stainless
- Head Diameter (D): 22.0mm
- Max Head Height: 6.5mm
- Minimum Thread Length (l): 13.5mm
- Hex Key (s): 8.00mm
- Countersunk Angle: 90°
- Pitch: 1.750mm
- Threads Per Inch: 14.51TPI
- Standard: DIN7991
Brand: Brighton Best
Country of Origin: TW
Product Compliance and Data
Similar to
- Brighton Best® 862192
- ALTPART
- 93395A471
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SK120M020SKS6, SK120M020SK
