SK120M-020-SK-S6 - Datasheet
Brighton Best
Category Information

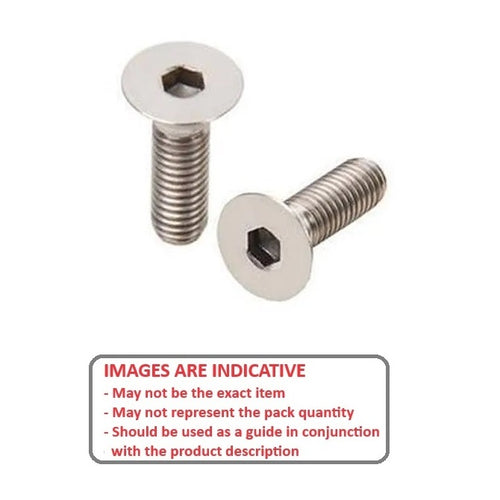

Screws - Countersunk - Socket - 316 Stainless316 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : M12 (12x1.75mm)
- Overall Length (L)
20
mm
+/- 0.25
(Equiv. 0.787 in.) - Material 316 Stainless
- Head Diameter (D) 22.0 mm
- Max Head Height 6.5 mm
- Minimum Thread Length (l) 13.5 mm
- Hex Key (s) 8.00 mm
- Countersunk Angle 90 °
- Pitch 1.750 mm
- Threads Per Inch 14.51 TPI
- Standard DIN7991
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 862192
- 93395A471
