WGS1-100-040-080-R-ACS (Each)

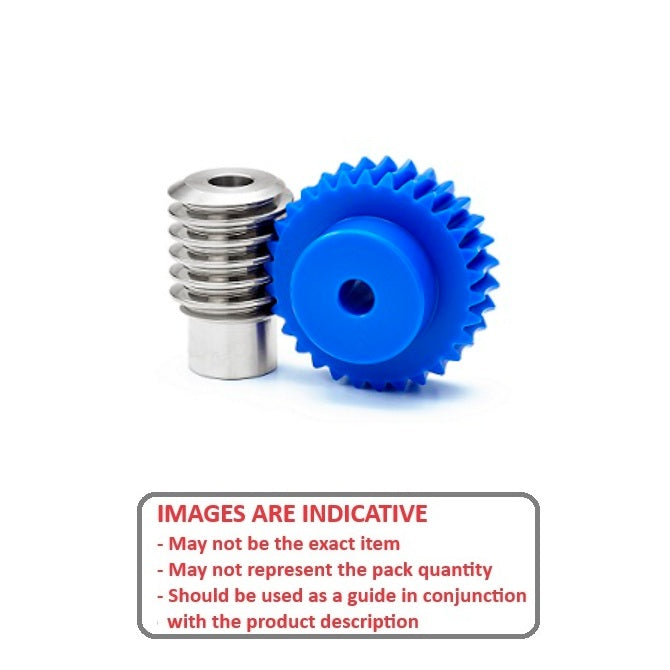

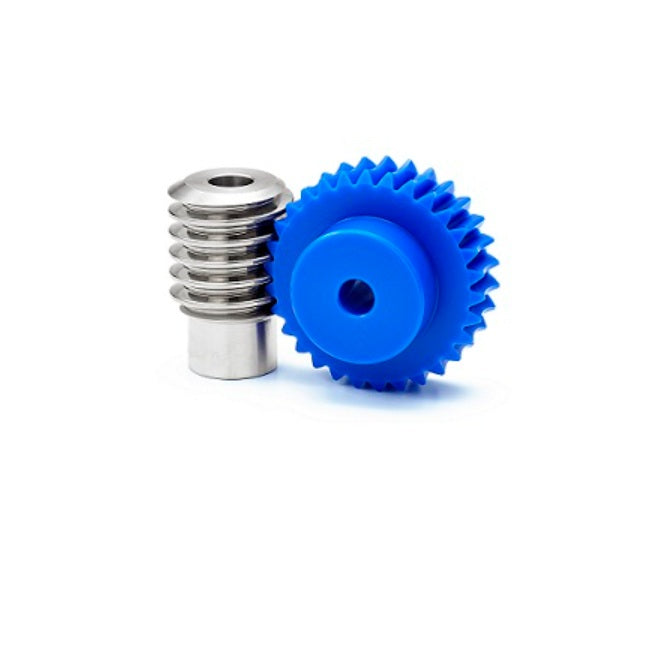

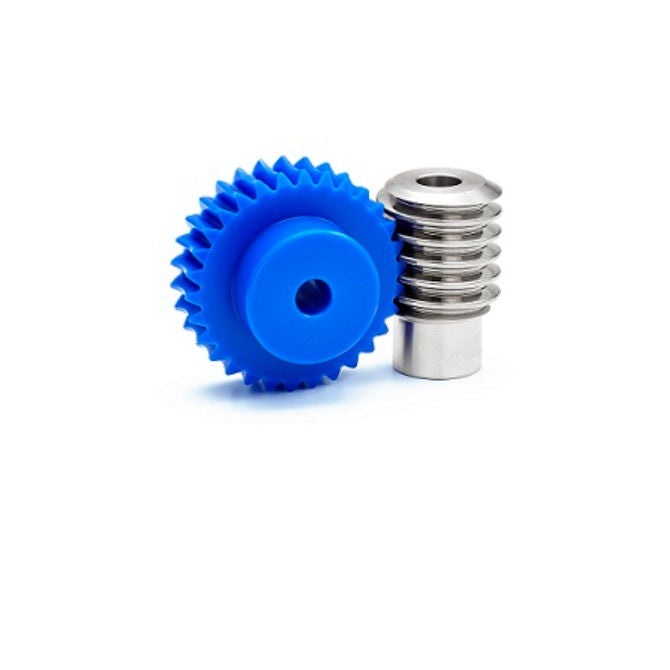

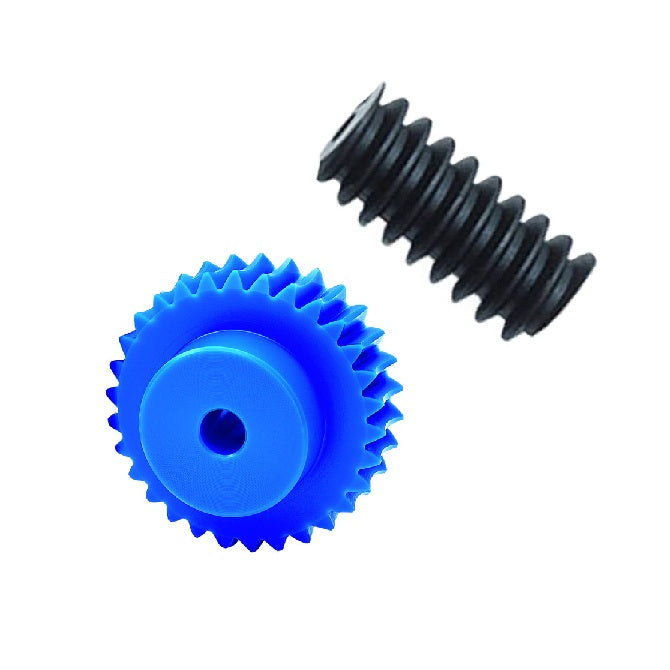

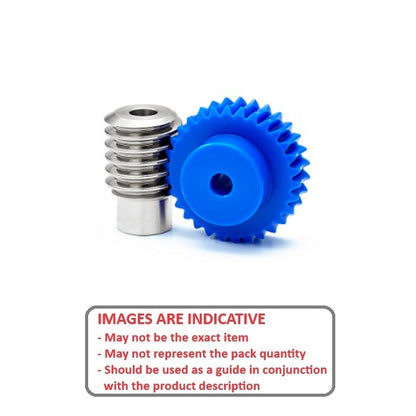

Worm Sets Gears - Pitch Module 1.0 - 40 tooth - 8.00 / 6.00 Module 1 - Polyacetal Gear and Steel Worm
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCouldn't load pickup availability
Pitch Module 1.0 - 40 tooth - 8.00 / 6.00 Worm Sets Gears - Polyacetal Gear and Steel Worm - Sold Per Each:
Base Category: Gears - Worm Sets
Top Level Category: Gears - Worm Sets - Module 1
Product Details
Deleted Item. Available while stocks last.
Pitch: Module 1.0
Polyacetal Gear and Steel Worm
- Pitch: Module 1.0
- Teeth: 40
- Bores (Gear / Worm): 8.00 / 6.00mm
(8.00 / 6.00mm is 0.315 in.)
- Direction: Right Hand
- Ratio: 40 to 1
- Lead Angle: 1Deg
- Face Width (b): 10.00mm
- Hub Diameter: 30.00mm
- Centre Distance (A): 28.5mm
- Gear Length (l): 18mm
- Hub Projection (lh): 8mm
- Gear Pitch Diameter (da): 40.00mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
