WGS1-100-040-080-R-ACS - Datasheet

MBA

Category Information

Gears - Worm Sets - Module 1

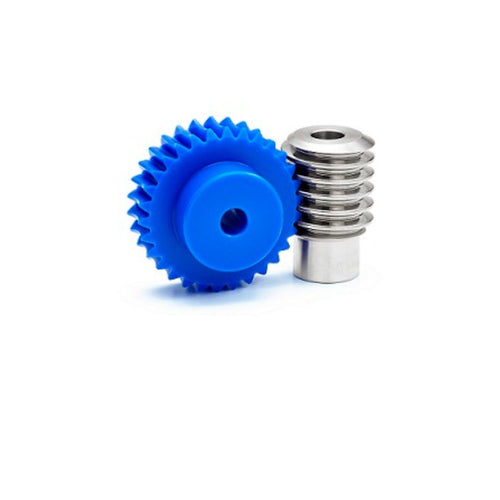

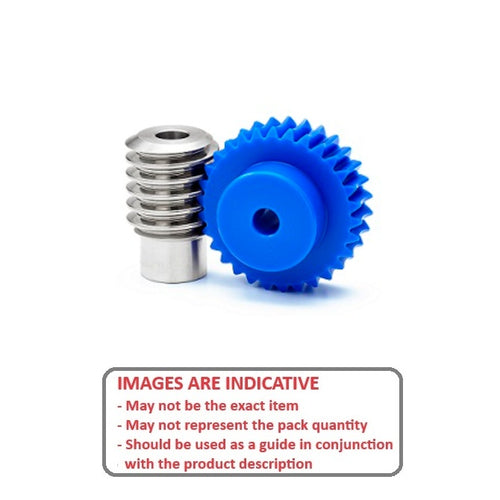

Module 1 Worm Sets Gears. This is the main category in this series

  • Acetal gear and steel worm sets.
  • Metric sets only.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Pitch : Module 1.0
  • Teeth 40
  • Bore (dd) 8.00 mm
    (Equiv. 0.315 in.)
  • Direction Right Hand
  • Ratio 40 to 1
  • Lead Angle 1 Deg
  • Face Width (b) 10.00 mm
  • Hub Diameter 30.00 mm
  • Centre Distance (A) 33 mm
  • Gear Length (l) 18 mm
  • Hub Projection (lh) 8 mm
  • Tip Diameter (da) 43.5 mm
  • Material Polyacetal and Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • G1BP40R1
