WGS1-100-100-100-R-ACS

Worm Sets Gears - Pitch Module 1.0 - 100 tooth - 10 mm Module 1 - Polyacetal and Steel Gear

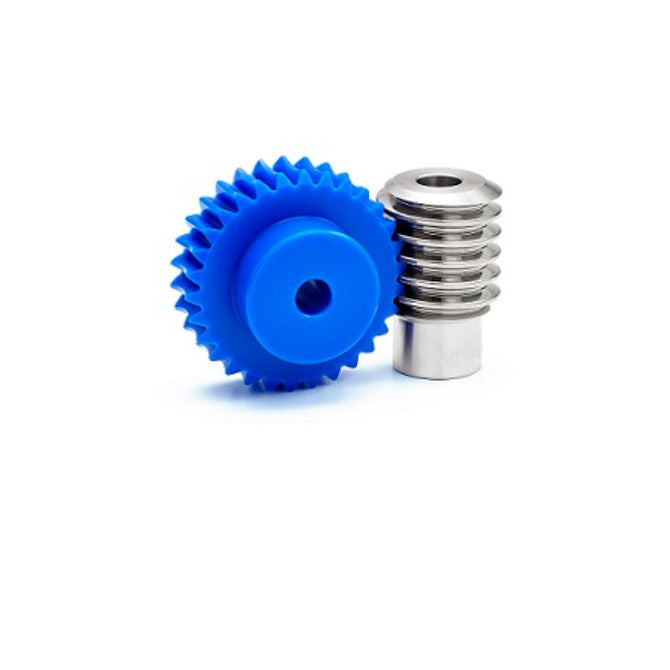

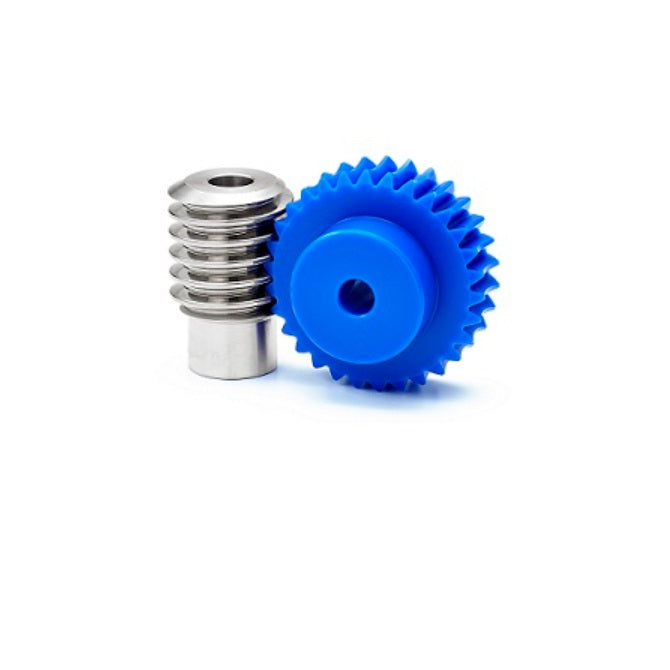

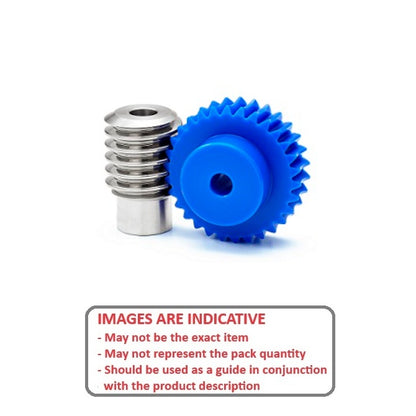

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Worm Sets Gears - Pitch 1 - 100 - 10 mm - Polyacetal and Steel
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$174.32 AUD
$174.32 AUD
Excludes GST and overseas Taxes & Duties
 Each
Backorder
Order 50 or more for $156.89 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Oct 20, 2025

Base Category: Gears - Worm Sets

Top Level Category: Gears - Worm Sets - Module 1

Product Details

Pitch: Module 1.0

Polyacetal and Steel
  • Pitch: Module 1.0
  • Teeth: 100
  • Bore (dd): 10.00mm
    (10.00mm is 0.394 in.)
  • Direction: Right Hand
  • Ratio: 100 to 1
  • Lead Angle: 1Deg
  • Face Width (b): 10.00mm
  • Hub Diameter: 60.00mm
  • Centre Distance (A): 58mm
  • Gear Length (l): 18mm
  • Hub Projection (lh): 8mm
  • Tip Diameter (da): 103.5mm

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • G1BP100R1

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
