WGS1-100-100-100-R-ACS - Datasheet

MBA

Category Information

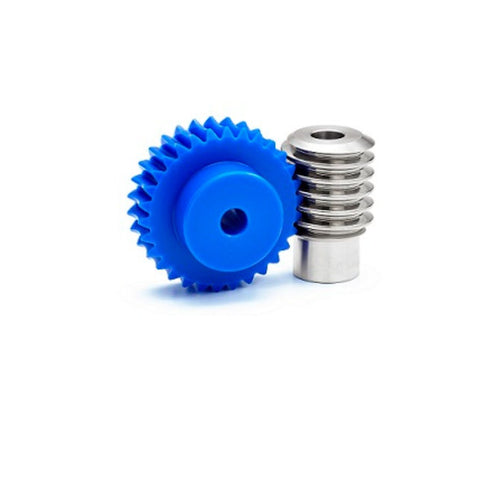

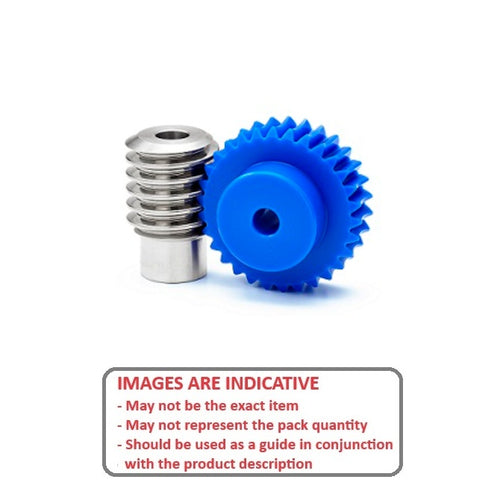

Gears - Worm Sets - Module 1

Module 1 Worm Sets Gears. This is the main category in this series

  • Acetal gear and steel worm sets.
  • Metric sets only.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Pitch : Module 1.0
  • Teeth 100
  • Bore (dd) 10.00 mm
    (Equiv. 0.394 in.)
  • Direction Right Hand
  • Ratio 100 to 1
  • Lead Angle 1 Deg
  • Face Width (b) 10.00 mm
  • Hub Diameter 60.00 mm
  • Centre Distance (A) 58 mm
  • Gear Length (l) 18 mm
  • Hub Projection (lh) 8 mm
  • Tip Diameter (da) 103.5 mm
  • Material Polyacetal and Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • G1BP100R1
