WM1R-080-080-200-CS (Each)

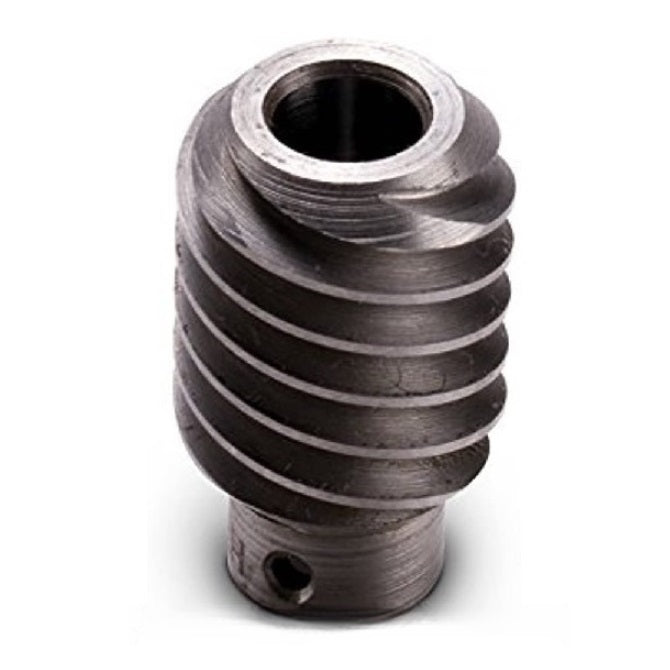

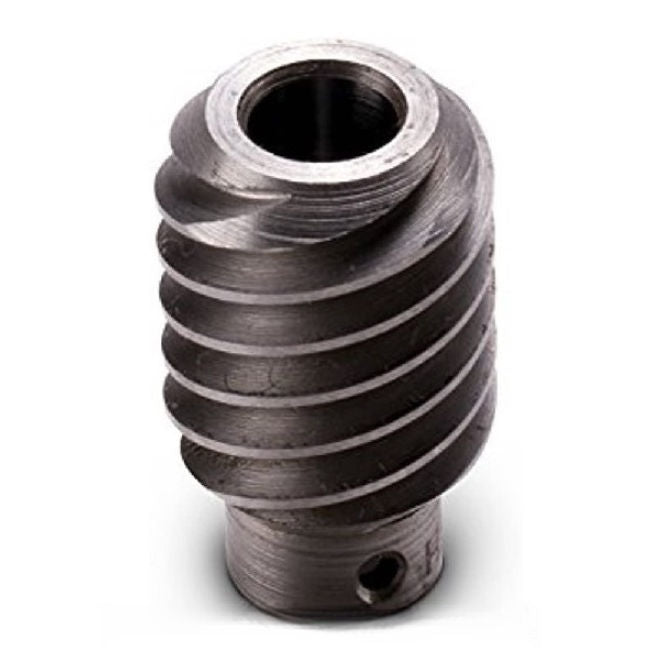

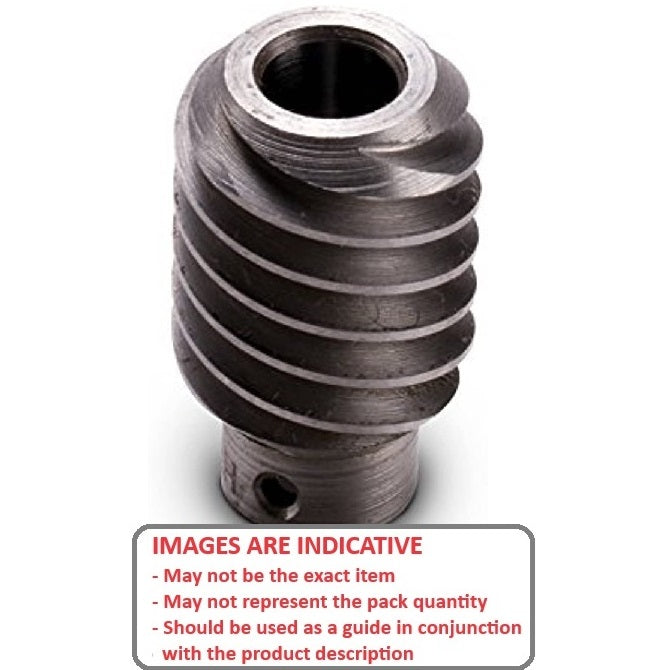

Worm Gears - Pitch Module 0.8 - Worm - 1 Start tooth - 4 Deg 24 Min Module 0.8 - Carbon Steel
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePitch Module 0.8 - Worm - 1 Start tooth - 4 Deg 24 Min Worm Gears - Carbon Steel - Sold per Each:
Base Category: Gears - Worm
Top Level Category: Gears - Worm - Module 0.8
Product Details
Pitch: Module 0.8Carbon Steel
- Pitch: Module 0.8
- Teeth: Worm - 1 Start
- Lead Angle: 4 Deg 24 Min
- Direction: Right

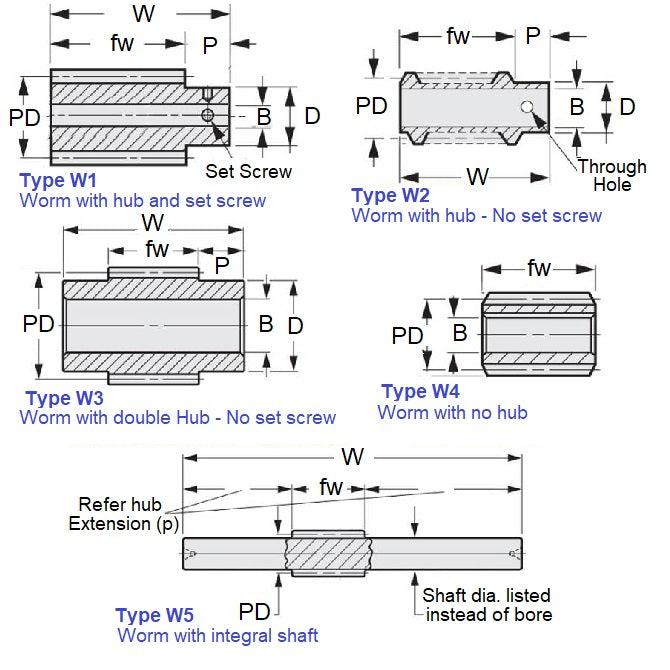

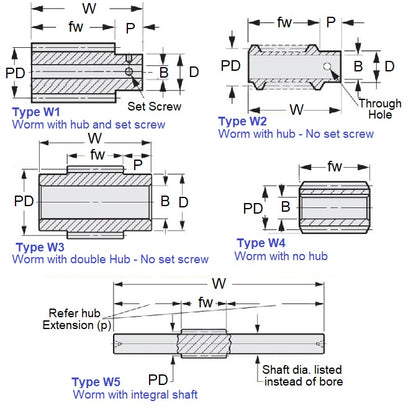

- Bore (B): 20.000
- Overall Length (l): 80.00
- Pitch Diameter (C): 10.4mm
- Face Width (fw): 8.00mm
- Bore Type: Shaft
- Hub Diameter (Dh): 8.00mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- WM1R080080200RCS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WM1R080080200CS, WM1R080080
