G010S-010-M1-120-013P-C (Each)

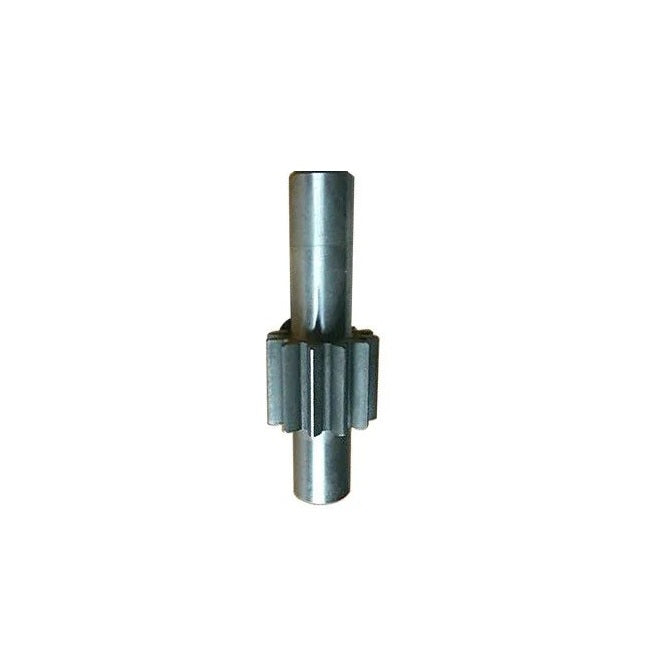

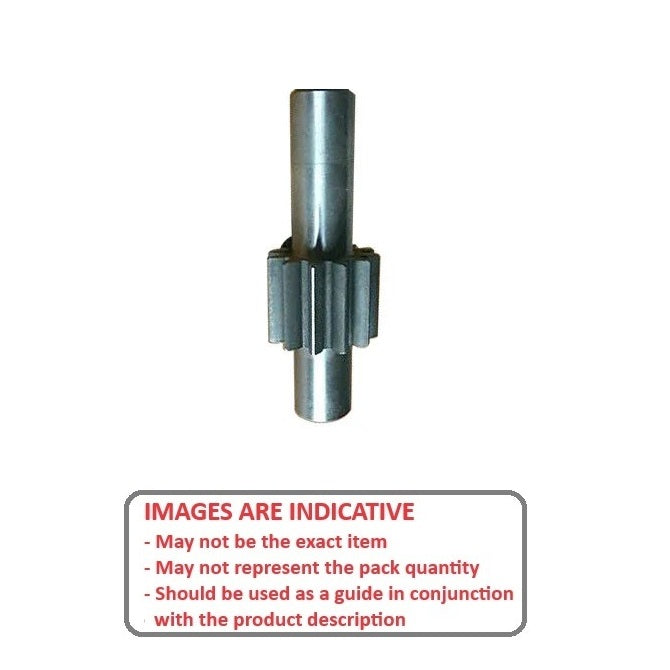

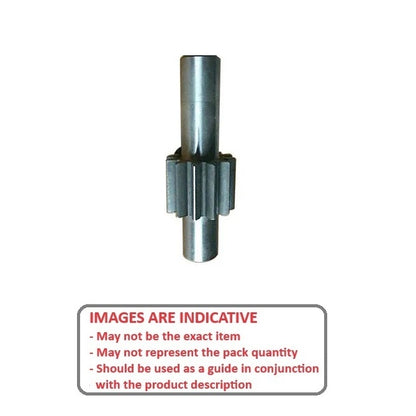

Spur Gears - 10 tooth - 10x12.66 mm Stem - Carbon Steel S45C Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $31.13 AUD Each
10 tooth - 10x12.66 mm Spur Gears - Carbon Steel S45C - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Stem - Module 1 - Steel
Product Details
Number of Teeth: 10Carbon Steel S45C

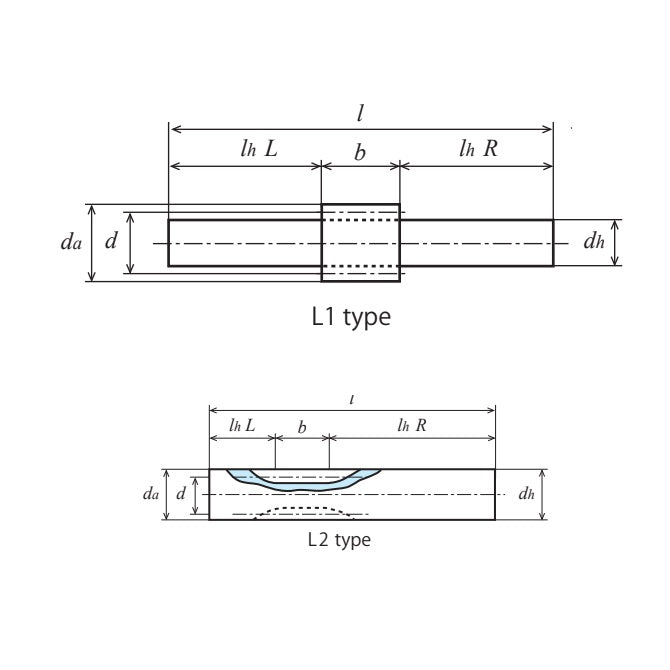

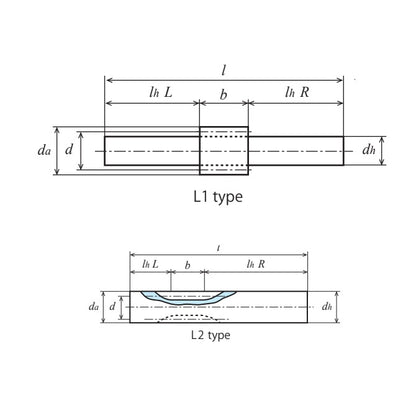

- Number of Teeth: 10
- Pitch Circle Diameter (PD): 10.00mm
(10.00mm is 0.394 in.)
- Stem Diameter (D1): 12.66mm
(12.66mm is 0.498 in.)
- Face Width (FW): 12.00mm
- Type: Extended Shaft
- Right Stem Length (RS: 32.00mm
- Left Stem Length (LS): 16
- Hardness: Unhardened
- Quality: N8 (JIS B 1702-1)
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- S1S10L1212F
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G010S010M1120013PC, G010S010M1
