G010S-010-M1-120-013P-C - Datasheet
MBA
Category Information

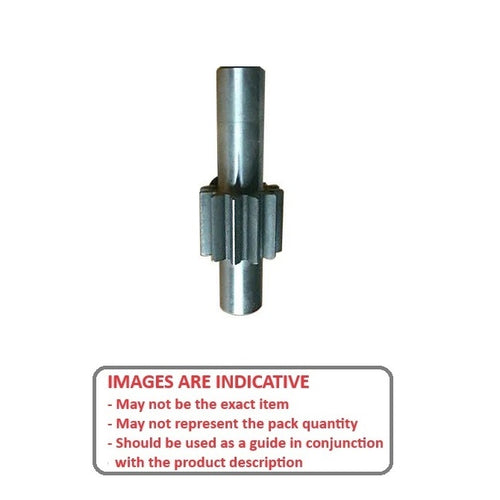

Gears - Spur - Stem - Module 1 - SteelSteel Module 1 Stem Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.
- Gears with integral shafts.

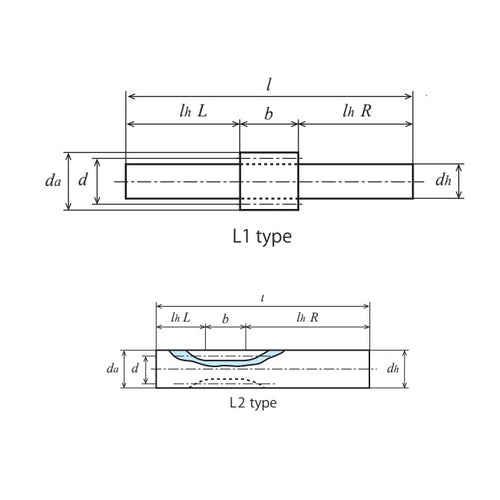

Product Data
- Number of Teeth : 10
- Pitch Circle Diameter (PD)
10.00
mm
(Equiv. 0.394 in.) - Stem Diameter (D1)
12.66
mm
(Equiv. 0.498 in.) - Face Width (FW) 12.00 mm
- Type Extended Shaft
- Right Stem Length (RS 32.00 mm
- Left Stem Length (LS) 16
- Hardness Unhardened
- Quality N8 (JIS B 1702-1)
- Material Carbon Steel S45C
Product Compliance and Data
Additional Resources
Cross References
- S1S10L1212F
