G120B-120-M1-090-120-A-PD (Each)

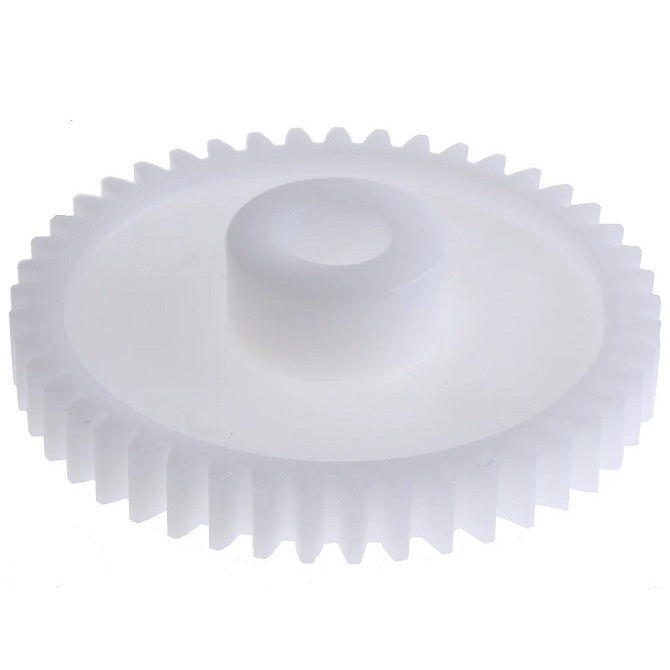

Spur Gears - 120 tooth - 120x12 mm Hubbed - Acetal - No Insert Gear

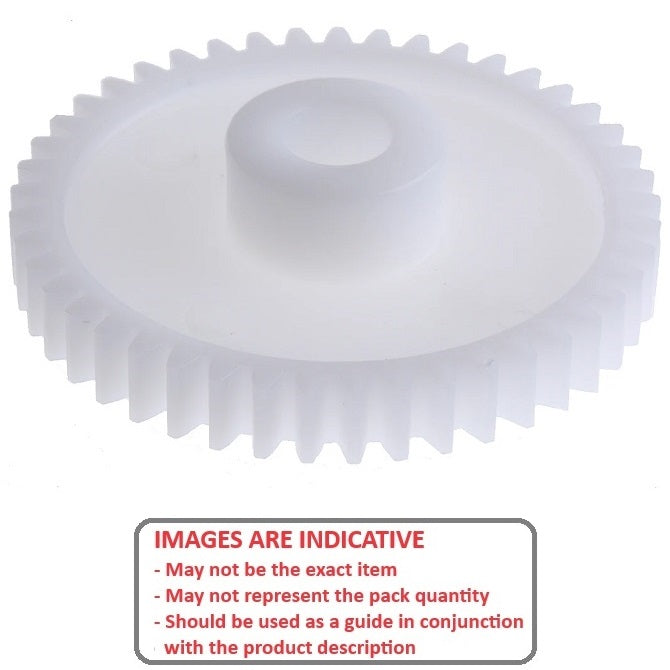

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spur Gears - 120 tooth - 120x12 mm Hubbed - Acetal - No Insert Gear
1 3

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Module 1 Gear Racks
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

120 tooth - 120x12 mm Spur Gears - Acetal - No Insert - Sold per Each:

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Hubbed - Module 1 - Plastic

Product Details

Number of Teeth: 120

Acetal - No Insert

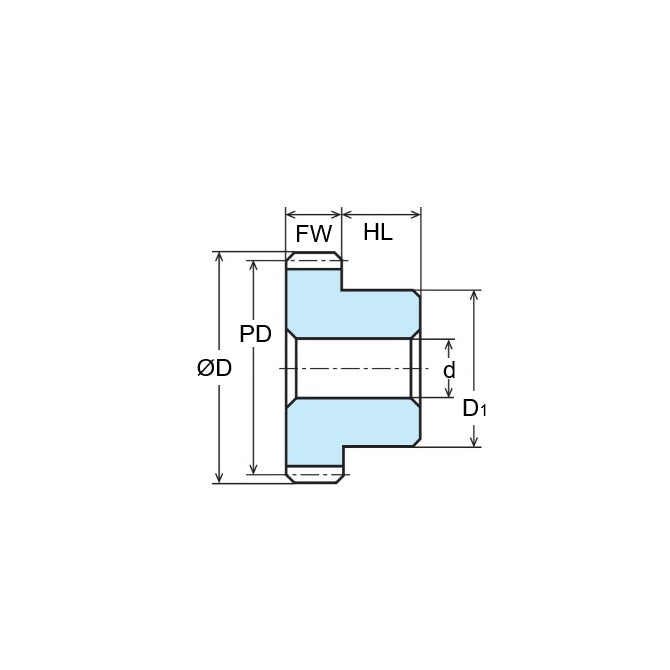

  • Number of Teeth: 120
  • Pitch Circle Diameter (PD): 120.00mm
    (120.00mm is 4.724 in.)
  • Bore (d): 12.000mm
    (12.000mm is 0.472 in.)
  • Outside Diameter (OD): 122.000mm
  • Face Width (FW): 9.000mm
  • Type: Hubbed
  • Hub Diameter (D1): 24.00
  • Hub Projection (HL): 9.00
  • Locking Method: None
  • Quality: Commercial - Molded

Brand: MBA
Country of Origin: US

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G120B120M1090120APD, G120B120M1
View full details
