CP-064-064-28-030-K

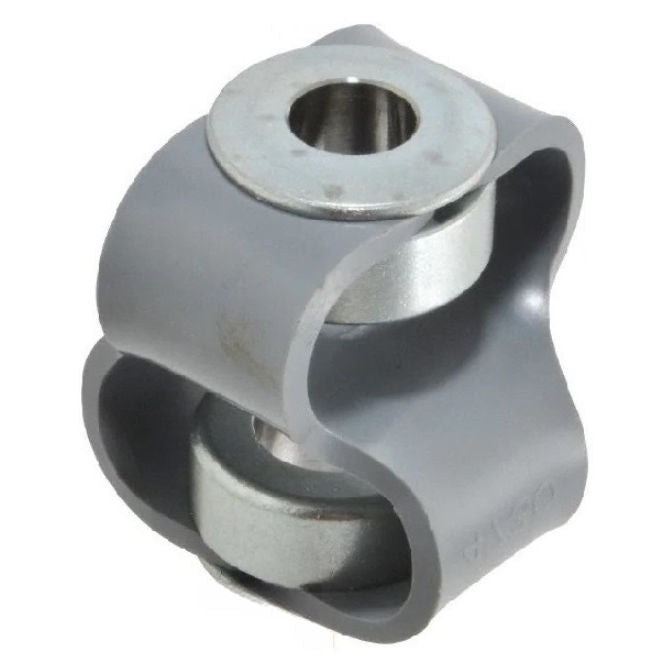

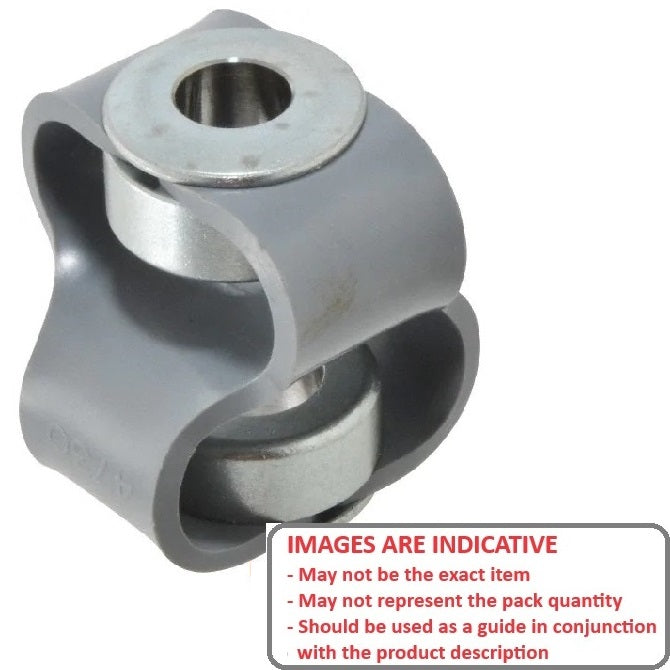

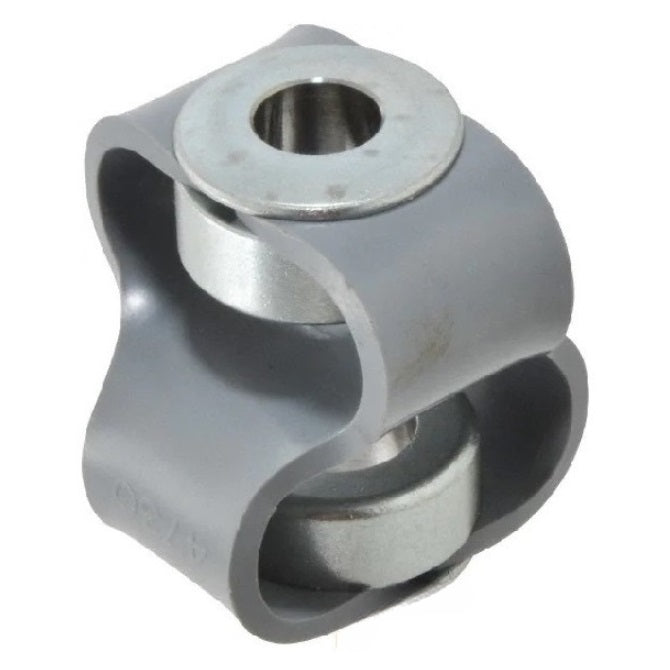

Name: CP-064-064-28-030-K - K Type Couplings - 6.35x6.35x28 mm
Brand: MBA
SKU: CP06406428030K
Availability: OutOfStock

K Type Couplings - 6.35x6.35x28 mm

1 0

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Couplings - K Type

Special Order Only

Product Details

Bore (d1): 6.350mm
_{(6.350mm is 0.25 in.)}

Bore (d1): 6.350mm
_{(6.350mm is 0.25 in.)}
Bore (d1): 6.350mm
_{(6.350mm is 0.25 in.)}
Major Dia. (D): 28.0mm
_{(28.0mm is 1.102 in.)}
Overall Length (L): 30.0mm
Hub Height (H): 5.00mm
Max Axial Displacement: 4.5mm
Max Torque Capacity: 0.34N.m
Max Angular Misalignment: 10.0Deg.
Max Radial Misalignment: 2.4mm
Material (Hub / Body): Zinc Plated Steel / Polyurethane

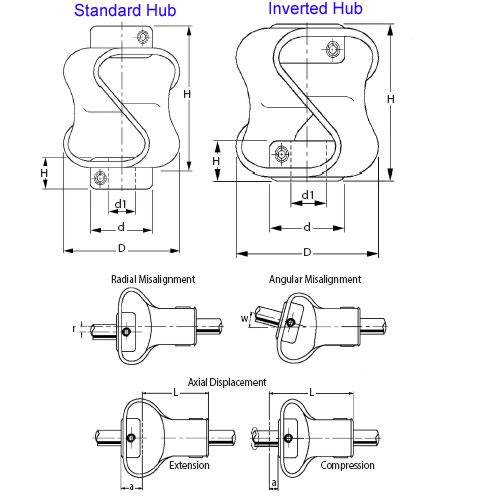

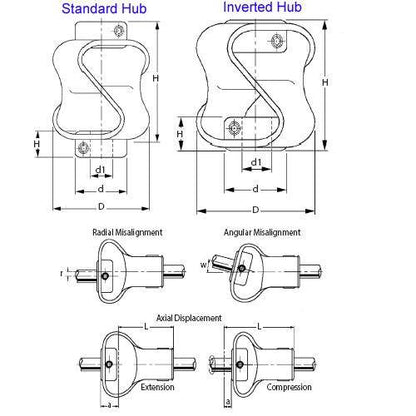

Figure Number: Figure 1 - Standard Hub
Hub Diameter (d): 17.5mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
6183K33
A5Z7-10808
A5Z710808

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
