Couplings - K Type

Couplings -> K Type

There are 17 products in the sub-categories of Couplings - K Type. Browse the Couplings - K Type products table.

Category Details

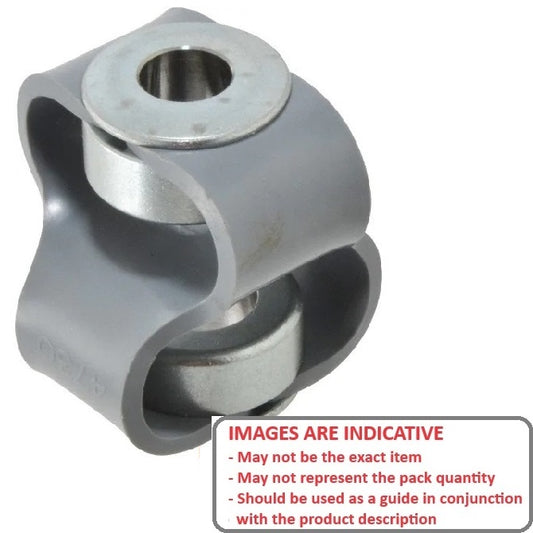

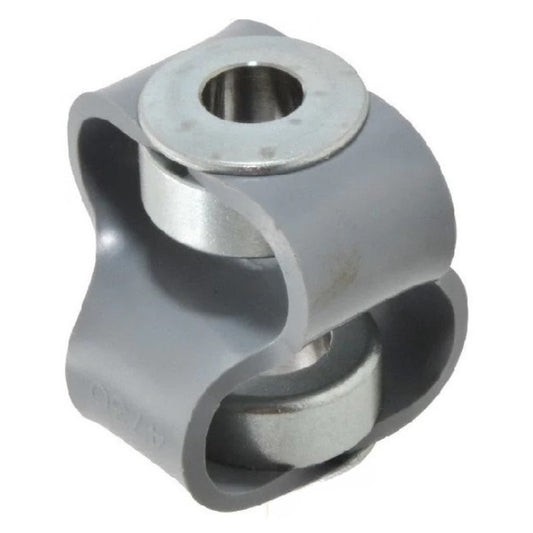

A selection of K Type Couplings. Up to 3600 RPM - Minus 20 to Plus 60o C. 0.34 to 18 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Strong, flexible polyurethane or Hyrtel(R) is cut and tear resistant.
  • Up to 3600 RPM.
  • Urethane: Minus 20 to Plus 60o C / Hyrtel(R) : Minus 40 to Plus 100o C.
  • Precision swaged mechanically crimped hubs.
  • Annealed steel hubs.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Couplings - K Type category on the Small Parts & Bearings online store.
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Hub Height (H) Max Axial Displacement Indicative
Bore (d1)
4.762
mm

(Equiv. 0.187 in.)
Bore (d1)
4.762
mm

(Equiv. 0.187 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-048-048-28-030-K
K Type Couplings - 4.762x4.762x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Indicative
Bore (d1)
4.762
mm

(Equiv. 0.187 in.)
Bore (d1)
4.762
mm

(Equiv. 0.187 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-048-048-28-030-K
K Type Couplings - 4.762x4.762x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
6.000
mm

(Equiv. 0.236 in.)
Bore (d1)
6.000
mm

(Equiv. 0.236 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-060-060-28-030-K
K Type Couplings - 6x6x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
6.000
mm

(Equiv. 0.236 in.)
Bore (d1)
6.000
mm

(Equiv. 0.236 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-060-060-28-030-K
K Type Couplings - 6x6x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-064-064-28-030-K
K Type Couplings - 6.35x6.35x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-064-064-28-030-K
K Type Couplings - 6.35x6.35x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Major Dia. (D)
43.0
mm

(Equiv. 1.693 in.)
Overall Length (L)
50.8
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber
Material: Steel and Rubber    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber Coupling
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 25, 2025
$130.86 AUD
$130.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
Major Dia. (D)
43.0
mm

(Equiv. 1.693 in.)
Overall Length (L)
50.8
mm
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber
Material: Steel and Rubber    Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber Coupling
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 25, 2025
$130.86 AUD
$130.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-079-079-28-030-K
K Type Couplings - 7.938x7.938x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-079-079-28-030-K
K Type Couplings - 7.938x7.938x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-079-079-47-048-K
K Type Couplings - 7.938x7.938x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Bore (d1)
7.938
mm

(Equiv. 0.313 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-079-079-47-048-K
K Type Couplings - 7.938x7.938x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
Major Dia. (D)
25.4
mm

(Equiv. 1 in.)
Overall Length (L)
28.6
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-080-080-28-030-K
K Type Couplings - 8x8x25.4 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
Major Dia. (D)
25.4
mm

(Equiv. 1 in.)
Overall Length (L)
28.6
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-080-080-28-030-K
K Type Couplings - 8x8x25.4 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-095-095-28-030-K
K Type Couplings - 9.525x9.525x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
28.0
mm

(Equiv. 1.102 in.)
Overall Length (L)
30.0
mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-095-095-28-030-K
K Type Couplings - 9.525x9.525x28 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 9.525x9.525x47 mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-095-095-47-048-K
K Type Couplings - 9.525x9.525x47 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 25, 2025
$125.95 AUD
$125.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
K Type Couplings - 9.525x9.525x47 mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-095-095-47-048-K
K Type Couplings - 9.525x9.525x47 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 25, 2025
$125.95 AUD
$125.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-095-095-55-059-K
K Type Couplings - 9.525x9.525x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Bore (d1)
9.525
mm

(Equiv. 0.375 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-095-095-55-059-K
K Type Couplings - 9.525x9.525x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-111-111-47-048-K
K Type Couplings - 11.113x11.113x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-111-111-47-048-K
K Type Couplings - 11.113x11.113x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-111-111-55-059-K
K Type Couplings - 11.113x11.113x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Bore (d1)
11.113
mm

(Equiv. 0.438 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-111-111-55-059-K
K Type Couplings - 11.113x11.113x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-127-127-47-048-K
K Type Couplings - 12.7x12.7x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
47.0
mm

(Equiv. 1.85 in.)
Overall Length (L)
48.0
mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-127-127-47-048-K
K Type Couplings - 12.7x12.7x47 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-059-K
K Type Couplings - 12.7x12.7x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-059-K
K Type Couplings - 12.7x12.7x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
62.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 4.52 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-062-K
K Type Couplings - 12.7x12.7x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
62.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 4.52 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-062-K
K Type Couplings - 12.7x12.7x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
14.000
mm

(Equiv. 0.551 in.)
Bore (d1)
14.000
mm

(Equiv. 0.551 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-140-140-55-059-K
K Type Couplings - 14x14x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
14.000
mm

(Equiv. 0.551 in.)
Bore (d1)
14.000
mm

(Equiv. 0.551 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-140-140-55-059-K
K Type Couplings - 14x14x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
Bore (d1)
16.000
mm

(Equiv. 0.63 in.)
Bore (d1)
16.000
mm

(Equiv. 0.63 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-160-160-55-059-K
K Type Couplings - 16x16x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1)
16.000
mm

(Equiv. 0.63 in.)
Bore (d1)
16.000
mm

(Equiv. 0.63 in.)
Major Dia. (D)
55.0
mm

(Equiv. 2.165 in.)
Overall Length (L)
59.0
mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-160-160-55-059-K
K Type Couplings - 16x16x55 mm
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 12, 2028
