CP-111-111-55-059-K

Name: CP-111-111-55-059-K - K Type Couplings - 11.113x11.113x55 mm
Brand: MBA
SKU: CP11111155059K
Availability: OutOfStock

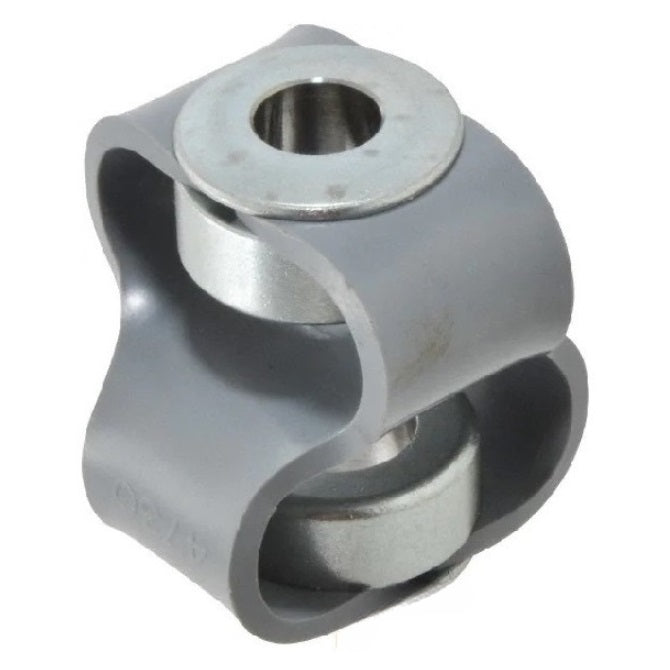

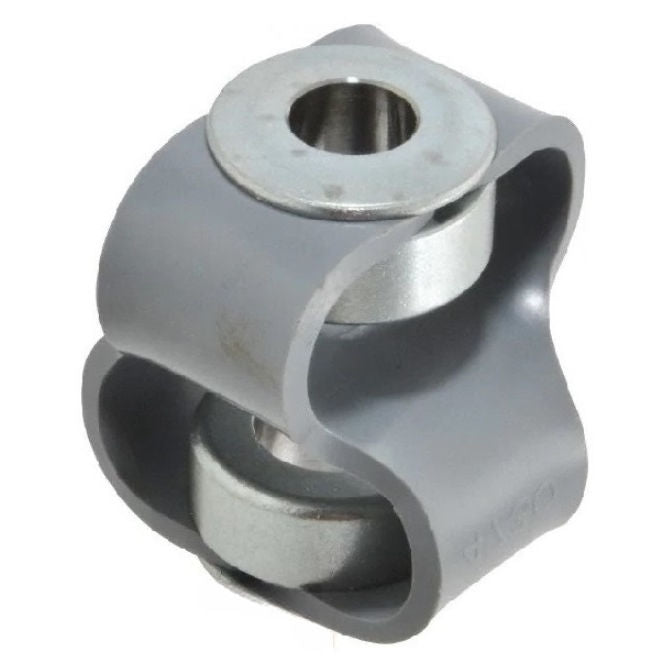

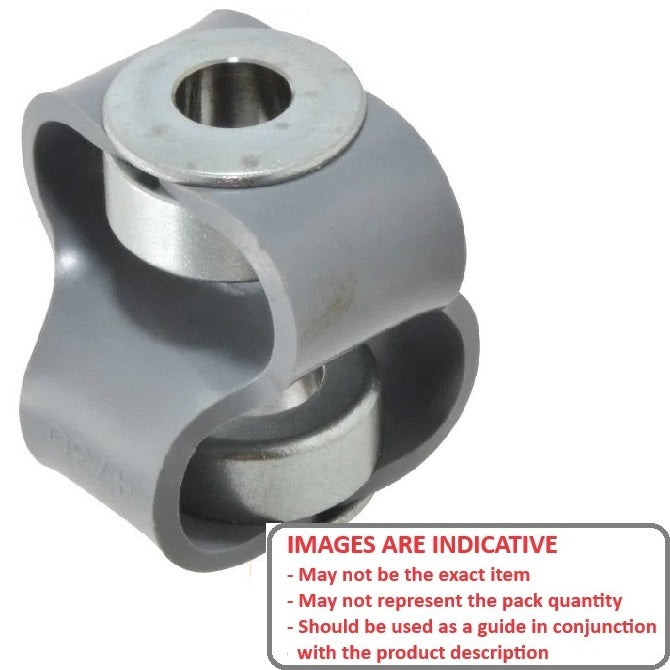

K Type Couplings - 11.113x11.113x55 mm

1 0

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Couplings - K Type

Special Order Only

Product Details

Bore (d1): 11.113mm
_{(11.113mm is 0.438 in.)}

Bore (d1): 11.113mm
_{(11.113mm is 0.438 in.)}
Bore (d1): 11.113mm
_{(11.113mm is 0.438 in.)}
Major Dia. (D): 55.0mm
_{(55.0mm is 2.165 in.)}
Overall Length (L): 59.0mm
Hub Height (H): 9.80mm
Max Axial Displacement: 8.5mm
Max Torque Capacity: 3.16N.m
Max Angular Misalignment: 15.0Deg.
Max Radial Misalignment: 4.8mm
Material (Hub / Body): Zinc Plated Steel / Polyurethane

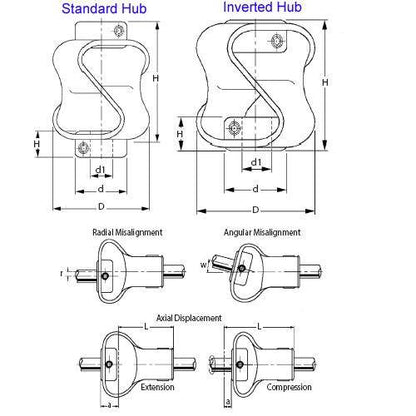

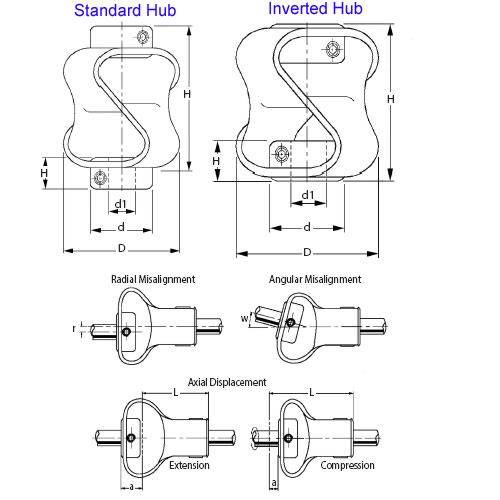

Figure Number: Figure 2 - Inverted Hub
Hub Diameter (d): 28.6mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

A5Z7-31414
A5Z731414

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
