CCI-02500-C-V (PK-600)

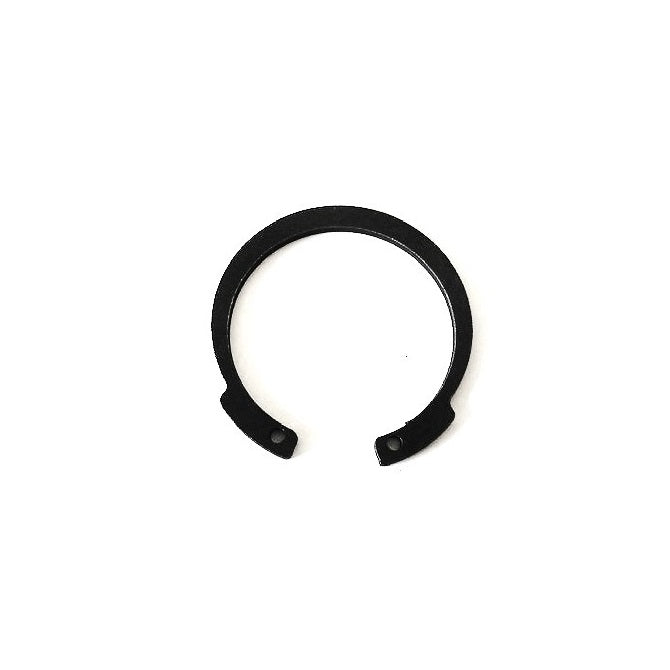

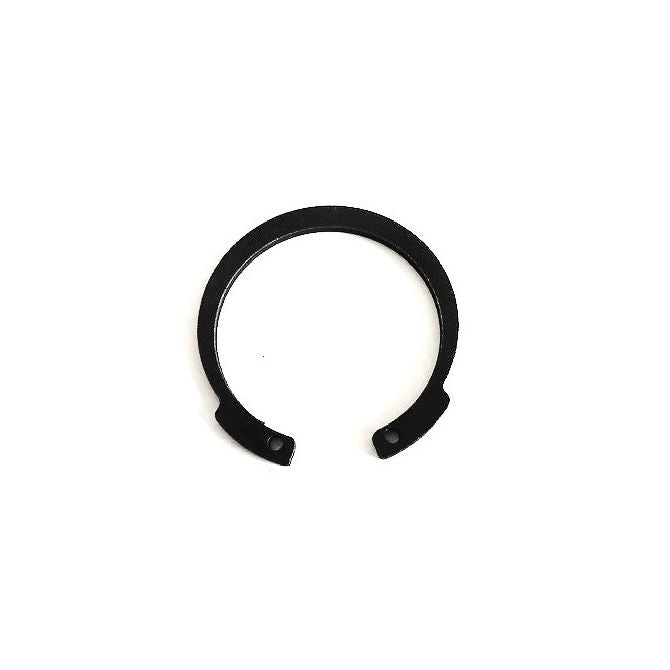

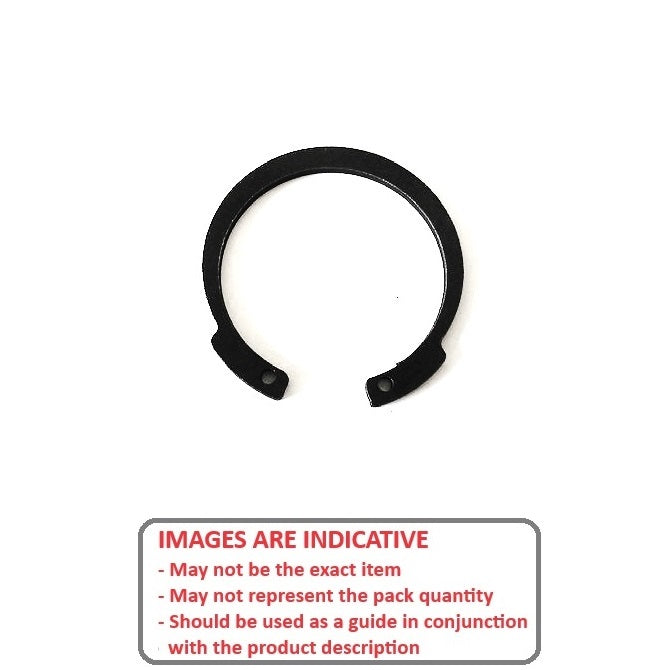

Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 600 (30000 pcs)
for $209.41 AUD per 600 pack
25x1.2x26.2 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 600:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Inverted
Product Details

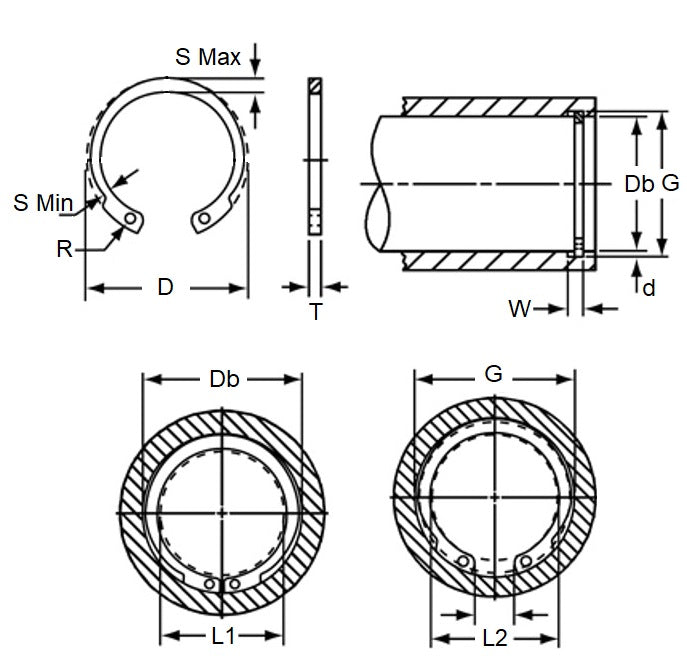

Housing Bore (B): 25.00mm(25.00mm is 0.984 in.)
Carbon Spring Steel
- Housing Bore (B): 25.00mm
(25.00mm is 0.984 in.)
- Clip Thickness (T): 1.20mm
+ 0.00 / - 0.06
(1.20mm is 0.047 in.)
- Groove Dia. (Dg): 26.20mm
+ 0.21 / - 0.00
(26.20mm is 1.031 in.)
- Approx. Loose Circlip OD (Dr): 26.90mm
+ 0.42 / - 0.21
- Radial Wall (S) Approx.: 2.7 - 2.8
- Groove Width (W): 1.30mm
- Tool: PRS-I011
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Bossard® BN830-025
- Huyett® DHOI-025
- Ellison® INTV-025
- Seeger® JV-025
- NoCor® MDHOI-025
- BN830025
- INTV025
- M13080250APP
- MDHOI025
- M1308-025
- M1308-0250APP
- JV025
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI02500CV, CCI02500
