Retaining Rings - Internal - Circlips - Inverted

Retaining Rings -> Internal -> Circlips -> Inverted

There are 73 products in the sub-categories of Retaining Rings - Internal - Circlips - Inverted. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Inverted in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Inverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Inverted lugs seat into the groove for better clearance and cleaner appearance.
  • Good for shielded bearings that pass tightly through the bore or housing.
  • Use recommended installation pliers.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Circlips - Inverted category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative

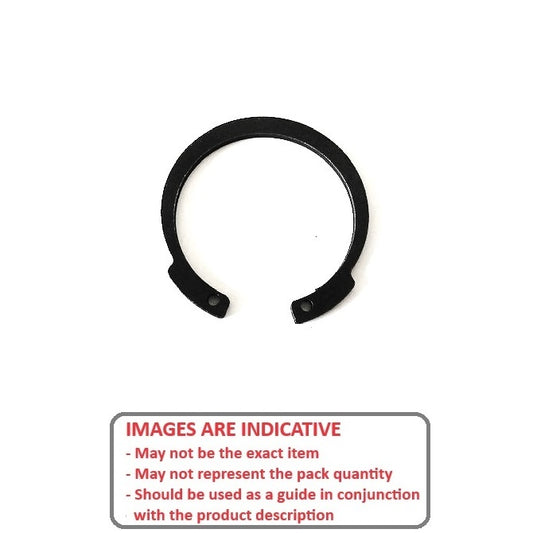

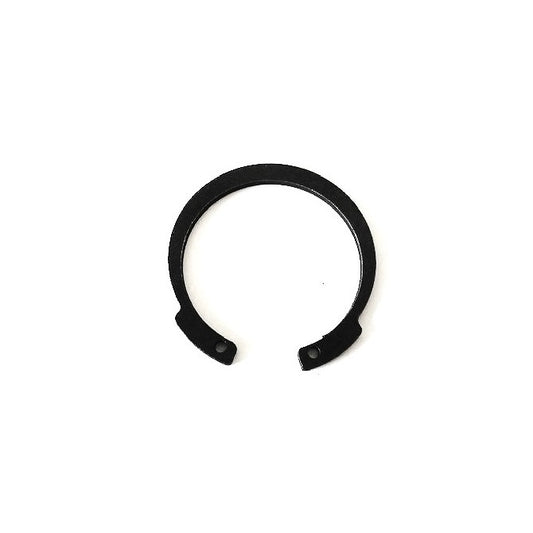

Internal Retaining Rings - 10x0.6x10.5 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
10.00
mm

(Equiv. 0.394 in.)
Clip Thickness (T)
0.60
mm
+ 0.11 / - 0.00
(Equiv. 0.024 in.)
Groove Dia. (Dg)
10.50
mm
+ 0.00 / - 0.05
(Equiv. 0.413 in.)
Approx. Loose Circlip OD (Dr)
10.90
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
1.4 - 1.5
Groove Width (W)
0.70
mm
Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I009
Part Number: CCI-01000-C-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 10x0.6x10.5 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
10.00
mm

(Equiv. 0.394 in.)
Clip Thickness (T)
0.60
mm
+ 0.11 / - 0.00
(Equiv. 0.024 in.)
Groove Dia. (Dg)
10.50
mm
+ 0.00 / - 0.05
(Equiv. 0.413 in.)
Approx. Loose Circlip OD (Dr)
10.90
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.4 - 1.5    Groove Width (W): 0.70 mm    Tool: PRS-I009
Part Number: CCI-01000-C-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
Internal Retaining Rings - 12x0.6x12.6 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
0.60
mm
+ 0.11 / - 0.00
(Equiv. 0.024 in.)
Groove Dia. (Dg)
12.60
mm
+ 0.00 / - 0.05
(Equiv. 0.496 in.)
Approx. Loose Circlip OD (Dr)
13.10
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
1.7 - 1.8
Groove Width (W)
0.70
mm
Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I009
Part Number: CCI-01200-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$91.95 AUD
$216.00 AUD $91.95 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 12x0.6x12.6 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
0.60
mm
+ 0.11 / - 0.00
(Equiv. 0.024 in.)
Groove Dia. (Dg)
12.60
mm
+ 0.00 / - 0.05
(Equiv. 0.496 in.)
Approx. Loose Circlip OD (Dr)
13.10
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 1.7 - 1.8    Groove Width (W): 0.70 mm    Tool: PRS-I009
Part Number: CCI-01200-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$91.95 AUD
$216.00 AUD $91.95 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 15x0.8x15.7 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
0.80
mm
+ 0.11 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
15.70
mm
+ 0.00 / - 0.05
(Equiv. 0.618 in.)
Approx. Loose Circlip OD (Dr)
16.10
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
1.9 - 2.0
Groove Width (W)
0.90
mm
Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I009
Part Number: CCI-01500-C-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 15x0.8x15.7 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
0.80
mm
+ 0.11 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
15.70
mm
+ 0.00 / - 0.05
(Equiv. 0.618 in.)
Approx. Loose Circlip OD (Dr)
16.10
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.9 - 2.0    Groove Width (W): 0.90 mm    Tool: PRS-I009
Part Number: CCI-01500-C-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
Internal Retaining Rings - 15.88x0.64x16.89 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.89
mm
+/- 0.052
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
Groove Width (W)
0.74
mm
Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel
Material: Carbon Steel
Part Number: CCI-01588-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 10, 2026
$37.05 AUD
$86.80 AUD $37.05 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 15.88x0.64x16.89 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.89
mm
+/- 0.052
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 0.74 mm
Part Number: CCI-01588-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 10, 2026
$37.05 AUD
$86.80 AUD $37.05 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.80
mm
+ 0.00 / - 0.06
(Equiv. 0.661 in.)
Approx. Loose Circlip OD (Dr)
17.30
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.0 - 2.1
Groove Width (W)
1.10
mm
Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 27
Part Number: CCI-01600-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$26.50 AUD
$62.00 AUD $26.50 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.80
mm
+ 0.00 / - 0.06
(Equiv. 0.661 in.)
Approx. Loose Circlip OD (Dr)
17.30
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.0 - 2.1    Groove Width (W): 1.10 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 27
Part Number: CCI-01600-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$26.50 AUD
$62.00 AUD $26.50 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.80
mm
+ 0.00 / - 0.06
(Equiv. 0.701 in.)
Approx. Loose Circlip OD (Dr)
18.30
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.0 - 2.1
Groove Width (W)
1.10
mm
Internal Retaining Rings - 17x1x17.8 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 526
Part Number: CCI-01700-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$27.95 AUD
$65.60 AUD $27.95 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.80
mm
+ 0.00 / - 0.06
(Equiv. 0.701 in.)
Approx. Loose Circlip OD (Dr)
18.30
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 17x1x17.8 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.0 - 2.1    Groove Width (W): 1.10 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 526
Part Number: CCI-01700-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$27.95 AUD
$65.60 AUD $27.95 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip OD (Dr)
19.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.1 - 2.2
Groove Width (W)
1.10
mm
Internal Retaining Rings - 18x1x19 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Part Number: CCI-01800-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 15, 2026
$156.50 AUD
$368.00 AUD $156.50 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip OD (Dr)
19.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 18x1x19 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.1 - 2.2    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: CCI-01800-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 15, 2026
$156.50 AUD
$368.00 AUD $156.50 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.06
(Equiv. 0.787 in.)
Approx. Loose Circlip OD (Dr)
20.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.1 - 2.2
Groove Width (W)
1.10
mm
Internal Retaining Rings - 19x1x20 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Part Number: CCI-01900-C-V (PK-5)
80 units (400 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$1.23 AUD
$3.30 AUD $1.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 80 available can be backordered.
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.06
(Equiv. 0.787 in.)
Approx. Loose Circlip OD (Dr)
20.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 19x1x20 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.1 - 2.2    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: CCI-01900-C-V (PK-5)
80 units (400 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$1.23 AUD
$3.30 AUD $1.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

80 units (400 pcs) Available Now. Backorder if more than 80.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+/- 0.052
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
Groove Width (W)
0.99
mm
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel
Material: Carbon Steel
Part Number: CCI-01905-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 27, 2026
$43.50 AUD
$102.15 AUD $43.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+/- 0.052
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 0.99 mm
Part Number: CCI-01905-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 27, 2026
$43.50 AUD
$102.15 AUD $43.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip OD (Dr)
21.63
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
Groove Width (W)
1.10
mm
Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 286
Part Number: CCI-02000-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$41.41 AUD
$97.20 AUD $41.41 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip OD (Dr)
21.63
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.3 - 2.4    Groove Width (W): 1.10 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 286
Part Number: CCI-02000-C-V (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$41.41 AUD
$97.20 AUD $41.41 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
21.89
mm
+/- 0.052
(Equiv. 0.862 in.)
Approx. Loose Circlip OD (Dr)
22.89
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Material: Carbon Steel
Additional stock available from USA subject to Prior Sale = 1188
Part Number: CCI-02063-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$27.86 AUD
$65.20 AUD $27.86 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
21.89
mm
+/- 0.052
(Equiv. 0.862 in.)
Approx. Loose Circlip OD (Dr)
22.89
mm
Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Additional stock available from USA subject to Prior Sale = 1188
Part Number: CCI-02063-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$27.86 AUD
$65.20 AUD $27.86 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
21.00
mm

(Equiv. 0.827 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
22.00
mm
+ 0.00 / - 0.06
(Equiv. 0.866 in.)
Approx. Loose Circlip OD (Dr)
22.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
Groove Width (W)
1.10
mm
Internal Retaining Rings - 21x1x22 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I011
Part Number: CCI-02100-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$186.23 AUD
$438.00 AUD $186.23 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
21.00
mm

(Equiv. 0.827 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
22.00
mm
+ 0.00 / - 0.06
(Equiv. 0.866 in.)
Approx. Loose Circlip OD (Dr)
22.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 21x1x22 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.3 - 2.4    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: CCI-02100-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$186.23 AUD
$438.00 AUD $186.23 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
Groove Width (W)
1.10
mm
Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Tool: PRS-I011
Part Number: CCI-02200-S15-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Radial Wall (S) Approx.: 2.3 - 2.4    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: CCI-02200-S15-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, Mar 07, 2026
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
Groove Width (W)
1.10
mm
Internal Retaining Rings - 22x1x23 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 657
Part Number: CCI-02200-C-V (PK-5)
37 units (185 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$1.77 AUD
$4.88 AUD $1.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 37 available can be backordered.
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 22x1x23 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.3 - 2.4    Groove Width (W): 1.10 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 657
Part Number: CCI-02200-C-V (PK-5)
37 units (185 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$1.77 AUD
$4.88 AUD $1.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

37 units (185 pcs) Available Now. Backorder if more than 37.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.052
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
23.98
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel
Part Number: CCI-02223-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$49.14 AUD
$115.38 AUD $49.14 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.052
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
23.98
mm
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Part Number: CCI-02223-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 04, 2026
$49.14 AUD
$115.38 AUD $49.14 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
23.81
mm

(Equiv. 0.937 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+/- 0.052
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
Material: Carbon Steel
Additional stock available from USA subject to Prior Sale = 1000
Part Number: CCI-02381-C-V (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$150.59 AUD
$354.00 AUD $150.59 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
23.81
mm

(Equiv. 0.937 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+/- 0.052
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Additional stock available from USA subject to Prior Sale = 1000
Part Number: CCI-02381-C-V (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$150.59 AUD
$354.00 AUD $150.59 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.20
mm
+ 0.00 / - 0.06
(Equiv. 0.992 in.)
Approx. Loose Circlip OD (Dr)
26.11
mm
+ 0.42 / - 0.21
Radial Wall (S) Approx.
2.7 - 2.9
Groove Width (W)
1.10
mm
Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Part Number: CCI-02400-C-V (PK-5)
18 units (90 pcs) Available Now | Further orders can be expected around Thu, Mar 26, 2026
$1.32 AUD
$3.64 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 18 available can be backordered.
Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.20
mm
+ 0.00 / - 0.06
(Equiv. 0.992 in.)
Approx. Loose Circlip OD (Dr)
26.11
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.7 - 2.9    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: CCI-02400-C-V (PK-5)
18 units (90 pcs) Available Now | Further orders can be expected around Thu, Mar 26, 2026
$1.32 AUD
$3.64 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

18 units (90 pcs) Available Now. Backorder if more than 18.
Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.00 / - 0.06
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Radial Wall (S) Approx.
2.7 - 2.8
Groove Width (W)
1.30
mm
Internal Retaining Rings - 25x1.2x26.2 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I011
Part Number: CCI-02500-C-V (PK-600)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$232.68 AUD
$547.20 AUD $232.68 AUD
Priced, Stocked and Sold Per 600 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.00 / - 0.06
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 25x1.2x26.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.7 - 2.8    Groove Width (W): 1.30 mm    Tool: PRS-I011
Part Number: CCI-02500-C-V (PK-600)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$232.68 AUD
$547.20 AUD $232.68 AUD
Priced, Stocked and Sold Per 600 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.052
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel
Additional stock available from USA subject to Prior Sale = 876
Part Number: CCI-02540-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$34.59 AUD
$81.20 AUD $34.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.052
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Additional stock available from USA subject to Prior Sale = 876
Part Number: CCI-02540-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$34.59 AUD
$81.20 AUD $34.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.70
mm
+/- 0.052
(Equiv. 1.13 in.)
Approx. Loose Circlip OD (Dr)
29.97
mm
Groove Width (W)
1.42
mm
Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Material: Carbon Steel
Additional stock available from USA subject to Prior Sale = 424
Part Number: CCI-02699-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$318.86 AUD
$750.00 AUD $318.86 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.70
mm
+/- 0.052
(Equiv. 1.13 in.)
Approx. Loose Circlip OD (Dr)
29.97
mm
Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.42 mm
Additional stock available from USA subject to Prior Sale = 424
Part Number: CCI-02699-C-V (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$318.86 AUD
$750.00 AUD $318.86 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 27x1.2x28.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.40
mm
+ 0.00 / - 0.06
(Equiv. 1.118 in.)
Approx. Loose Circlip OD (Dr)
29.10
mm
+ 0.42 / - 0.21
Radial Wall (S) Approx.
2.9 - 3.1
Groove Width (W)
1.30
mm
Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Part Number: CCI-02700-C-V (PK-2)
9 units (18 pcs) Available Now | Further orders can be expected around Thu, Mar 26, 2026
$0.95 AUD
$2.55 AUD $0.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 9 available can be backordered.
Internal Retaining Rings - 27x1.2x28.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.40
mm
+ 0.00 / - 0.06
(Equiv. 1.118 in.)
Approx. Loose Circlip OD (Dr)
29.10
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.9 - 3.1    Groove Width (W): 1.30 mm    Tool: PRS-I011
Part Number: CCI-02700-C-V (PK-2)
9 units (18 pcs) Available Now | Further orders can be expected around Thu, Mar 26, 2026
$0.95 AUD
$2.55 AUD $0.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (18 pcs) Available Now. Backorder if more than 9.
Internal Retaining Rings - 28x1.2x29.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.40
mm
+ 0.00 / - 0.06
(Equiv. 1.157 in.)
Approx. Loose Circlip OD (Dr)
29.65
mm
+ 0.50 / - 0.25
Radial Wall (S) Approx.
3.1 - 3.2
Groove Width (W)
1.30
mm
Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCI-02800-C-V (PK-5)
98 units (490 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$2.86 AUD
$8.10 AUD $2.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 98 available can be backordered.
Internal Retaining Rings - 28x1.2x29.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.40
mm
+ 0.00 / - 0.06
(Equiv. 1.157 in.)
Approx. Loose Circlip OD (Dr)
29.65
mm
+ 0.50 / - 0.25
Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 3.1 - 3.2    Groove Width (W): 1.30 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCI-02800-C-V (PK-5)
98 units (490 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$2.86 AUD
$8.10 AUD $2.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

98 units (490 pcs) Available Now. Backorder if more than 98.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+/- 0.052
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
Groove Width (W)
1.42
mm
Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
Material: Carbon Steel
Additional stock available from USA subject to Prior Sale = 862
Part Number: CCI-02858-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$43.32 AUD
$101.60 AUD $43.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+/- 0.052
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.42 mm
Additional stock available from USA subject to Prior Sale = 862
Part Number: CCI-02858-C-V (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$43.32 AUD
$101.60 AUD $43.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30x1.2x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.20
mm
+ 0.25 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.00 / - 0.06
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
31.83
mm
+ 0.50 / - 0.25
Radial Wall (S) Approx.
3.1 - 3.2
Groove Width (W)
1.30
mm
Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 4569
Part Number: CCI-03000-C-V (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$9.14 AUD
$9.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 30x1.2x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.20
mm
+ 0.25 / - 0.00
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.00 / - 0.06
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
31.83
mm
+ 0.50 / - 0.25
Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 3.1 - 3.2    Groove Width (W): 1.30 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 4569
Part Number: CCI-03000-C-V (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$9.14 AUD
$9.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
