DAK-110 (Each)

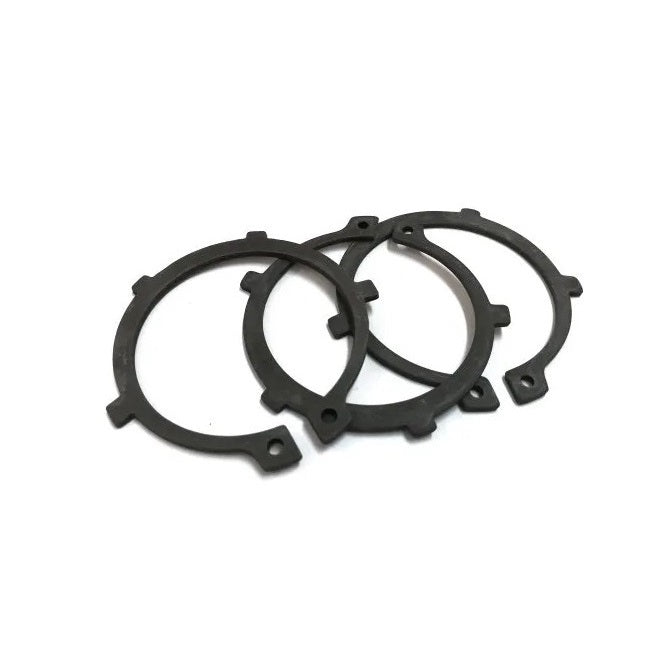

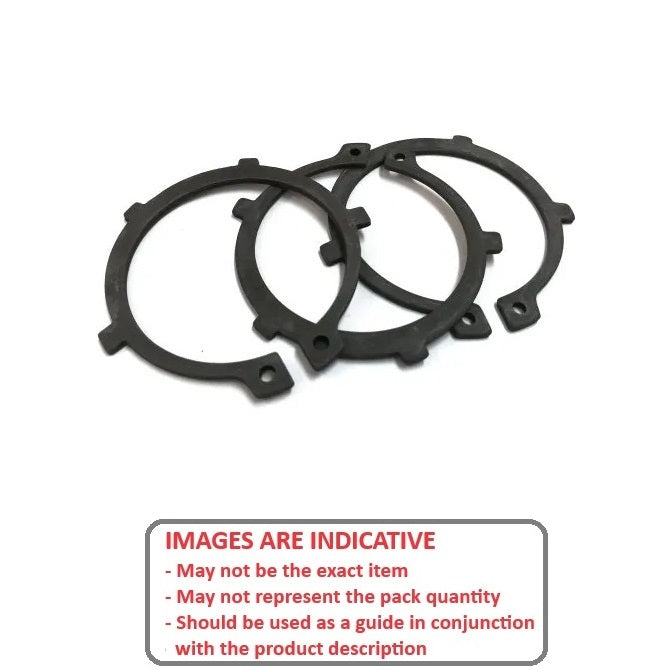

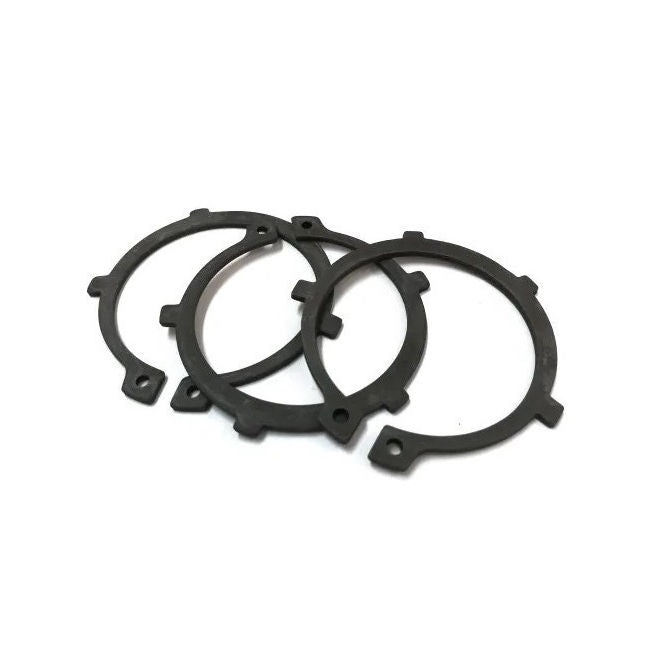

External Retaining Rings - 110x4x106 mm Circlips - Carbon Spring Steel Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
110x4x106 mm External Retaining Rings - Carbon Spring Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Tabbed
Product Details

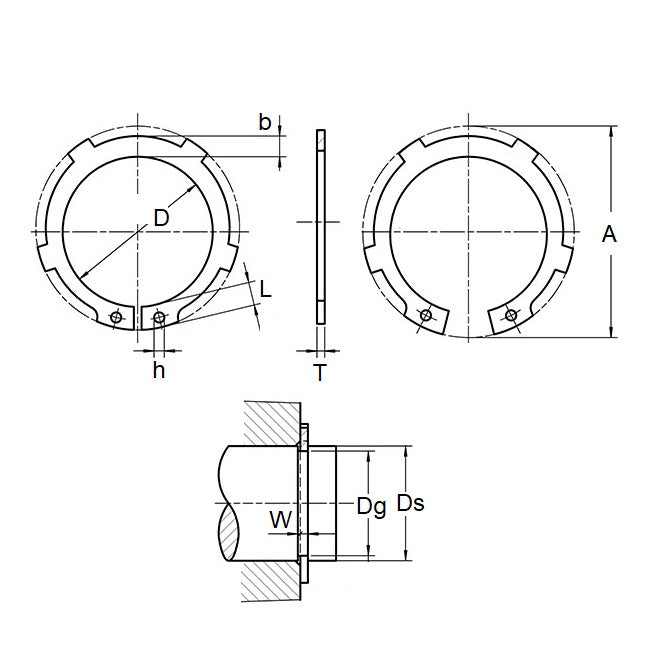

Shaft Diameter (Ds): 110.00mm(110.00mm is 4.331 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 110.00mm
(110.00mm is 4.331 in.)
- Clip Thickness (T): 4.00mm
+ 0.00 / - 0.10
(4.00mm is 0.157 in.)
- Groove Dia. (Dg): 106.00mm
+ 0.00 / - 0.50
(106.00mm is 4.173 in.)
- Approx. Loose Circlip ID (A): 101.70 - 103.54mm
- Groove Width (W): 4.15mm
- Tool: PRS-E032
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DAK110,
