Retaining Rings - External - Circlips - Tabbed

Retaining Rings -> External -> Circlips -> Tabbed

There are 40 products in the sub-categories of Retaining Rings - External - Circlips - Tabbed. Scroll down or follow the link to Retaining Rings - External - Circlips - Tabbed in the products table to see all these items combined into a handy table with filters.

Category Details

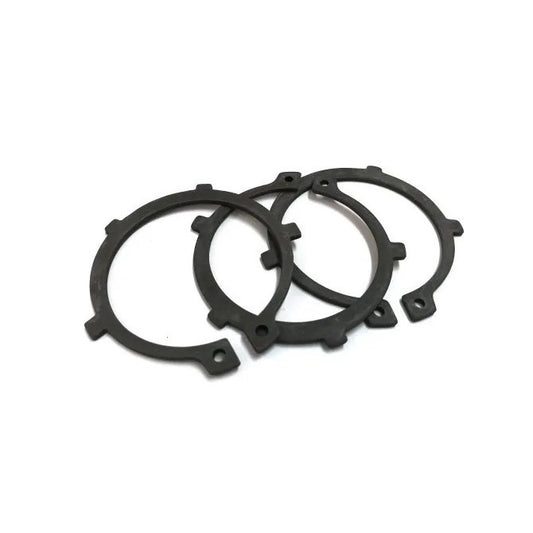

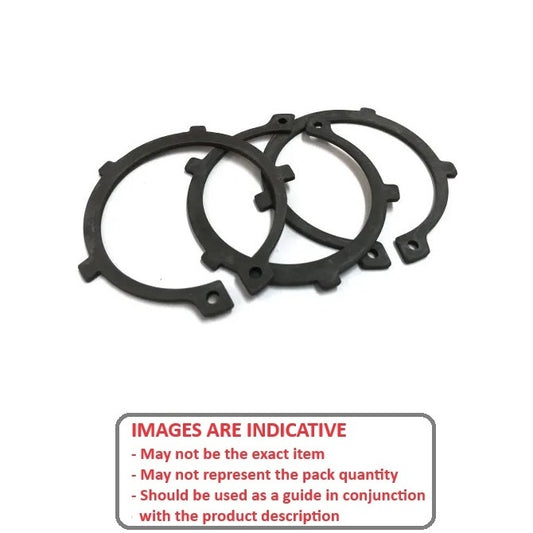

A selection of Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - External - Circlips - Tabbed category on the Small Parts & Bearings online store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.12
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.20
mm
+ 0.00 / - 0.06
(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
14.34 - 14.80
mm
Groove Width (W)
1.10
mm
External Retaining Rings - 16x1x15.2 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E013
Part Number: DAK-016
External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.12
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.20
mm
+ 0.00 / - 0.06
(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
14.34 - 14.80
mm
External Retaining Rings - 16x1x15.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.10 mm    Tool: PRS-E013
Part Number: DAK-016
External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.12
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.06
(Equiv. 0.638 in.)
Approx. Loose Circlip ID (A)
15.37
mm
Groove Width (W)
1.10
mm
External Retaining Rings - 17x1x16.2 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E013
Part Number: DAK-017
External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.12
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.06
(Equiv. 0.638 in.)
Approx. Loose Circlip ID (A)
15.37
mm
External Retaining Rings - 17x1x16.2 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.10 mm    Tool: PRS-E013
Part Number: DAK-017
External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.11
(Equiv. 0.047 in.)
Groove Dia. (Dg)
17.00
mm
+ 0.00 / - 0.06
(Equiv. 0.669 in.)
Approx. Loose Circlip ID (A)
16.14 - 16.60
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 18x1.2x17 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E013
Part Number: DAK-018 (500 Pcs)
External Retaining Rings - 18x1.2x17 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$355.41 AUD
$836.00 AUD $355.41 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.11
(Equiv. 0.047 in.)
Groove Dia. (Dg)
17.00
mm
+ 0.00 / - 0.06
(Equiv. 0.669 in.)
Approx. Loose Circlip ID (A)
16.14 - 16.60
mm
External Retaining Rings - 18x1.2x17 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.30 mm    Tool: PRS-E013
Part Number: DAK-018 (500 Pcs)
External Retaining Rings - 18x1.2x17 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$355.41 AUD
$836.00 AUD $355.41 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.11
(Equiv. 0.047 in.)
Groove Dia. (Dg)
18.00
mm
+ 0.00 / - 0.06
(Equiv. 0.709 in.)
Approx. Loose Circlip ID (A)
17.14 - 17.60
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 19x1.2x18 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-019
External Retaining Rings - 19x1.2x18 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.11
(Equiv. 0.047 in.)
Groove Dia. (Dg)
18.00
mm
+ 0.00 / - 0.06
(Equiv. 0.709 in.)
Approx. Loose Circlip ID (A)
17.14 - 17.60
mm
External Retaining Rings - 19x1.2x18 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-019
External Retaining Rings - 19x1.2x18 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip ID (A)
18.08
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 20x1.2x19 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E018
Part Number: DAK-020 (5 Pcs)
External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.14 AUD
$14.00 AUD $6.14 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip ID (A)
18.08
mm
External Retaining Rings - 20x1.2x19 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-020 (5 Pcs)
External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.14 AUD
$14.00 AUD $6.14 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip ID (A)
20.08 - 20.63
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 22x1.2x21 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E018
Part Number: DAK-022 (7 Pcs)
External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$9.14 AUD
$21.00 AUD $9.14 AUD
Per 7
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip ID (A)
20.08 - 20.63
mm
External Retaining Rings - 22x1.2x21 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-022 (7 Pcs)
External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$9.14 AUD
$21.00 AUD $9.14 AUD
Per 7
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
23.00
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.00
mm
+ 0.00 / - 0.06
(Equiv. 0.866 in.)
Approx. Loose Circlip ID (A)
21.05 - 21.63
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 23x1.2x22 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-023
External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
23.00
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.00
mm
+ 0.00 / - 0.06
(Equiv. 0.866 in.)
Approx. Loose Circlip ID (A)
21.05 - 21.63
mm
External Retaining Rings - 23x1.2x22 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-023
External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.90
mm
+ 0.00 / - 0.06
(Equiv. 0.902 in.)
Approx. Loose Circlip ID (A)
21.78 - 22.33
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 24x1.2x22.9 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-024
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.90
mm
+ 0.00 / - 0.06
(Equiv. 0.902 in.)
Approx. Loose Circlip ID (A)
21.78 - 22.33
mm
External Retaining Rings - 24x1.2x22.9 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-024
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
22.78
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E018
Part Number: DAK-025 (5 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
9 units (45 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.41 AUD
$12.40 AUD $4.41 AUD
Per 5
Quantity Required

9 units (45 pcs) Available Now. Backorder if more than 9.
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
22.78
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-025 (5 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
9 units (45 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.41 AUD
$12.40 AUD $4.41 AUD
Per 5
Quantity Required

9 units (45 pcs) Available Now. Backorder if more than 9.
Shaft Diameter (Ds)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.90
mm
+ 0.00 / - 0.06
(Equiv. 0.98 in.)
Approx. Loose Circlip ID (A)
23.79 - 24.41
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 26x1.2x24.9 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-026
External Retaining Rings - 26x1.2x24.9 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.90
mm
+ 0.00 / - 0.06
(Equiv. 0.98 in.)
Approx. Loose Circlip ID (A)
23.79 - 24.41
mm
External Retaining Rings - 26x1.2x24.9 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Part Number: DAK-026
External Retaining Rings - 26x1.2x24.9 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
26.60
mm
+ 0.00 / - 0.06
(Equiv. 1.047 in.)
Approx. Loose Circlip ID (A)
25.48 - 26.11
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 28x1.5x26.6 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-028
External Retaining Rings - 28x1.5x26.6 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
26.60
mm
+ 0.00 / - 0.06
(Equiv. 1.047 in.)
Approx. Loose Circlip ID (A)
25.48 - 26.11
mm
External Retaining Rings - 28x1.5x26.6 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-028
External Retaining Rings - 28x1.5x26.6 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
29.00
mm

(Equiv. 1.142 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
27.60
mm
+ 0.00 / - 0.06
(Equiv. 1.087 in.)
Approx. Loose Circlip ID (A)
26.48 - 27.11
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 29x1.5x27.6 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-029
External Retaining Rings - 29x1.5x27.6 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
29.00
mm

(Equiv. 1.142 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
27.60
mm
+ 0.00 / - 0.06
(Equiv. 1.087 in.)
Approx. Loose Circlip ID (A)
26.48 - 27.11
mm
External Retaining Rings - 29x1.5x27.6 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-029
External Retaining Rings - 29x1.5x27.6 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
28.60
mm
+ 0.00 / - 0.06
(Equiv. 1.126 in.)
Approx. Loose Circlip ID (A)
27.48
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E018
Part Number: DAK-030 (500 Pcs)
External Retaining Rings - 30x1.5x28.6 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$876.59 AUD
$2,062.00 AUD $876.59 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.21
(Equiv. 0.059 in.)
Groove Dia. (Dg)
28.60
mm
+ 0.00 / - 0.06
(Equiv. 1.126 in.)
Approx. Loose Circlip ID (A)
27.48
mm
External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-030 (500 Pcs)
External Retaining Rings - 30x1.5x28.6 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$876.59 AUD
$2,062.00 AUD $876.59 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
30.30
mm
+ 0.00 / - 0.06
(Equiv. 1.193 in.)
Approx. Loose Circlip ID (A)
29.18 - 29.81
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 32x1.5x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-032
External Retaining Rings - 32x1.5x30.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
30.30
mm
+ 0.00 / - 0.06
(Equiv. 1.193 in.)
Approx. Loose Circlip ID (A)
29.18 - 29.81
mm
External Retaining Rings - 32x1.5x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-032
External Retaining Rings - 32x1.5x30.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
32.30
mm
+ 0.00 / - 0.06
(Equiv. 1.272 in.)
Approx. Loose Circlip ID (A)
31.08 - 31.71
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 34x1.5x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-034
External Retaining Rings - 34x1.5x32.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
32.30
mm
+ 0.00 / - 0.06
(Equiv. 1.272 in.)
Approx. Loose Circlip ID (A)
31.08 - 31.71
mm
External Retaining Rings - 34x1.5x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-034
External Retaining Rings - 34x1.5x32.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.00 / - 0.06
(Equiv. 1.299 in.)
Approx. Loose Circlip ID (A)
31.70
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 35x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-035
External Retaining Rings - 35x1.5x33 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.00 / - 0.06
(Equiv. 1.299 in.)
Approx. Loose Circlip ID (A)
31.70
mm
External Retaining Rings - 35x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.60 mm    Tool: PRS-E018
Part Number: DAK-035
External Retaining Rings - 35x1.5x33 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
37.00
mm

(Equiv. 1.457 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
35.00
mm
+ 0.00 / - 0.06
(Equiv. 1.378 in.)
Approx. Loose Circlip ID (A)
33.70 - 34.45
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 37x1.75x35 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-037
External Retaining Rings - 37x1.75x35 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
37.00
mm

(Equiv. 1.457 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
35.00
mm
+ 0.00 / - 0.06
(Equiv. 1.378 in.)
Approx. Loose Circlip ID (A)
33.70 - 34.45
mm
External Retaining Rings - 37x1.75x35 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E018
Part Number: DAK-037
External Retaining Rings - 37x1.75x35 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
36.00
mm
+ 0.00 / - 0.06
(Equiv. 1.417 in.)
Approx. Loose Circlip ID (A)
34.70
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 38x1.75x36 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E018
Part Number: DAK-038
External Retaining Rings - 38x1.75x36 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
36.00
mm
+ 0.00 / - 0.06
(Equiv. 1.417 in.)
Approx. Loose Circlip ID (A)
34.70
mm
External Retaining Rings - 38x1.75x36 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E018
Part Number: DAK-038
External Retaining Rings - 38x1.75x36 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
37.50
mm
+ 0.00 / - 0.06
(Equiv. 1.476 in.)
Approx. Loose Circlip ID (A)
35.60
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E023
Part Number: DAK-040
External Retaining Rings - 40x1.75x37.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$3.05 AUD
$6.39 AUD $3.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
37.50
mm
+ 0.00 / - 0.06
(Equiv. 1.476 in.)
Approx. Loose Circlip ID (A)
35.60
mm
External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.85 mm    Tool: PRS-E023
Part Number: DAK-040
External Retaining Rings - 40x1.75x37.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$3.05 AUD
$6.39 AUD $3.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
39.50
mm
+ 0.00 / - 0.06
(Equiv. 1.555 in.)
Approx. Loose Circlip ID (A)
37.60 - 38.89
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 42x1.75x39.5 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E023
Part Number: DAK-042
External Retaining Rings - 42x1.75x39.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
39.50
mm
+ 0.00 / - 0.06
(Equiv. 1.555 in.)
Approx. Loose Circlip ID (A)
37.60 - 38.89
mm
External Retaining Rings - 42x1.75x39.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E023
Part Number: DAK-042
External Retaining Rings - 42x1.75x39.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
42.50
mm
+ 0.00 / - 0.06
(Equiv. 1.673 in.)
Approx. Loose Circlip ID (A)
40.60
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 45x1.75x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E023
Part Number: DAK-045 (250 Pcs)
External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$472.86 AUD
$1,112.00 AUD $472.86 AUD
Per 250
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
42.50
mm
+ 0.00 / - 0.06
(Equiv. 1.673 in.)
Approx. Loose Circlip ID (A)
40.60
mm
External Retaining Rings - 45x1.75x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E023
Part Number: DAK-045 (250 Pcs)
External Retaining Rings - 45x1.75x42.5 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$472.86 AUD
$1,112.00 AUD $472.86 AUD
Per 250
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
47.00
mm

(Equiv. 1.85 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
44.50
mm
+ 0.00 / - 0.06
(Equiv. 1.752 in.)
Approx. Loose Circlip ID (A)
42.60 - 44.89
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 47x1.75x44.5 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E023
Part Number: DAK-047
External Retaining Rings - 47x1.75x44.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
47.00
mm

(Equiv. 1.85 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
44.50
mm
+ 0.00 / - 0.06
(Equiv. 1.752 in.)
Approx. Loose Circlip ID (A)
42.60 - 44.89
mm
External Retaining Rings - 47x1.75x44.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E023
Part Number: DAK-047
External Retaining Rings - 47x1.75x44.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
45.50
mm
+ 0.00 / - 0.06
(Equiv. 1.791 in.)
Approx. Loose Circlip ID (A)
43.60 - 44.89
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 48x1.75x45.5 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E023
Part Number: DAK-048
External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
45.50
mm
+ 0.00 / - 0.06
(Equiv. 1.791 in.)
Approx. Loose Circlip ID (A)
43.60 - 44.89
mm
External Retaining Rings - 48x1.75x45.5 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.85 mm    Tool: PRS-E023
Part Number: DAK-048
External Retaining Rings - 48x1.75x45.5 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.25
(Equiv. 0.079 in.)
Groove Dia. (Dg)
47.00
mm
+ 0.00 / - 0.07
(Equiv. 1.85 in.)
Approx. Loose Circlip ID (A)
44.90
mm
Groove Width (W)
2.15
mm
External Retaining Rings - 50x2x47 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-E023
Part Number: DAK-050
External Retaining Rings - 50x2x47 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.25
(Equiv. 0.079 in.)
Groove Dia. (Dg)
47.00
mm
+ 0.00 / - 0.07
(Equiv. 1.85 in.)
Approx. Loose Circlip ID (A)
44.90
mm
External Retaining Rings - 50x2x47 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.15 mm    Tool: PRS-E023
Part Number: DAK-050
External Retaining Rings - 50x2x47 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
