CCE-17600-C (Each)

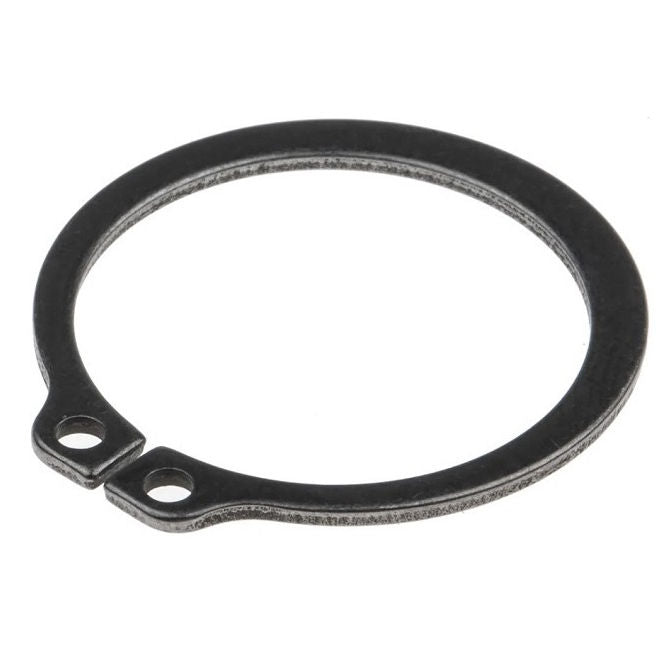

External Retaining Rings - 176x4x171 mm Circlips - Carbon Spring Steel Self Finish Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 176x4x171 mm - Carbon Spring Steel Self Finish
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details

Shaft Diameter (Ds): 176.00mm
(176.00mm is 6.929 in.)

Carbon Spring Steel Self Finish
  • Shaft Diameter (Ds): 176.00mm
    (176.00mm is 6.929 in.)
  • Clip Thickness (T): 4.00mm
    + 0.00 / - 0.10
    (4.00mm is 0.157 in.)
  • Groove Dia. (Dg): 171.00mm
    + 0.00 / - 0.63
    (171.00mm is 6.732 in.)
  • Approx. Loose Circlip ID (A): 167.13mm
  • Groove Width (W): 4.15mm
  • Clearance on Shaft (C1): 198.00mm
  • Clearance in Groove (C1): 204.40mm
  • Min. Lug Diameter (h): 4.000mm
  • Min. Extension (n): 7.50
  • Standard: DIN471

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Ellison® 471-176
  • Seeger® A-176
  • Seeger® A176X4
  • Bossard® BN818-176
  • Waldes® D1400-176
  • NoCor® DSH-176
  • Rotor Clip® DSH-176
  • BN818176
  • D1400-1760
  • D14001760
  • 471176
  • DSH176

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
