PR-0140-040-ZZ-AD-55

Pressure Roller with Bearing Rollers - 14x4x4 mm Urethane OD - Stainless Steel AISI 440C

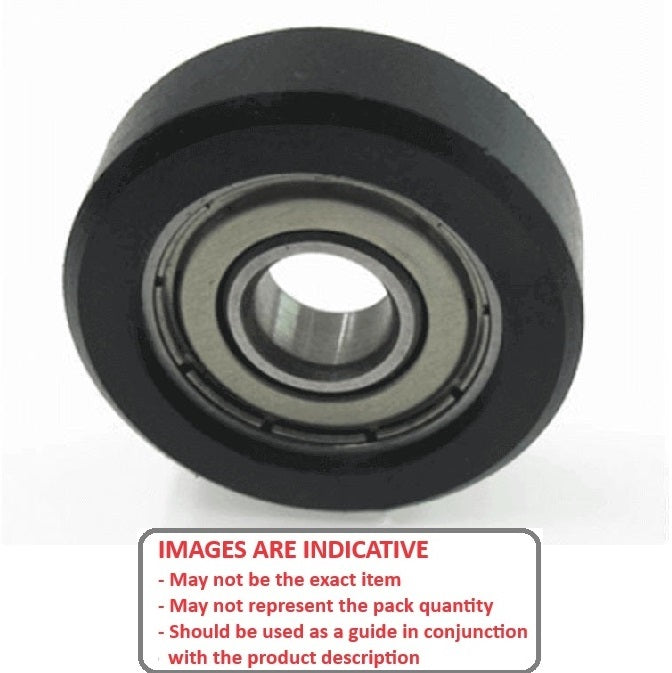

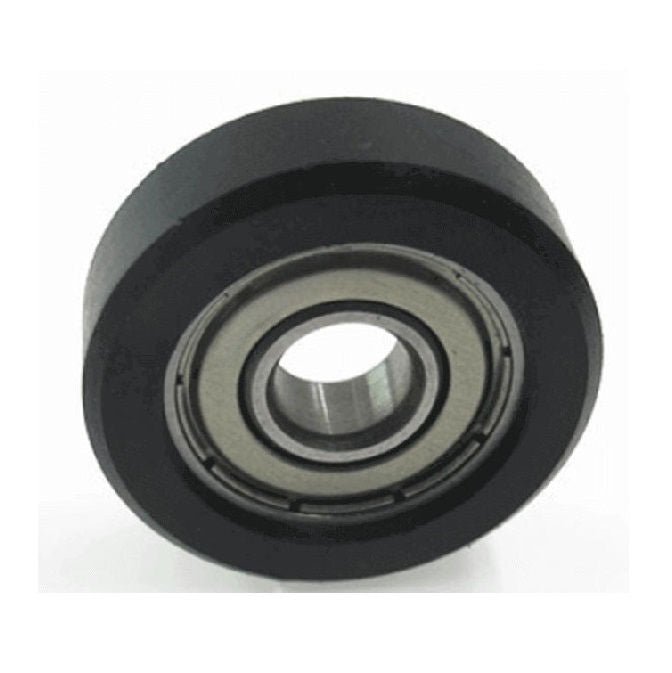

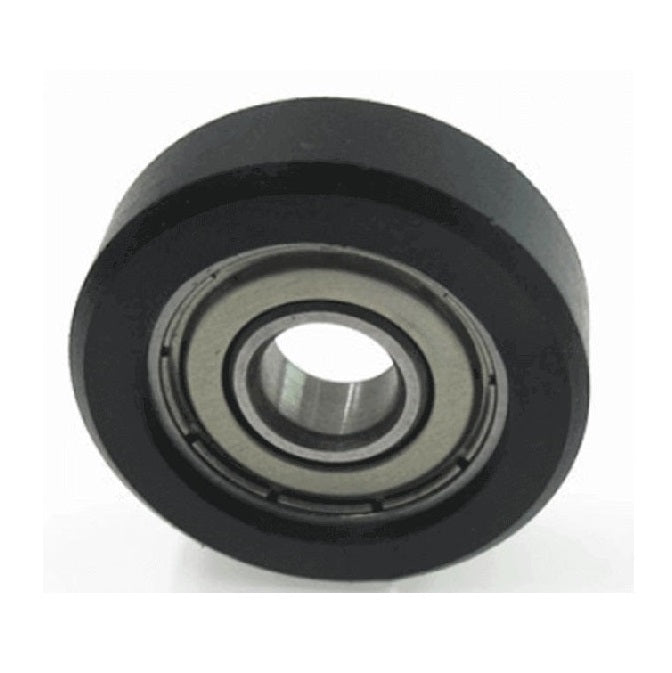

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Pressure Roller with Bearing Rollers - 14x4x4 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Rollers - Pressure Roller with Bearing

Top Level Category: Rollers - Pressure Roller with Bearing - Urethane OD

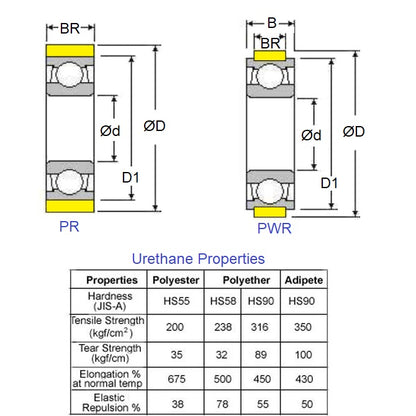

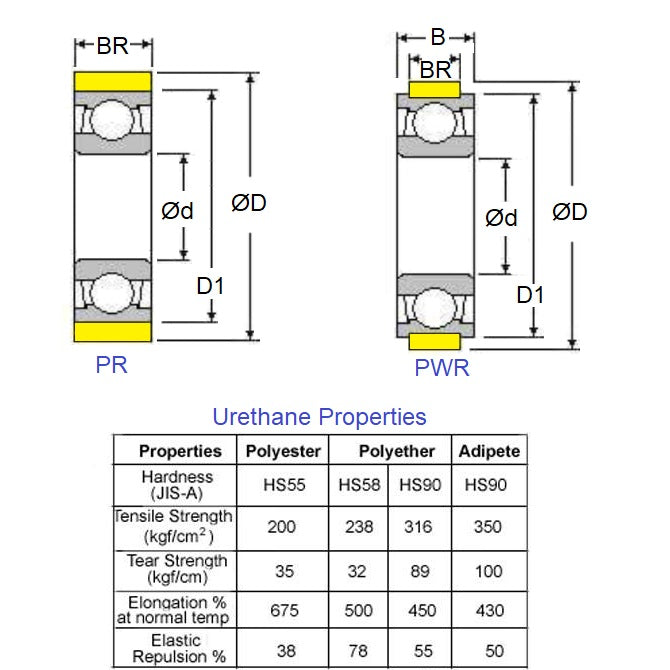

Product Details

OD (D): 14.000mm
+/- 0.1
(14.000mm is 0.551 in.)

Stainless Steel AISI 440C
  • ID (d): 4.000mm
    (4.000mm is 0.157 in.)
  • Width (B): 4.000mm
    (4.000mm is 0.157 in.)
  • Roller Width (BR): 4.000mm
  • Bearing Outside Diameter (D1): 9.000mm
  • Roller Material: 90 Duro (JIS-A) Adipate Based Urethane - Grey
  • Closures: ZZ
  • Bearing Type: Pressure Roller

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • WTW SS4-14RM-ZZ
  • IJK SS4-14RM-ZZ-IM
  • Origin SS4-14RM-ZZ-IM
  • SS414RMZZIM

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
