PR-0140-040-ZZ-AD-55 - Datasheet

MBA

Category Information

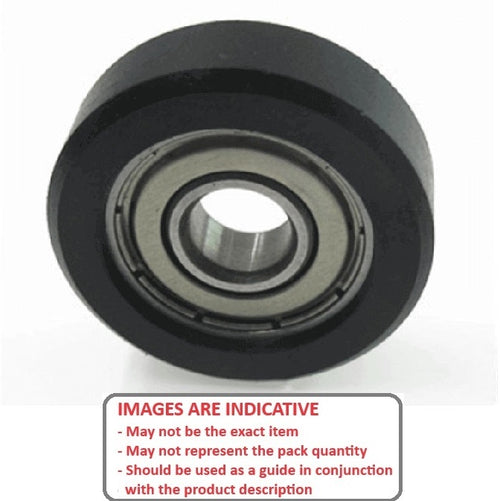

Rollers - Pressure Roller with Bearing - Urethane OD

Urethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.

  • For applications including paper and card dispensing and rolling (eg ATM Machines).

Product Data

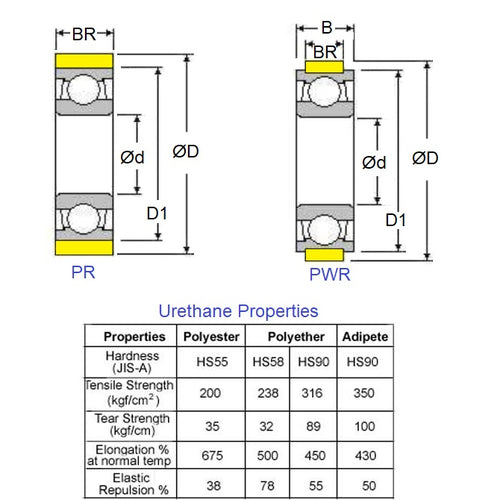

  • OD (D) : 14.000 mm +/- 0.1
    (Equiv. 0.551 in.)
  • ID (d) 4.000 mm
    (Equiv. 0.157 in.)
  • Width (B) 4.000 mm
    (Equiv. 0.157 in.)
  • Roller Width (BR) 4.000 mm
  • Bearing Outside Diameter (D1) 9.000 mm
  • Roller Material 90 Duro (JIS-A) Adipate Based Urethane - Grey
  • Closures ZZ
  • Bearing Type Pressure Roller
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WTW SS4-14RM-ZZ
  • IJK SS4-14RM-ZZ-IM
  • Origin SS4-14RM-ZZ-IM
  • SS414RMZZIM
