CB-406-111H-28-6D (Each)
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale7/16 inch Bearing - 11.11x40.64x27.94 mm / 23.62 mm Conveyor Bearings - Stainless Steel 316 Balls and Races - Sold per Each:
Base Category: Bearings - Conveyor
Top Level Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel
Product Details
Hex Bore (A): 11.11mm+ 0.30 / - 0.00
(11.11mm is 0.437 in.)
Stainless Steel 316 Balls and Races
- Hex Bore (A): 11.11mm
+ 0.30 / - 0.00
(11.11mm is 0.437 in.)
- O.D. (B): 40.64mm
+/- 0.080
(40.64mm is 1.6 in.)
- Width (C): 27.94mm
(27.94mm is 1.1 in.)
- Width (D): 23.62mm
- Flange Dia. (E): 45.72mm
- Flange Width (F): 2.54mm
- Max Speed Unloaded: 855RPM
- Dynamic Load: 140Kg
- Static Load: 112Kg

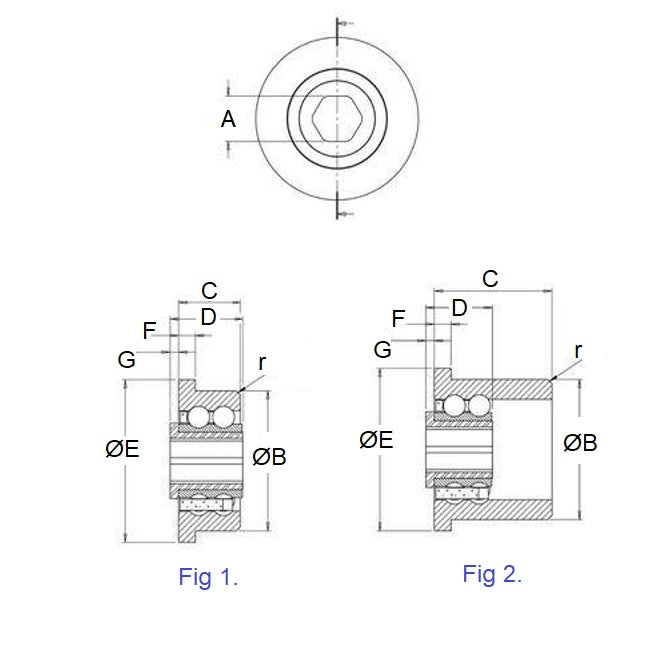

- Figure: Fig 2
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CB406111H286D, CB406111H
