CB-406-111H-28-6D - Datasheet

MBA

Category Information

Bearings - Conveyor - Double Row - Hex Bore Stainless Steel

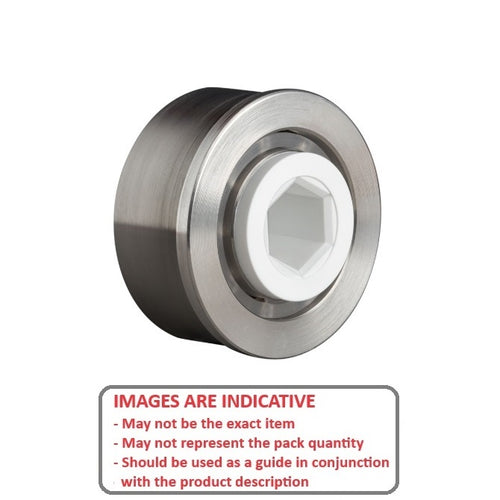

Hex Bore Stainless Steel Double Row Conveyor Bearings. 316 stainless conveyor bearings with plastic cage and plastic hex insert

This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
Both types are ideal for coping with regular washdown.
Loads and Speeds are for reference only. Testing recommended.

Product Data

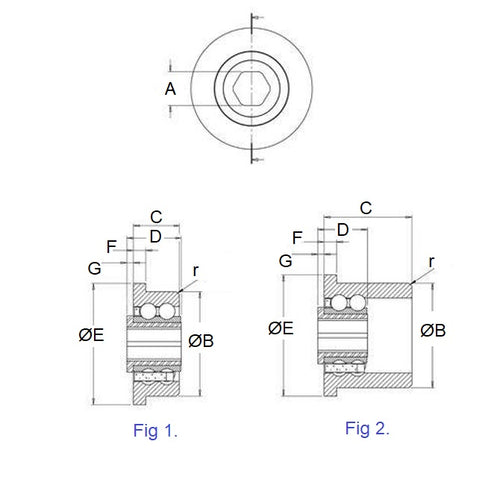

Hex Bore (A) : 11.11 mm _{+ 0.30 / - 0.00}
(Equiv. 0.437 in.)
OD (B) 40.64 mm _{+/- 0.080}
(Equiv. 1.6 in.)
Width (C) 27.94 mm
(Equiv. 1.1 in.)
Width (D) 23.62 mm
Flange Dia. (E) 45.72 mm
Flange Width (F) 2.54 mm
Max Speed Unloaded 855 RPM
Dynamic Load 140 Kg
Static Load 112 Kg
Figure Fig 2
Material Stainless Steel 316 Balls and Races

Country of Origin: US
