S689-MC3-AF12 (Each)

Name: Single Row Ball Bearings - 9x17x4 mm Unflanged - Stainless Steel AISI 440C Bearing - S689-MC3-AF12
Brand: MBA
SKU: S689MC3AF12
Price: 3.68 AUD
Availability: InStock

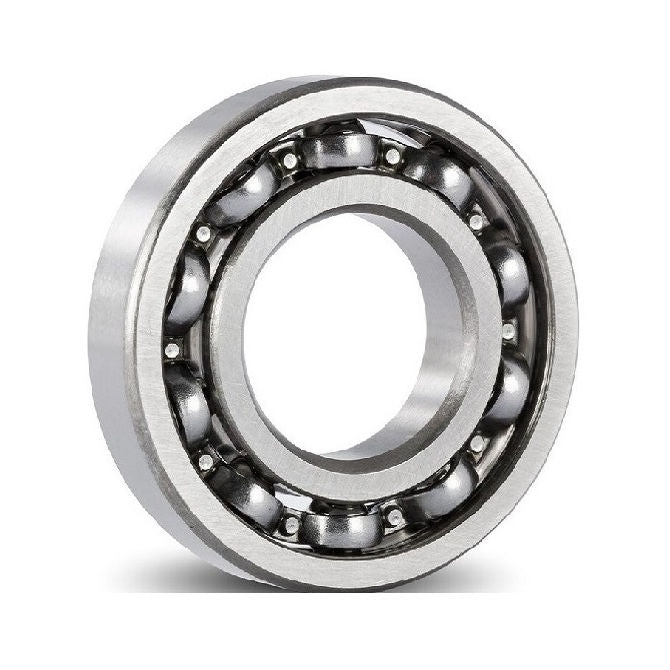

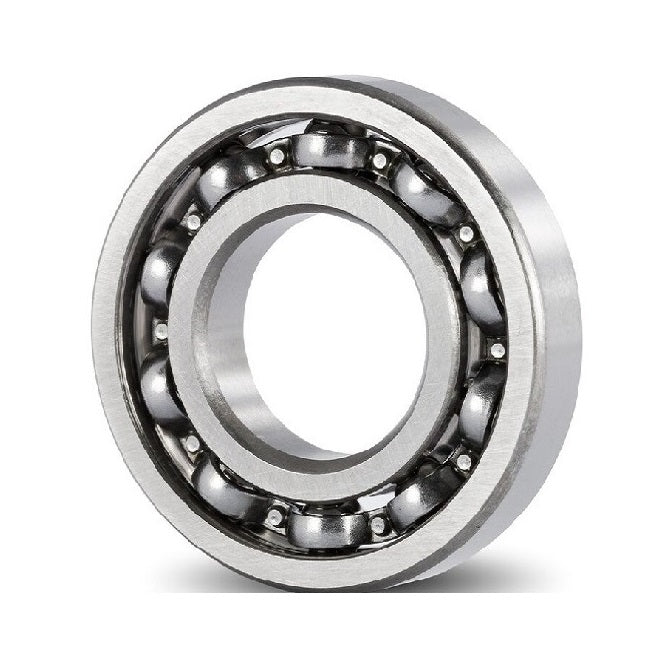

Single Row Ball Bearings - 9x17x4 mm Unflanged - Stainless Steel AISI 440C Bearing

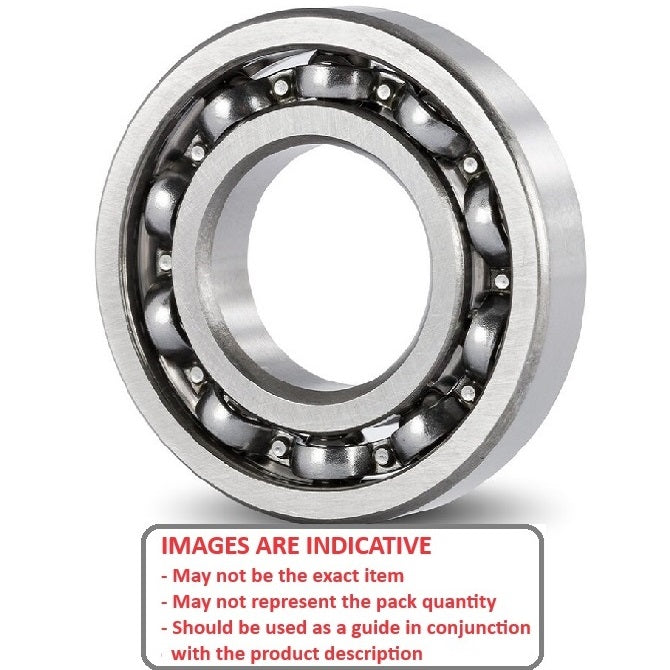

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$3.68 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 31 available now

Order 50 or more
for $3.31 AUD Each

Product Details

Open standard stainless steel bearing

ID (d): 9.000mm
_{+ 0.000 / - 0.0075}
_{(9.000mm is 0.354 in.)}

Stainless Steel AISI 440C

ID (d): 9.000mm
_{+ 0.000 / - 0.0075}
_{(9.000mm is 0.354 in.)}
O.D. (D): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
Width (B): 4.000mm
_{+ 0.000 / - 0.125}
_{(4.000mm is 0.157 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

SS689MC3AF12 689
SSISO 689
Similar Part 689H
Stainless 689MC3AF12
Stainless 689-MC3-AF12
GRW S689
GRW SS689
NTN® SS689
Similar Part SS689
RMB® UL917X
ADR WX9
Similar Part WX9
SS-L1790
SSL1790
DD-L1790
DDL1790
689BASIC

Used for

RC Nitro Engine Parts

Associate Electrics® - 90 Degrees Port ABC - 0.15 - Bearing

China Shanghai® - CS Old - 46 - Bearing

China Shanghai® - CS049 - Replacement Rear Bearing

China Shanghai® - CSG - 60 - Bearing

Cyclone® - 7 All Models - Bearing

Cyclone® - 90 All Models - Bearing

Force® - Side Exhaust - 0.12 - Bearing

Force® - Side Exhaust - 0.21 - Bearing

G-Mark - 45 All Models - Bearing

Kyosho® - GS15R - 61 - Bearing

Kyosho® - GT - 21 - Bearing

Mac® - 21 - Bearing

Megatech® - 1.4 All Models - Bearing

Megatech® - M-16 - 48 - Bearing

Ofna® - 15 2.5CC All Models - Bearing

OS Engines® - 12 CZR - 2 Stroke - Replacement Rear Bearing

OS Engines® - 12 CZZ - 2 Stroke - Replacement Rear Bearing

OS Engines® - 15 CVA - 2 Stroke - Replacement Rear Bearing

OS Engines® - CV - 120 - Bearing

OS Engines® - CV - 3500 - Bearing

OS Engines® - CV - 46 - Bearing

OS Engines® - CV Hyper With 10A - 12 - Bearing

OS Engines® - CV-A - 15 - Bearing

OS Engines® - CV-M - 15 - Bearing

OS Engines® - CV-MX - 15 - Bearing

OS Engines® - CVX - 12 - Bearing

OS Engines® - CVX - 15 - Bearing

OS Engines® - CVX Hyper With 10A - 12 - Bearing

OS Engines® - CZ-1 and 2 - 15 - Bearing

OS Engines® - CZ-A - 15 - Bearing

OS Engines® - CZ-R - 12 - Bearing

OS Engines® - CZ-Z - 12 - Bearing

OS Engines® - CZ-Z Recoil - 12 - Bearing

Super Tigre® - GH - 75 - Bearing

Thunder Tiger® - 60 All Models - Bearing

Thunder Tiger® - Pro - 12 - Bearing

Thunder Tiger® - Pro - 21 - Bearing

Thunder Tiger® - Pro - 90 - Bearing

Tower® - 15BB ABC - 21 - Bearing

Traxxas® - 25 All Models - Bearing
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
