MMI-0998-M (Each)

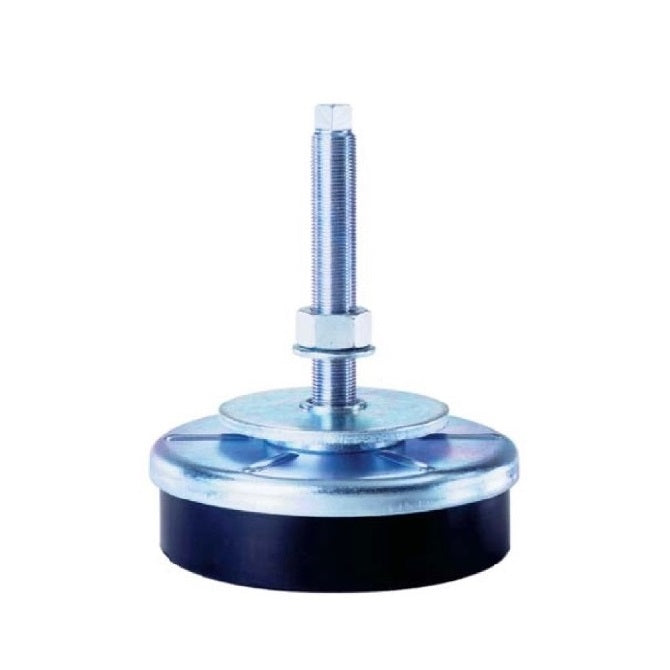

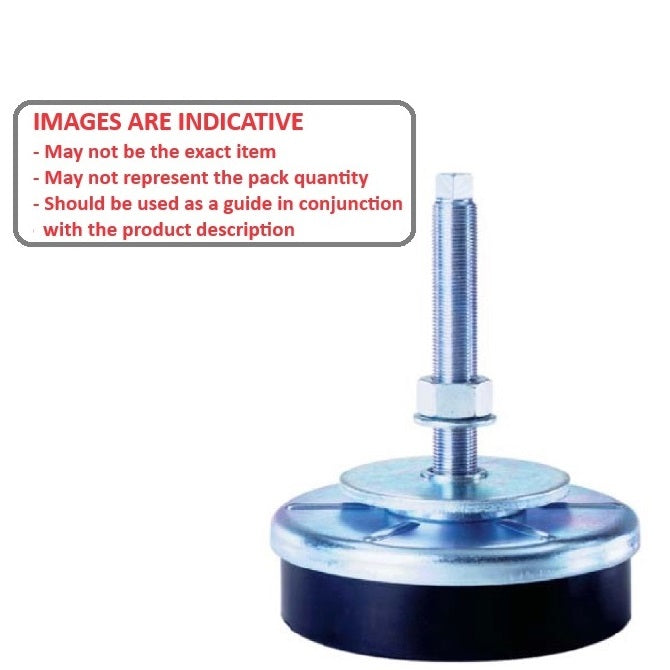

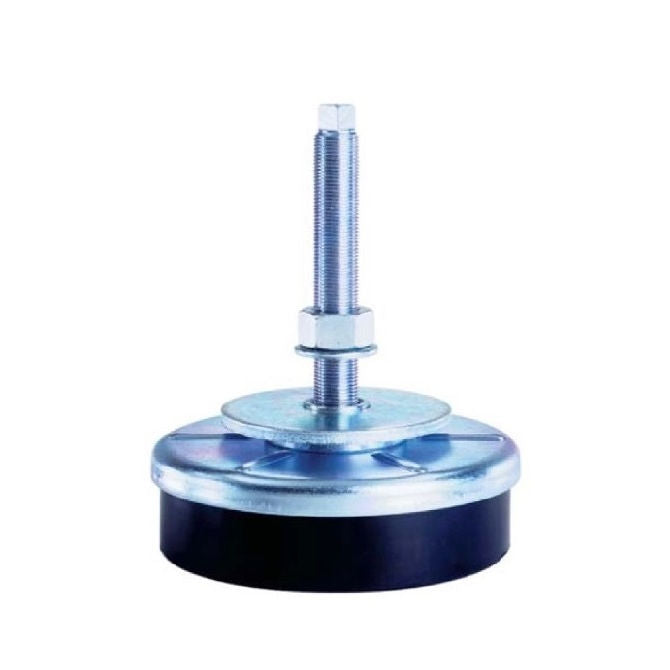

Machinery Industrial Mounts - 997.9 Kg - 120.65x45.974 mm Medium Duty - Rubber and Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Cylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $397.67 AUD Each
997.9 Kg - 120.65x45.974 mm Machinery Industrial Mounts - Rubber and Steel - Sold per Each:
Base Category: Mounts - Machinery Industrial
Top Level Category: Mounts - Machinery Industrial - Medium Duty
Product Details
Load Capacity: 997.9KgRubber and Steel

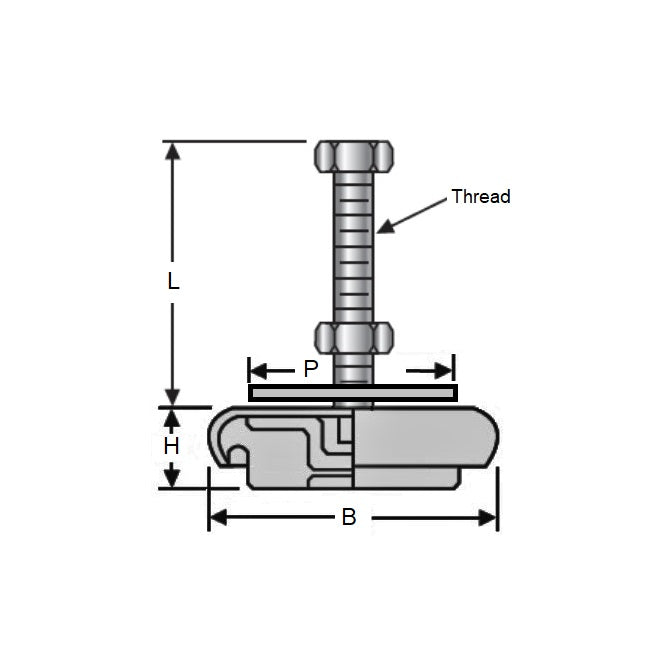

- Load Capacity: 997.9Kg
- Base Diameter: 120.650mm
(120.650mm is 4.75 in.)
- Overall Length: 45.974mm
(45.974mm is 1.81 in.)
- Height: 128.524mm
- Adjustment: 12.954mm
- Thread Size: M16.0 x 1.50 (16.0mm)
- Thread Length: 120.650mm
- Non-Impact Machinery Load: 997.902Kg
- 125 Strokes per Min Load: 399.161Kg
- 180 Strokes per Min Load: 349.266Kg
- 200 Strokes per Min Load: 249.476Kg
- Injection Molding: 358.338Kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® RY-27002
- RY27002
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MMI0998M, MMI0998
