MMI-0998-M - Datasheet
MBA
Category Information

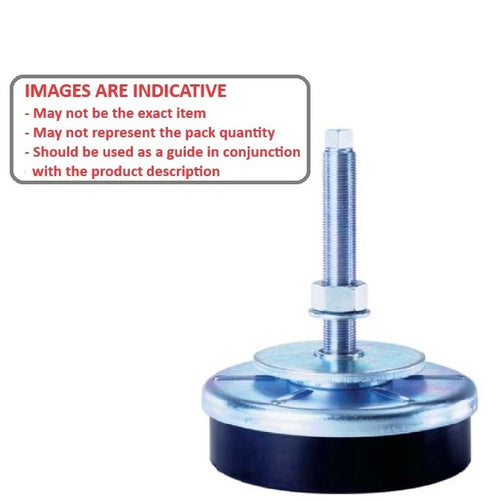

Mounts - Machinery Industrial - Medium DutyMedium Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.

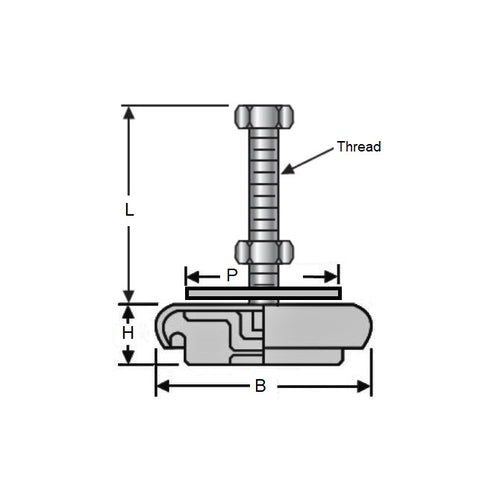

Product Data
- Load Capacity : 997.9 Kg
- Base Diameter
120.650
mm
(Equiv. 4.75 in.) - Overall Length
45.974
mm
(Equiv. 1.81 in.) - Height 128.524 mm
- Adjustment 12.954 mm
- Thread Size M16.0 x 1.50 (16.0mm)
- Thread Length 120.650 mm
- Non-Impact Machinery Load 997.902 Kg
- 125 Strokes per Min Load 399.161 Kg
- 180 Strokes per Min Load 349.266 Kg
- 200 Strokes per Min Load 249.476 Kg
- Injection Molding 358.338 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- RY27002
- RY-27002
