CSC-095-008-06-M (Each)

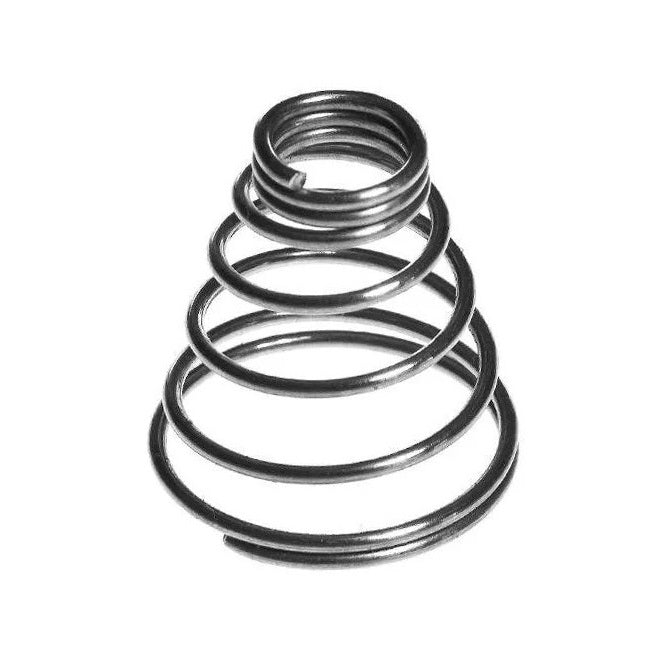

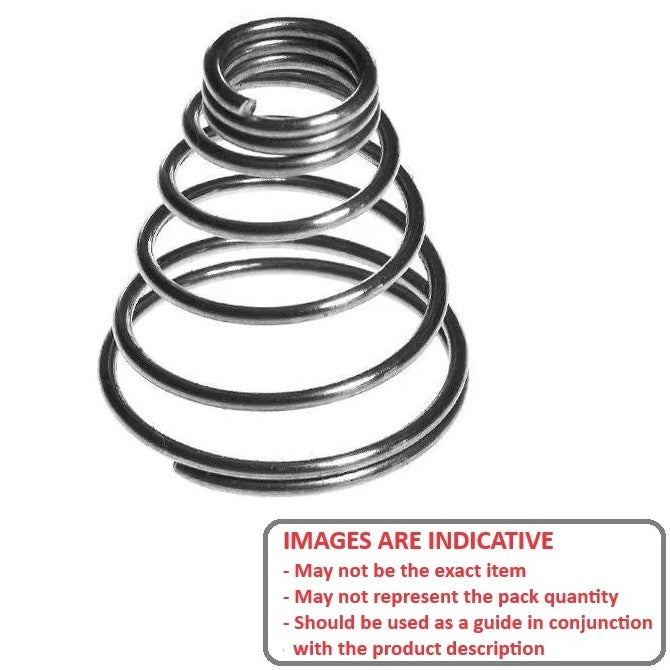

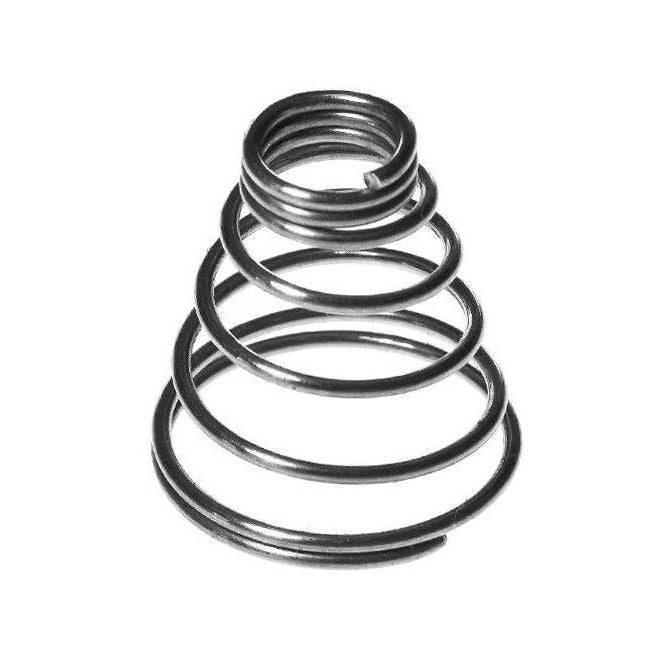

Conical Springs - 9.5x8x4.8 mm - Carbon Spring Steel Music Wire
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleSpings Catalogue PDF
Order 50 or more
for $4.37 AUD Each
Couldn't load pickup availability
3/8x3/16 inch Spring - 9.5x8x4.8 mm Conical Springs - Carbon Spring Steel Music Wire - Sold per Each:
Base Category: Springs - Conical
Top Level Category: Springs - Conical
Product Details

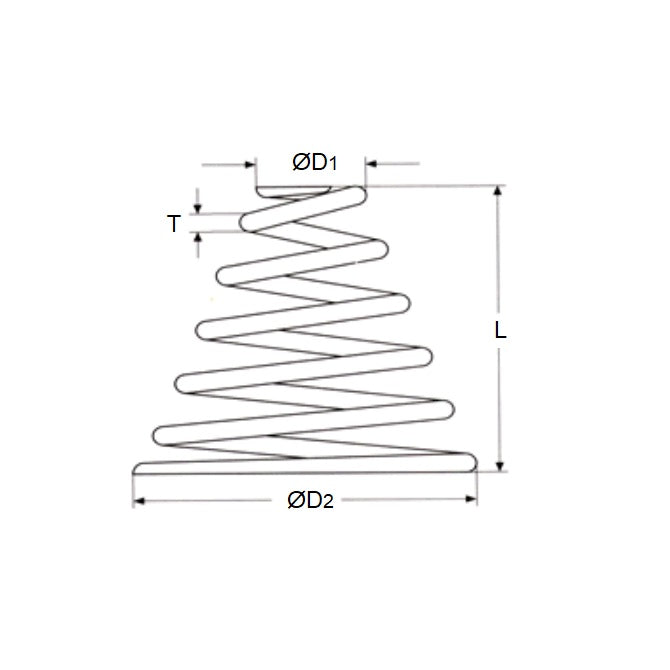

Large End OD: 9.50mm(9.50mm is 0.374 in.)
Carbon Spring Steel Music Wire
- Large End OD: 9.50mm
(9.50mm is 0.374 in.)
- Free Length: 8.0mm
(8.0mm is 0.315 in.)
- Small End OD: 4.8mm
(4.8mm is 0.189 in.)
- Inside Diameter Clearance: 3.6mm
- Wire Thickness: 0.56mm
- Rate: 0.1kg/mm
- Inside Diameter: 3.6mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® CX-2
- CX2
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CSC09500806M, CSC095008
