Collection: Springs - Conical

Springs -> Conical

There are 52 products in the sub-categories of Springs - Conical. Scroll down or follow the link to Springs - Conical in the products table to see all these items combined into a handy table with filters.

Category Details

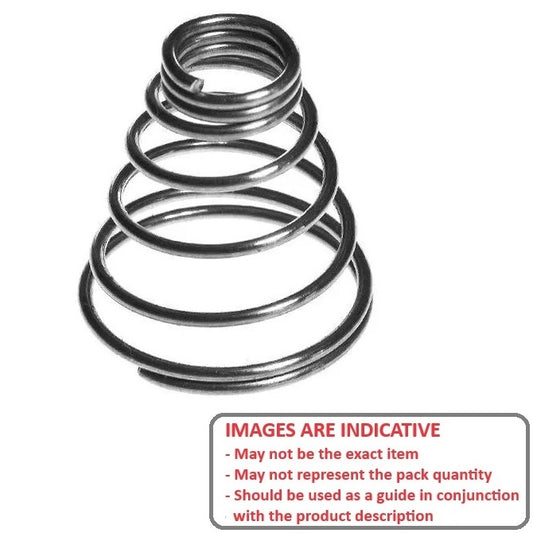

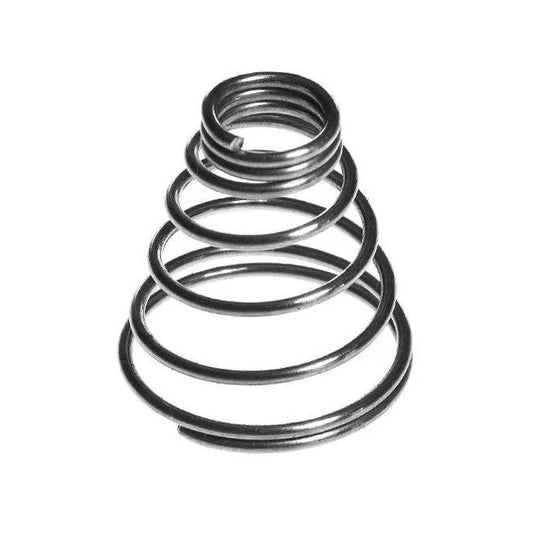

A selection of Conical Springs. Conical 302 Stainless steel springs

Solid height lower than a standard compression spring due to the conical shape
Ends are closed
Starting rate is the same as the kg/mm rate

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spings Catalogue PDF

A more concise listing may be found in the Springs - Conical category on the Small Parts & Bearings online store.

Large End OD	Free Length	Small End OD	Inside Diameter Clearance	Wire Thickness	Rate
Large End OD 6.40 mm (Equiv. 0.252 in.)	Free Length 4.0 mm (Equiv. 0.157 in.)	Small End OD 5.2 mm (Equiv. 0.205 in.)	Inside Diameter Clearance 4.5 mm	Wire Thickness 0.33 mm	Rate 0.1 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 4.5 mm
Part Number: CSC-064-004-03-M Conical Springs - 6.4x4x5.2 mm - Carbon Spring Steel Music Wire 22 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 22 Available Now. Backorder if more than 22.
Large End OD	Free Length	Small End OD	Inside Diameter Clearance	Indicative Image
Large End OD 6.40 mm (Equiv. 0.252 in.)	Free Length 4.0 mm (Equiv. 0.157 in.)	Small End OD 5.2 mm (Equiv. 0.205 in.)	Inside Diameter Clearance 4.5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.33 mm Rate: 0.1 kg/mm Inside Diameter: 4.5 mm
Part Number: CSC-064-004-03-M Conical Springs - 6.4x4x5.2 mm - Carbon Spring Steel Music Wire 22 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 22 Available Now. Backorder if more than 22.
CSC-064-004-03-M --- Conical Springs - 6.4x4x5.2 mm - Carbon Spring Steel Music Wire CSC-064-004-03-M --- Conical Springs - 6.4x4x5.2 mm - Carbon Spring Steel Music Wire Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 22 Available Now
Large End OD 7.10 mm (Equiv. 0.28 in.)	Free Length 14.3 mm (Equiv. 0.563 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.5 mm	Wire Thickness 0.61 mm	Rate 0.1 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 3.5 mm
Part Number: CSC-071-014-06-M Conical Springs - 7.1x14.3x4.8 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.68 AUD Regular price ~~$4.42 AUD~~ Sale price $3.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 7.10 mm (Equiv. 0.28 in.)	Free Length 14.3 mm (Equiv. 0.563 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.61 mm Rate: 0.1 kg/mm Inside Diameter: 3.5 mm
Part Number: CSC-071-014-06-M Conical Springs - 7.1x14.3x4.8 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.68 AUD Regular price ~~$4.42 AUD~~ Sale price $3.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-071-014-06-M --- Conical Springs - 7.1x14.3x4.8 mm - Carbon Spring Steel Music Wire Sale CSC-071-014-06-M --- Conical Springs - 7.1x14.3x4.8 mm - Carbon Spring Steel Music Wire Regular price $3.68 AUD Regular price ~~$4.42 AUD~~ Sale price $3.68 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 7.50 mm (Equiv. 0.295 in.)	Free Length 17.5 mm (Equiv. 0.689 in.)	Small End OD 5.2 mm (Equiv. 0.205 in.)	Inside Diameter Clearance 3.8 mm	Wire Thickness 0.69 mm	Rate 0.2 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 3.8 mm
Part Number: CSC-075-017-07-M Conical Springs - 7.5x17.5x5.2 mm - Carbon Spring Steel Music Wire 17 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each Quantity Required 17 Available Now. Backorder if more than 17.
Large End OD 7.50 mm (Equiv. 0.295 in.)	Free Length 17.5 mm (Equiv. 0.689 in.)	Small End OD 5.2 mm (Equiv. 0.205 in.)	Inside Diameter Clearance 3.8 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.69 mm Rate: 0.2 kg/mm Inside Diameter: 3.8 mm
Part Number: CSC-075-017-07-M Conical Springs - 7.5x17.5x5.2 mm - Carbon Spring Steel Music Wire 17 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each Quantity Required 17 Available Now. Backorder if more than 17.
CSC-075-017-07-M --- Conical Springs - 7.5x17.5x5.2 mm - Carbon Spring Steel Music Wire CSC-075-017-07-M --- Conical Springs - 7.5x17.5x5.2 mm - Carbon Spring Steel Music Wire Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 17 Available Now
Large End OD 7.90 mm (Equiv. 0.311 in.)	Free Length 23.8 mm (Equiv. 0.937 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 4 mm	Wire Thickness 0.38 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 4 mm
Part Number: CSC-079-024-04-M Conical Springs - 7.9x23.8x4.8 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 7.90 mm (Equiv. 0.311 in.)	Free Length 23.8 mm (Equiv. 0.937 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 4 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.38 mm Rate: 0.0 kg/mm Inside Diameter: 4 mm
Part Number: CSC-079-024-04-M Conical Springs - 7.9x23.8x4.8 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-079-024-04-M --- Conical Springs - 7.9x23.8x4.8 mm - Carbon Spring Steel Music Wire Sale CSC-079-024-04-M --- Conical Springs - 7.9x23.8x4.8 mm - Carbon Spring Steel Music Wire Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 7.90 mm (Equiv. 0.311 in.)	Free Length 23.0 mm (Equiv. 0.906 in.)	Small End OD 5.9 mm (Equiv. 0.232 in.)	Inside Diameter Clearance 4.5 mm	Wire Thickness 0.71 mm	Rate 0.1 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 4.5 mm
Part Number: CSC-079-023-07-M Conical Springs - 7.9x23x5.9 mm - Carbon Spring Steel Music Wire 3 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
Large End OD 7.90 mm (Equiv. 0.311 in.)	Free Length 23.0 mm (Equiv. 0.906 in.)	Small End OD 5.9 mm (Equiv. 0.232 in.)	Inside Diameter Clearance 4.5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.71 mm Rate: 0.1 kg/mm Inside Diameter: 4.5 mm
Part Number: CSC-079-023-07-M Conical Springs - 7.9x23x5.9 mm - Carbon Spring Steel Music Wire 3 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
CSC-079-023-07-M --- Conical Springs - 7.9x23x5.9 mm - Carbon Spring Steel Music Wire CSC-079-023-07-M --- Conical Springs - 7.9x23x5.9 mm - Carbon Spring Steel Music Wire Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 3 Available Now
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 8.0 mm (Equiv. 0.315 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.6 mm	Wire Thickness 0.56 mm	Rate 0.1 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 3.6 mm
Part Number: CSC-095-008-06-M Conical Springs - 9.5x8x4.8 mm - Carbon Spring Steel Music Wire 30 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 8.0 mm (Equiv. 0.315 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.6 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.56 mm Rate: 0.1 kg/mm Inside Diameter: 3.6 mm
Part Number: CSC-095-008-06-M Conical Springs - 9.5x8x4.8 mm - Carbon Spring Steel Music Wire 30 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
CSC-095-008-06-M --- Conical Springs - 9.5x8x4.8 mm - Carbon Spring Steel Music Wire CSC-095-008-06-M --- Conical Springs - 9.5x8x4.8 mm - Carbon Spring Steel Music Wire Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 30 Available Now
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 10.7 mm (Equiv. 0.421 in.)	Small End OD 6.8 mm (Equiv. 0.268 in.)	Inside Diameter Clearance 5 mm	Wire Thickness 0.89 mm	Rate 0.6 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5 mm
Part Number: CSC-095-011-09-M Conical Springs - 9.5x10.7x6.8 mm - Carbon Spring Steel Music Wire 50 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 10.7 mm (Equiv. 0.421 in.)	Small End OD 6.8 mm (Equiv. 0.268 in.)	Inside Diameter Clearance 5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.89 mm Rate: 0.6 kg/mm Inside Diameter: 5 mm
Part Number: CSC-095-011-09-M Conical Springs - 9.5x10.7x6.8 mm - Carbon Spring Steel Music Wire 50 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
CSC-095-011-09-M --- Conical Springs - 9.5x10.7x6.8 mm - Carbon Spring Steel Music Wire CSC-095-011-09-M --- Conical Springs - 9.5x10.7x6.8 mm - Carbon Spring Steel Music Wire Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 50 Available Now
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.6 mm	Wire Thickness 0.56 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 3.6 mm
Part Number: CSC-095-019-06-M Conical Springs - 9.5x19.1x4.8 mm - Carbon Spring Steel Music Wire 45 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each Quantity Required 45 Available Now. Backorder if more than 45.
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 4.8 mm (Equiv. 0.189 in.)	Inside Diameter Clearance 3.6 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.56 mm Rate: 0.0 kg/mm Inside Diameter: 3.6 mm
Part Number: CSC-095-019-06-M Conical Springs - 9.5x19.1x4.8 mm - Carbon Spring Steel Music Wire 45 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each Quantity Required 45 Available Now. Backorder if more than 45.
CSC-095-019-06-M --- Conical Springs - 9.5x19.1x4.8 mm - Carbon Spring Steel Music Wire CSC-095-019-06-M --- Conical Springs - 9.5x19.1x4.8 mm - Carbon Spring Steel Music Wire Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 45 Available Now
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 5.6 mm (Equiv. 0.22 in.)	Inside Diameter Clearance 4.8 mm	Wire Thickness 0.38 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 4.8 mm
Part Number: CSC-095-022-04-M Conical Springs - 9.5x22.2x5.6 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.05 AUD Regular price ~~$4.85 AUD~~ Sale price $4.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 5.6 mm (Equiv. 0.22 in.)	Inside Diameter Clearance 4.8 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.38 mm Rate: 0.0 kg/mm Inside Diameter: 4.8 mm
Part Number: CSC-095-022-04-M Conical Springs - 9.5x22.2x5.6 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.05 AUD Regular price ~~$4.85 AUD~~ Sale price $4.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-095-022-04-M --- Conical Springs - 9.5x22.2x5.6 mm - Carbon Spring Steel Music Wire Sale CSC-095-022-04-M --- Conical Springs - 9.5x22.2x5.6 mm - Carbon Spring Steel Music Wire Regular price $4.05 AUD Regular price ~~$4.85 AUD~~ Sale price $4.05 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 28.6 mm (Equiv. 1.126 in.)	Small End OD 6.4 mm (Equiv. 0.252 in.)	Inside Diameter Clearance 5.2 mm	Wire Thickness 0.56 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5.2 mm
Part Number: CSC-095-029-06-M (5 Pcs) Conical Springs - 9.5x28.6x6.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Large End OD 9.50 mm (Equiv. 0.374 in.)	Free Length 28.6 mm (Equiv. 1.126 in.)	Small End OD 6.4 mm (Equiv. 0.252 in.)	Inside Diameter Clearance 5.2 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.56 mm Rate: 0.0 kg/mm Inside Diameter: 5.2 mm
Part Number: CSC-095-029-06-M (5 Pcs) Conical Springs - 9.5x28.6x6.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CSC-095-029-06-M (5 Pcs) --- Conical Springs - 9.5x28.6x6.4 mm - Carbon Spring Steel Music Wire Sale CSC-095-029-06-M (5 Pcs) --- Conical Springs - 9.5x28.6x6.4 mm - Carbon Spring Steel Music Wire Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 9.90 mm (Equiv. 0.39 in.)	Free Length 9.6 mm (Equiv. 0.378 in.)	Small End OD 8.5 mm (Equiv. 0.335 in.)	Inside Diameter Clearance 7.6 mm	Wire Thickness 0.46 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 7.6 mm
Part Number: CSC-099-010-05-M Conical Springs - 9.9x9.6x8.5 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 9.90 mm (Equiv. 0.39 in.)	Free Length 9.6 mm (Equiv. 0.378 in.)	Small End OD 8.5 mm (Equiv. 0.335 in.)	Inside Diameter Clearance 7.6 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.46 mm Rate: 0.0 kg/mm Inside Diameter: 7.6 mm
Part Number: CSC-099-010-05-M Conical Springs - 9.9x9.6x8.5 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-099-010-05-M --- Conical Springs - 9.9x9.6x8.5 mm - Carbon Spring Steel Music Wire Sale CSC-099-010-05-M --- Conical Springs - 9.9x9.6x8.5 mm - Carbon Spring Steel Music Wire Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 5.6 mm (Equiv. 0.22 in.)	Small End OD 7.9 mm (Equiv. 0.311 in.)	Inside Diameter Clearance 6.9 mm	Wire Thickness 0.51 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 6.9 mm
Part Number: CSC-103-006-05-M Conical Springs - 10.3x5.6x7.9 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 5.6 mm (Equiv. 0.22 in.)	Small End OD 7.9 mm (Equiv. 0.311 in.)	Inside Diameter Clearance 6.9 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.51 mm Rate: 0.0 kg/mm Inside Diameter: 6.9 mm
Part Number: CSC-103-006-05-M Conical Springs - 10.3x5.6x7.9 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-103-006-05-M --- Conical Springs - 10.3x5.6x7.9 mm - Carbon Spring Steel Music Wire Sale CSC-103-006-05-M --- Conical Springs - 10.3x5.6x7.9 mm - Carbon Spring Steel Music Wire Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 12.7 mm (Equiv. 0.5 in.)	Small End OD 7.9 mm (Equiv. 0.311 in.)	Inside Diameter Clearance 6.4 mm	Wire Thickness 0.76 mm	Rate 0.1 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 6.4 mm
Part Number: CSC-103-013-08-M Conical Springs - 10.3x12.7x7.9 mm - Carbon Spring Steel Music Wire 29 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each Quantity Required 29 Available Now. Backorder if more than 29.
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 12.7 mm (Equiv. 0.5 in.)	Small End OD 7.9 mm (Equiv. 0.311 in.)	Inside Diameter Clearance 6.4 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.76 mm Rate: 0.1 kg/mm Inside Diameter: 6.4 mm
Part Number: CSC-103-013-08-M Conical Springs - 10.3x12.7x7.9 mm - Carbon Spring Steel Music Wire 29 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each Quantity Required 29 Available Now. Backorder if more than 29.
CSC-103-013-08-M --- Conical Springs - 10.3x12.7x7.9 mm - Carbon Spring Steel Music Wire CSC-103-013-08-M --- Conical Springs - 10.3x12.7x7.9 mm - Carbon Spring Steel Music Wire Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per 29 Available Now
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 10.3 mm (Equiv. 0.406 in.)	Small End OD 6.4 mm (Equiv. 0.252 in.)	Inside Diameter Clearance 5.6 mm	Wire Thickness 0.58 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5.6 mm
Part Number: CSC-103-010-06-M Conical Springs - 10.3x10.3x6.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $9.68 AUD Regular price ~~$16.10 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 10.3 mm (Equiv. 0.406 in.)	Small End OD 6.4 mm (Equiv. 0.252 in.)	Inside Diameter Clearance 5.6 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.58 mm Rate: 0.0 kg/mm Inside Diameter: 5.6 mm
Part Number: CSC-103-010-06-M Conical Springs - 10.3x10.3x6.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $9.68 AUD Regular price ~~$16.10 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-103-010-06-M --- Conical Springs - 10.3x10.3x6.4 mm - Carbon Spring Steel Music Wire Sale CSC-103-010-06-M --- Conical Springs - 10.3x10.3x6.4 mm - Carbon Spring Steel Music Wire Regular price $9.68 AUD Regular price ~~$16.10 AUD~~ Sale price $9.68 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 6.1 mm	Wire Thickness 0.71 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 6.1 mm
Part Number: CSC-103-019-07-M Conical Springs - 10.3x19.1x7.5 mm - Carbon Spring Steel Music Wire 7 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each Quantity Required 7 Available Now. Backorder if more than 7.
Large End OD 10.30 mm (Equiv. 0.406 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 6.1 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.71 mm Rate: 0.0 kg/mm Inside Diameter: 6.1 mm
Part Number: CSC-103-019-07-M Conical Springs - 10.3x19.1x7.5 mm - Carbon Spring Steel Music Wire 7 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each Quantity Required 7 Available Now. Backorder if more than 7.
CSC-103-019-07-M --- Conical Springs - 10.3x19.1x7.5 mm - Carbon Spring Steel Music Wire CSC-103-019-07-M --- Conical Springs - 10.3x19.1x7.5 mm - Carbon Spring Steel Music Wire Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 7 Available Now
Large End OD 10.70 mm (Equiv. 0.421 in.)	Free Length 11.1 mm (Equiv. 0.437 in.)	Small End OD 6.8 mm (Equiv. 0.268 in.)	Inside Diameter Clearance 5.7 mm	Wire Thickness 0.51 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5.7 mm
Part Number: CSC-107-011-05-M Conical Springs - 10.7x11.1x6.8 mm - Carbon Spring Steel Music Wire 9 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
Large End OD 10.70 mm (Equiv. 0.421 in.)	Free Length 11.1 mm (Equiv. 0.437 in.)	Small End OD 6.8 mm (Equiv. 0.268 in.)	Inside Diameter Clearance 5.7 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.51 mm Rate: 0.0 kg/mm Inside Diameter: 5.7 mm
Part Number: CSC-107-011-05-M Conical Springs - 10.7x11.1x6.8 mm - Carbon Spring Steel Music Wire 9 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
CSC-107-011-05-M --- Conical Springs - 10.7x11.1x6.8 mm - Carbon Spring Steel Music Wire CSC-107-011-05-M --- Conical Springs - 10.7x11.1x6.8 mm - Carbon Spring Steel Music Wire Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 9 Available Now
Large End OD 10.70 mm (Equiv. 0.421 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 8.3 mm (Equiv. 0.327 in.)	Inside Diameter Clearance 7.2 mm	Wire Thickness 0.56 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 7.2 mm
Part Number: CSC-107-019-06-M Conical Springs - 10.7x19.1x8.3 mm - Carbon Spring Steel Music Wire 6 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $4.23 AUD Regular price ~~$7.50 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
Large End OD 10.70 mm (Equiv. 0.421 in.)	Free Length 19.1 mm (Equiv. 0.752 in.)	Small End OD 8.3 mm (Equiv. 0.327 in.)	Inside Diameter Clearance 7.2 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.56 mm Rate: 0.0 kg/mm Inside Diameter: 7.2 mm
Part Number: CSC-107-019-06-M Conical Springs - 10.7x19.1x8.3 mm - Carbon Spring Steel Music Wire 6 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $4.23 AUD Regular price ~~$7.50 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
CSC-107-019-06-M --- Conical Springs - 10.7x19.1x8.3 mm - Carbon Spring Steel Music Wire Sale CSC-107-019-06-M --- Conical Springs - 10.7x19.1x8.3 mm - Carbon Spring Steel Music Wire Regular price $4.23 AUD Regular price ~~$7.50 AUD~~ Sale price $4.23 AUD Unit price per 6 Available Now Sale
Large End OD 11.10 mm (Equiv. 0.437 in.)	Free Length 6.4 mm (Equiv. 0.252 in.)	Small End OD 8.7 mm (Equiv. 0.343 in.)	Inside Diameter Clearance 6.5 mm	Wire Thickness 1.09 mm	Rate 1.2 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 6.5 mm
Part Number: CSC-111-006-11-M Conical Springs - 11.1x6.4x8.7 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $50.05 AUD Regular price ~~$60.05 AUD~~ Sale price $50.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 11.10 mm (Equiv. 0.437 in.)	Free Length 6.4 mm (Equiv. 0.252 in.)	Small End OD 8.7 mm (Equiv. 0.343 in.)	Inside Diameter Clearance 6.5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 1.09 mm Rate: 1.2 kg/mm Inside Diameter: 6.5 mm
Part Number: CSC-111-006-11-M Conical Springs - 11.1x6.4x8.7 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $50.05 AUD Regular price ~~$60.05 AUD~~ Sale price $50.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-111-006-11-M --- Conical Springs - 11.1x6.4x8.7 mm - Carbon Spring Steel Music Wire Sale CSC-111-006-11-M --- Conical Springs - 11.1x6.4x8.7 mm - Carbon Spring Steel Music Wire Regular price $50.05 AUD Regular price ~~$60.05 AUD~~ Sale price $50.05 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 11.10 mm (Equiv. 0.437 in.)	Free Length 15.1 mm (Equiv. 0.594 in.)	Small End OD 9.1 mm (Equiv. 0.358 in.)	Inside Diameter Clearance 7.3 mm	Wire Thickness 0.89 mm	Rate 0.3 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 7.3 mm
Part Number: CSC-111-015-09-M Conical Springs - 11.1x15.1x9.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 11.10 mm (Equiv. 0.437 in.)	Free Length 15.1 mm (Equiv. 0.594 in.)	Small End OD 9.1 mm (Equiv. 0.358 in.)	Inside Diameter Clearance 7.3 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.89 mm Rate: 0.3 kg/mm Inside Diameter: 7.3 mm
Part Number: CSC-111-015-09-M Conical Springs - 11.1x15.1x9.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-111-015-09-M --- Conical Springs - 11.1x15.1x9.1 mm - Carbon Spring Steel Music Wire Sale CSC-111-015-09-M --- Conical Springs - 11.1x15.1x9.1 mm - Carbon Spring Steel Music Wire Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 11.90 mm (Equiv. 0.469 in.)	Free Length 14.3 mm (Equiv. 0.563 in.)	Small End OD 7.1 mm (Equiv. 0.28 in.)	Inside Diameter Clearance 6.3 mm	Wire Thickness 0.41 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 6.3 mm
Part Number: CSC-119-014-04-M Conical Springs - 11.9x14.3x7.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 11.90 mm (Equiv. 0.469 in.)	Free Length 14.3 mm (Equiv. 0.563 in.)	Small End OD 7.1 mm (Equiv. 0.28 in.)	Inside Diameter Clearance 6.3 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.41 mm Rate: 0.0 kg/mm Inside Diameter: 6.3 mm
Part Number: CSC-119-014-04-M Conical Springs - 11.9x14.3x7.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-119-014-04-M --- Conical Springs - 11.9x14.3x7.1 mm - Carbon Spring Steel Music Wire CSC-119-014-04-M --- Conical Springs - 11.9x14.3x7.1 mm - Carbon Spring Steel Music Wire Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Out of stock! Backorder Now
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 12.7 mm (Equiv. 0.5 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 5.5 mm	Wire Thickness 1.02 mm	Rate 0.5 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5.5 mm
Part Number: CSC-123-013-10-M Conical Springs - 12.3x12.7x7.5 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.59 AUD Regular price ~~$4.31 AUD~~ Sale price $3.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 12.7 mm (Equiv. 0.5 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 5.5 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 1.02 mm Rate: 0.5 kg/mm Inside Diameter: 5.5 mm
Part Number: CSC-123-013-10-M Conical Springs - 12.3x12.7x7.5 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.59 AUD Regular price ~~$4.31 AUD~~ Sale price $3.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-123-013-10-M --- Conical Springs - 12.3x12.7x7.5 mm - Carbon Spring Steel Music Wire Sale CSC-123-013-10-M --- Conical Springs - 12.3x12.7x7.5 mm - Carbon Spring Steel Music Wire Regular price $3.59 AUD Regular price ~~$4.31 AUD~~ Sale price $3.59 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 4.4 mm (Equiv. 0.173 in.)	Inside Diameter Clearance 3.2 mm	Wire Thickness 0.58 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 3.2 mm
Part Number: CSC-123-022-06-M Conical Springs - 12.3x22.2x4.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.77 AUD Regular price ~~$4.53 AUD~~ Sale price $3.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 4.4 mm (Equiv. 0.173 in.)	Inside Diameter Clearance 3.2 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.58 mm Rate: 0.0 kg/mm Inside Diameter: 3.2 mm
Part Number: CSC-123-022-06-M Conical Springs - 12.3x22.2x4.4 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $3.77 AUD Regular price ~~$4.53 AUD~~ Sale price $3.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-123-022-06-M --- Conical Springs - 12.3x22.2x4.4 mm - Carbon Spring Steel Music Wire Sale CSC-123-022-06-M --- Conical Springs - 12.3x22.2x4.4 mm - Carbon Spring Steel Music Wire Regular price $3.77 AUD Regular price ~~$4.53 AUD~~ Sale price $3.77 AUD Unit price per Out of stock! Backorder Now Sale
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 28.6 mm (Equiv. 1.126 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 5.4 mm	Wire Thickness 1.04 mm	Rate 0.2 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 5.4 mm
Part Number: CSC-123-029-10-M Conical Springs - 12.3x28.6x7.5 mm - Carbon Spring Steel Music Wire 1 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Large End OD 12.30 mm (Equiv. 0.484 in.)	Free Length 28.6 mm (Equiv. 1.126 in.)	Small End OD 7.5 mm (Equiv. 0.295 in.)	Inside Diameter Clearance 5.4 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 1.04 mm Rate: 0.2 kg/mm Inside Diameter: 5.4 mm
Part Number: CSC-123-029-10-M Conical Springs - 12.3x28.6x7.5 mm - Carbon Spring Steel Music Wire 1 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
CSC-123-029-10-M --- Conical Springs - 12.3x28.6x7.5 mm - Carbon Spring Steel Music Wire CSC-123-029-10-M --- Conical Springs - 12.3x28.6x7.5 mm - Carbon Spring Steel Music Wire Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 1 Available Now
Large End OD 14.30 mm (Equiv. 0.563 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 11.1 mm (Equiv. 0.437 in.)	Inside Diameter Clearance 10.3 mm	Wire Thickness 0.43 mm	Rate 0.0 kg/mm
Material: Carbon Spring Steel Music Wire Inside Diameter: 10.3 mm
Part Number: CSC-143-022-04-M Conical Springs - 14.3x22.2x11.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Large End OD 14.30 mm (Equiv. 0.563 in.)	Free Length 22.2 mm (Equiv. 0.874 in.)	Small End OD 11.1 mm (Equiv. 0.437 in.)	Inside Diameter Clearance 10.3 mm
Material: Carbon Spring Steel Music Wire Wire Thickness: 0.43 mm Rate: 0.0 kg/mm Inside Diameter: 10.3 mm
Part Number: CSC-143-022-04-M Conical Springs - 14.3x22.2x11.1 mm - Carbon Spring Steel Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CSC-143-022-04-M --- Conical Springs - 14.3x22.2x11.1 mm - Carbon Spring Steel Music Wire Sale CSC-143-022-04-M --- Conical Springs - 14.3x22.2x11.1 mm - Carbon Spring Steel Music Wire Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Springs - Conical

Category Details

Filter

Filter

Subscribe to our emails
