LYP-Q2-095-064-S4

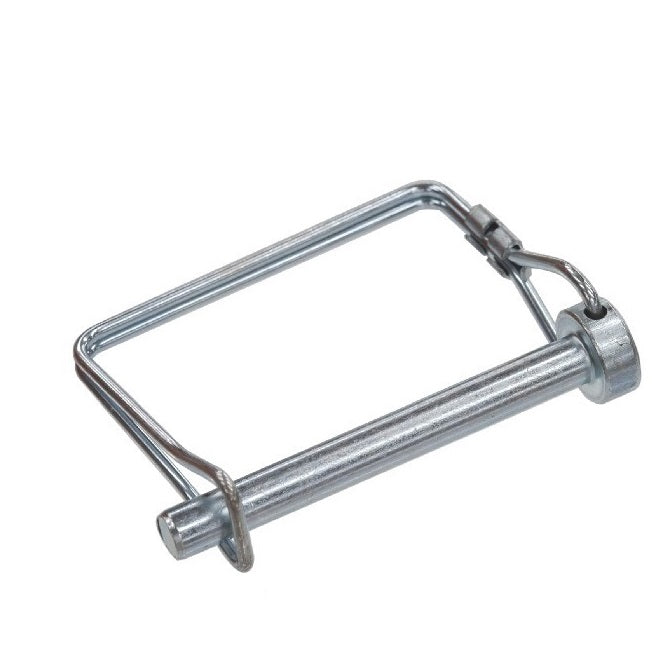

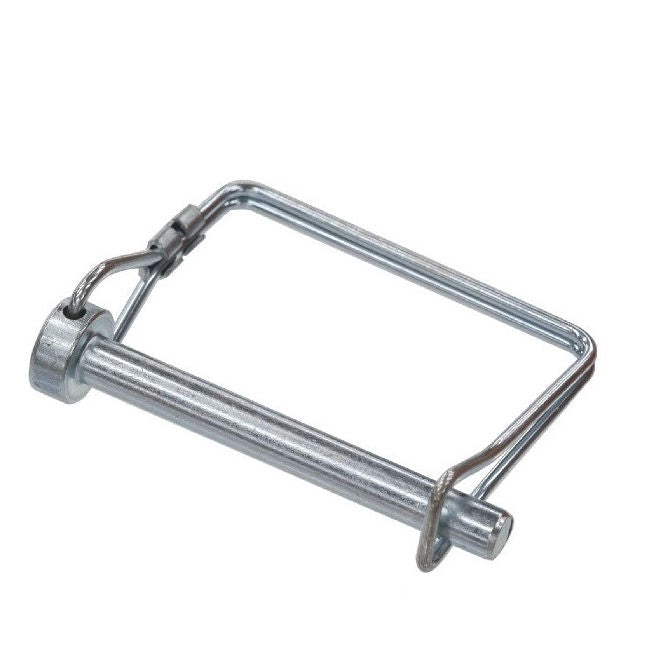

Wire Lock Lynch Pins - 9.53x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin

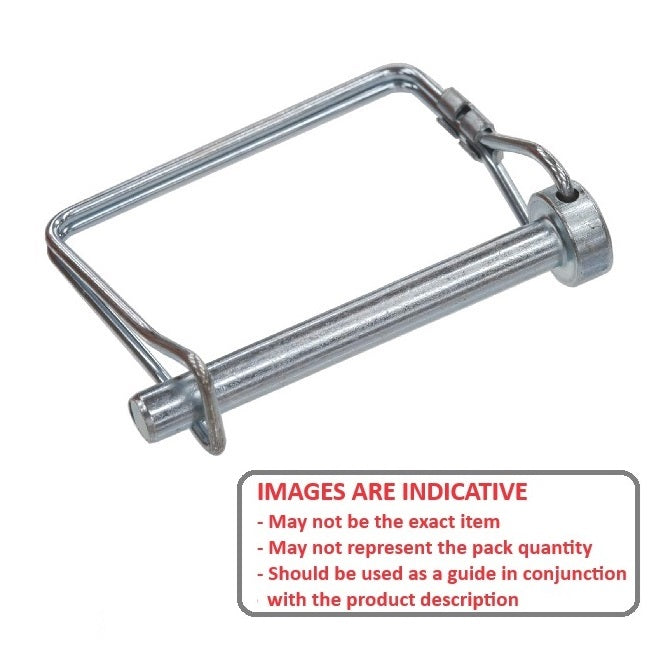

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Wire Lock Lynch Pins - 9.53x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Price:
$11.32 AUD
$13.58 AUD $11.32 AUD
Each
Backorder
Order 50 or more for $10.19 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 22, 2025

Base Category: Pins - Wire Lock Lynch

Top Level Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel

Product Details


Additional stock available from USA subject to Prior Sale = 5835

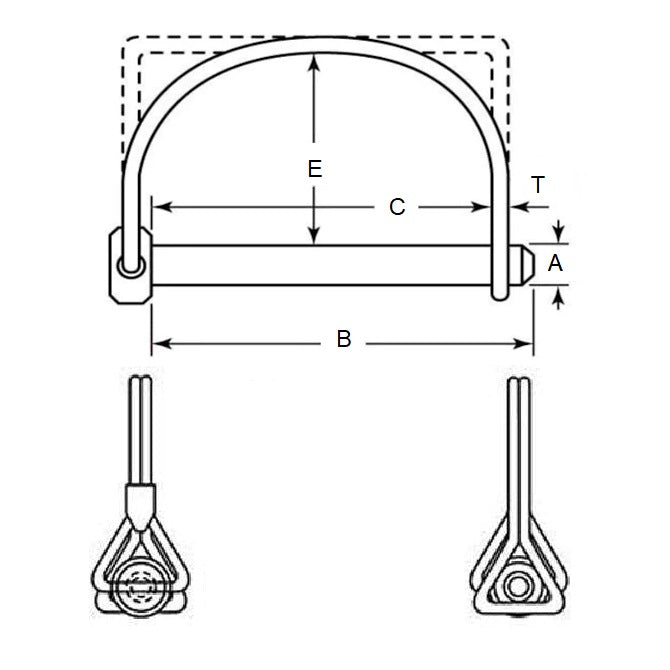

Pin Diameter (A): 9.53mm
- 0.051 / - 0.178
(9.53mm is 0.375 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Pin Diameter (A): 9.53mm
    - 0.051 / - 0.178
    (9.53mm is 0.375 in.)
  • Grip Length (C): 63.50mm
    + 0.00 / - 6.35
    (63.50mm is 2.5 in.)
  • Wire Thickness (T): 2.3mm
    (2.3mm is 0.091 in.)
  • Clearance To Wire (E): 38.1mm
  • Pin Length (B): 69.9mm
  • Weight Per Piece: 63g
  • Finish: Passivated

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor SNAPS-375-2500S
  • SNAPS3752500S

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
